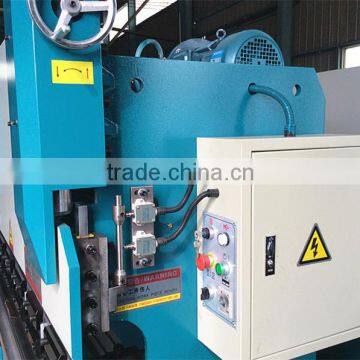

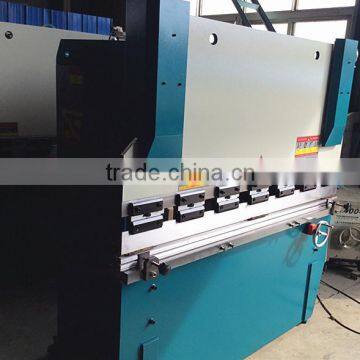

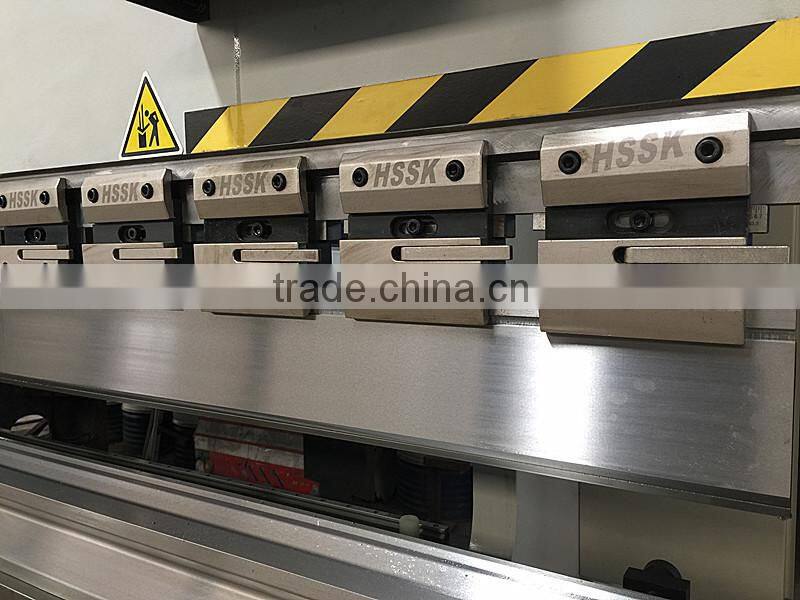

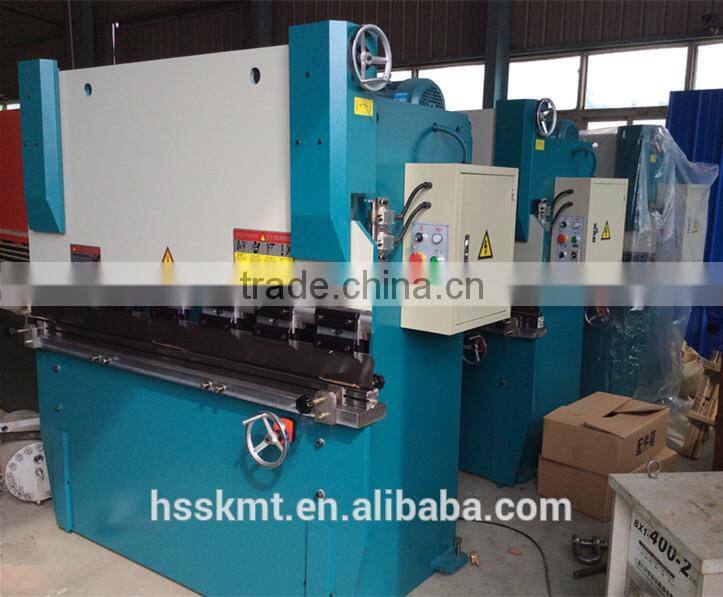

WC67Y-30/1600 Hydraulic Press Brake
Specifications
Hydraulic cnc bending machine
Advantage of our press brake:
bending straightness error <0.5mm for each meter
Electric components are from SIEMENS
The bending machine (press brake)With ball screw
Name |
Manufacturer |
Control system |
DA41/DA52/HYDRAULIC |
Sealing Ring |
NOK from Japan |
Electronic Parts |
SIEMENZ from Germany |
Gear Pump |
Marzocchi from italy |
mould |
42CrMo |
Technical parameters
CNC hydraulic press brake, steel bending machine, Metal Plate Bending Machine, Metal Sheet Bending Machine folding machine
HYDRAULIC PRESS BRAKE MACHINE 160TX3200
| Nominal force of the ram | 300KN | ||||
| Table Length | 1600MM | ||||
| Upright column distance | 1150MM | ||||
| Throat depth | 200MM | ||||
| Max. stroke of the ram | 200MM | ||||
| Max.open height between the table and the ram | 400MM | ||||
| Speed for the ram stroke | Empty | 110MM/S | |||
| Working | 11MM/S | ||||
| Return | 110MM/S | ||||
| Main Motor | Model | siemens | |||
| Power | 3KW | ||||
| Revolving Speed | 1440 R/MIN | ||||
| Dimension | 1600*1060*2150 | ||||
| ing pressure of the hydraulic system | 15MPA | ||||
| Weight | 2ton | ||||
Warranty
1) After-sale service time:14 months after shipment.
2) If any problems occurs, then the expenses of back and forth tickets, economic lodging and eating to repair will be performed charge of customer.
3) Damage caused by customers such as maloperation, incorrect installation or misapplication, we shall charge customer for the product repair.
