Japan-made 5" wide view angle lcd with wide temperature AA050MG03
- 200000 Piece / Pieces per Month
- Shanghai/Hongkong
- Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Japan | Brand Name: | Japan-made 5 inch high brightness 900nits lcd module AA050MG03 | Model Number: | AA050MG03 |
Type: | TFT |
Product Description

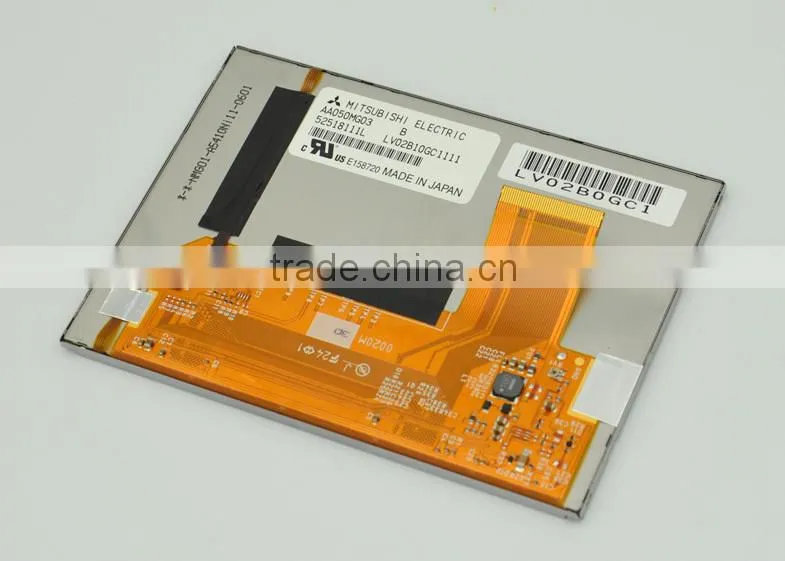

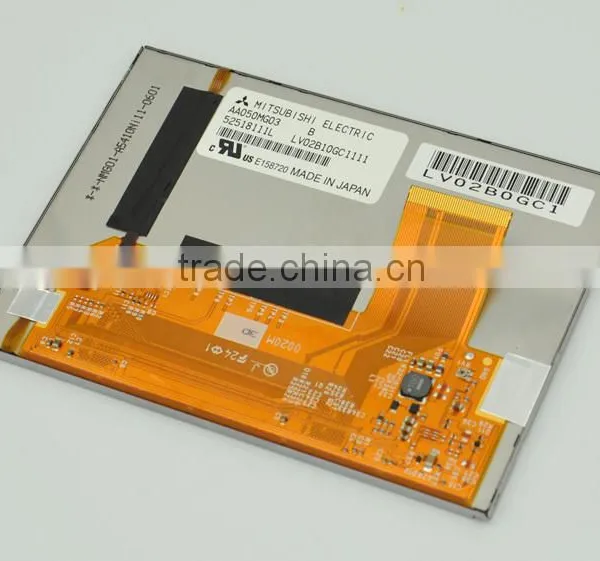

Japan-made 5" wide view angle lcd with wide temperature AA050MG03
Item | Specification |
Module name | AA050MG03 |
Size | 5 inch |
Brand | Mitsubishi |
Resolution | 800*480 |
View Angle | 85/85/85/85(Deg) R/L/U/D |
Pixel Pitch | 0.135(H)*0.135(V) |
Active Area | 108.0(H)*64.8(V)mm |
Display Mode | IPS, Normally Black |
Surface Treatment | Anti Glare(3H) |
Pixel Arrangement | R.G.B. Vertical Stripe |
Brightness | 900 cd/m2 |
Contrast Ratio | 1000:1 |
Outline Dimention | 118.5(W)*84.7(H)*3.9(D) mm |
Backlight | WLED |
Supply voltage(V) | 3.3 V (Typ.) |
Response Time | 12/12(Tr/Td)ms |
Operate Temperature | -30-80(℃) |
Storage Temperature | -30~80(℃) |
Electrical Interface | CMOS |
interface number | 45pin |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
