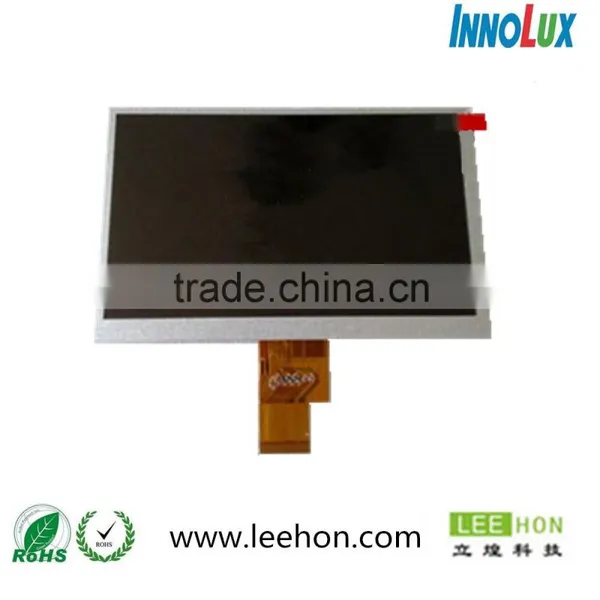

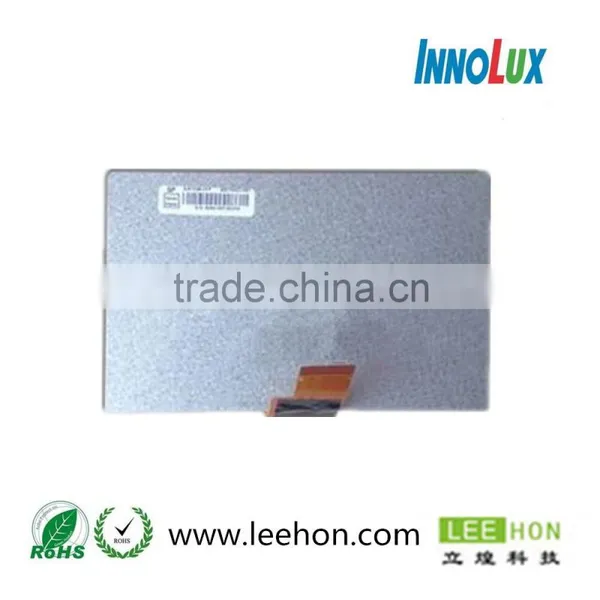

1024*600 Innolux 7" wide screen lcd with wide temperature ZJ070NA-01P
| Item | Specification |
| Module name | ZJ070NA-01P |
| Size | 7inch |
| Brand | INNOLUX |
| Resolution | 1024*600 |
| View Angle | 75/75/70/75(Deg) L/R/U/D |
| Pixel Pitch | 0.150(H)*0.150(V) |
| Active Area | 153.6(H)*90(V)mm |
| Display Mode | TN, Normally White |
| Surface Treatment | Anti Glare(3H) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 700:1 |
| Outline Dimention | 165.75(W)*105.39(H)*4.8(D) mm |
| Backlight | WLED |
| Supply voltage(V) | 3.3 V (Typ.) |
| Response Time | 10/15(Tr/Td)ms |
| Backlight Time | 15K Hrs |
| Operate Temperature | -30-80(℃) |
| Storage Temperature | -30-80(℃) |
| Electrical Interface | LVDS |
| interface number | 40pin |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
