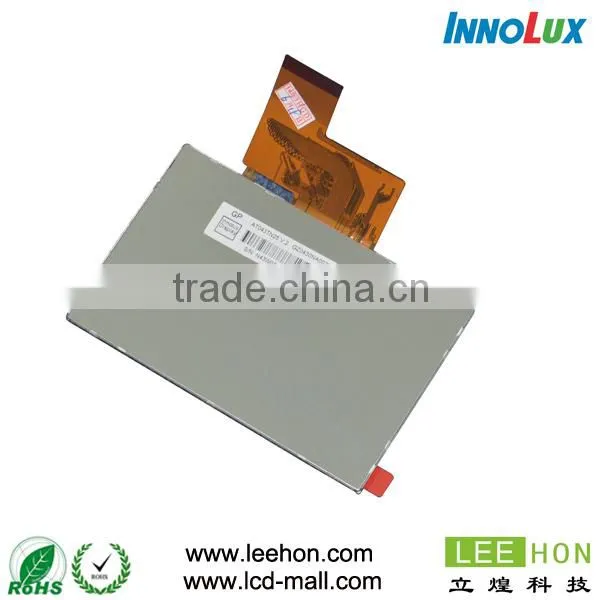

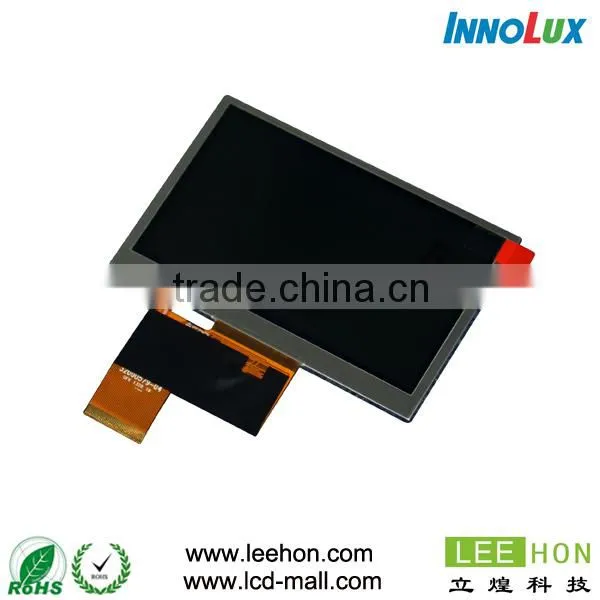

Innolux 4.3 inch tft lcd 480X272 high brightness 500nits AT043TN25 V2
| Module number | AT043TN25 V.2 |
| Resolution | 480 × 3 (RGB) × 272 |
| Width:Height | 16:9 |
| Dot pitch | 0.198(W) × 0.198(H) mm |
| Active Area | 98.7(W) × 57.5(H) mm |
| View angle | R/L/U/D 70/70/50/70(Deg) |
| Pixel Arrangement | RGB Vertical Stripe |
| Surface Treatment | Anti-glare |
| Electrical Interface | Parallel RGB |
| Brightness | 500(cd/m2) |
| Contrast ratio | 500:1 |
| Outline dimension | 105.5(W) × 67.2(H) ×2.9(D) mm (Typ.) |
| Backlight | LED |
| Response time | 25(ms) |
| Display mode | TN, Normally White, Transmissive |
| Operate temperature | -20-70(°C) |
| Storage temperature | -30-80(°C) |
| Display Colors | 16.7M |
| Power Supply Voltage | 3.3v(Typ.) |
| Backlight lifetime | 20k hrs(Min.) |
| Application | Automobile |
| Handheld TV | |
| Portable GPS | |
| Etc. common use |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
