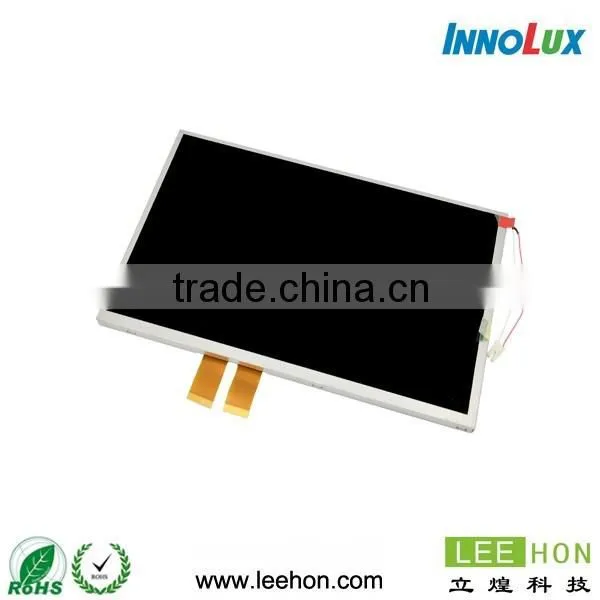

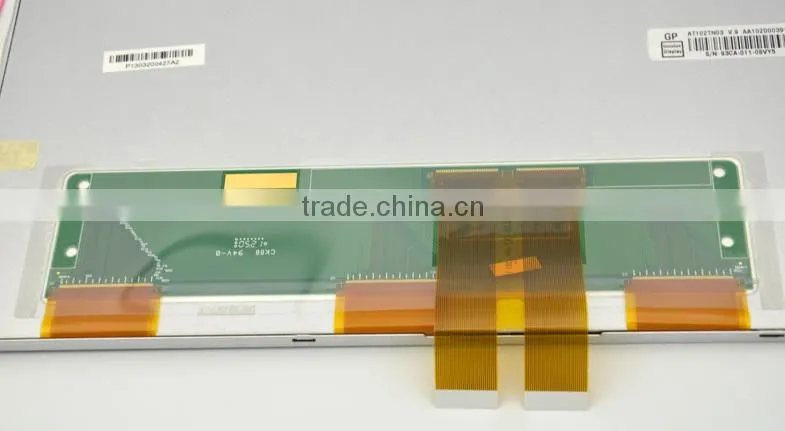

tft lcd panel 10.2 inch wide temperature -30~85 Innolux AT102TN03 V.9
| Module number | AT102TN03 V.9 |
| Type | a-Si TFT LCD |
| Panel Size | 10.2 inch |
| Resolution | 800X3(RGB)X480 |
| Width:Height | 15:9 |
| Pixel pitch | 0.2775(W) × 0.2760(H) mm |
| Active Area | 225.3(W) × 135.7(H) mm |
| View angle | R/L/U/D 65/65/45/65(Deg) |
| Pixel Arrangement | RGB Vertical Stripe |
| Surface Treatment | Anti-glare |
| Electrical Interface | Parallel RGB |
| Brightness | 250(cd/m2) |
| Contrast ratio | 300:1 |
| Outline dimension | 235x145.8x6.1mm(Typ.) |
| Panel Weight | 325g(Typ.) |
| Backlight | LED |
| Response time | 35(ms) |
| Display mode | TN, Normally White, Transmissive |
| Operate temperature | -30-85(°C) |
| Storage temperature | -30-85(°C) |
| Display Colors | 262k(6 bit) |
| Power Consumption | 2.11W(Typ.) |
| Power Supply Voltage | 3.3v(Typ.) |
| Backlight lifetime | 20k hrs(Min.) |
| Product Features | --Wide Screen; |
| --Wide temperature; | |
| --Wled backlight; | |
| --360 Deg. rotation view support; | |
| --SAG surface. | |
| Application | Portable DVD |
| Digital Photo Frame etc common use |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
