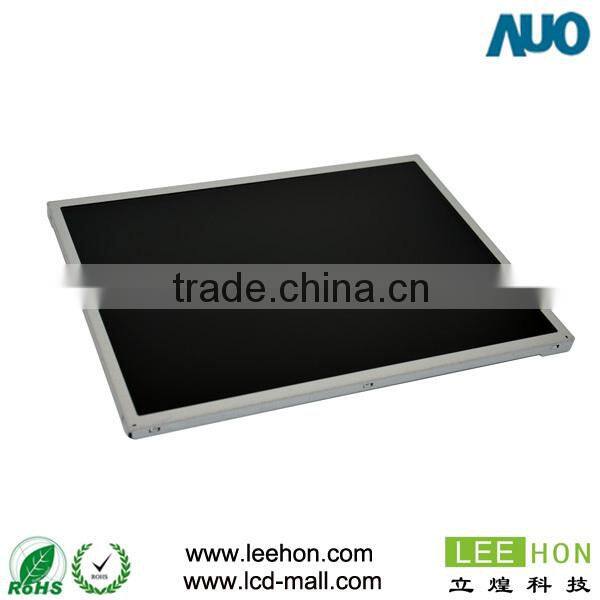

Auo high brightness 15" industrial tft lcd with wide view angle G150XTN06.3
- 20000 Piece / Pieces per Month
- Shanghai/Hongkong
- Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Taiwan | Brand Name: | AUO | Model Number: | G150XTN06.3 |
Type: | TFT |
Product Description
Auo high brightness 15" industrial tft lcd with wide view angle G150XTN06.3
Module number | G150XTN06.3 |
Brand | AUO |
Type | a-Si TFT LCD |
Panel Size | 15 inch |
Resolution | 1024X768 |
Width:Height | 4:3 |
Pixel Pitch | 0.297×0.297 (mm) |
Active Area | 304.128×228.096(mm) |
View angle | R/L/U/D 80/80/70/80 (Deg) |
Mode | TN, normally white, transmissive |
LCD Surface | Anti-glare, Hard Coating(3H) |
Number of Colors | 262K/16.2M(6 bit/6 bit+FRC) |
Electrical Interface | LVDS(1ch, 6/8 bit) |
Brightness | 1600 cd/m2 |
Contrast ratio | 800:1 |
Outline dimension | 326.5x253.5x13mm(Typ.) |
Backlight | WLED |
Supply Voltage (V) | 3.3V |
Response time | 5.7/2.3 (ms) |
Backlight lifetime | 50K hrs(Min.) |
Operate temperature | -30-70(°C) |
Storage temperature | -30-70(°C) |
Product features | -- WLED backlight & LED driver integrated; |
-- Wide temperature; | |
-- Wide view angle; | |
-- Long backlight lifetime 50K hrs(Min.); | |
-- 6/8 bit optional; | |
-- Anti-glare surface. | |
Application | Special for industrial grade use |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
