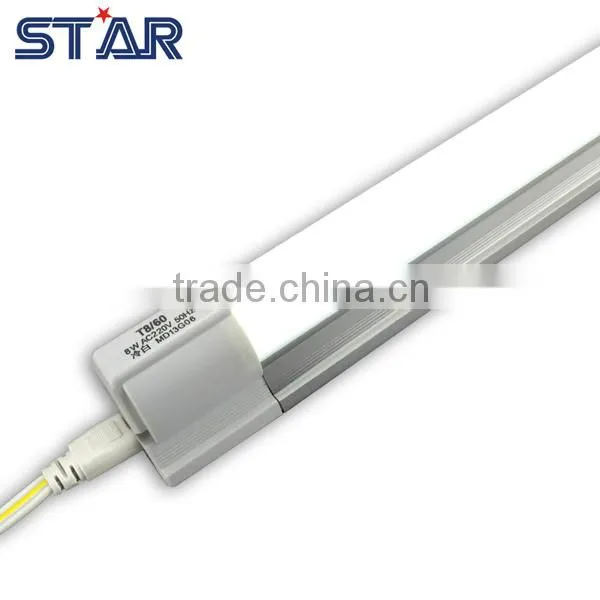

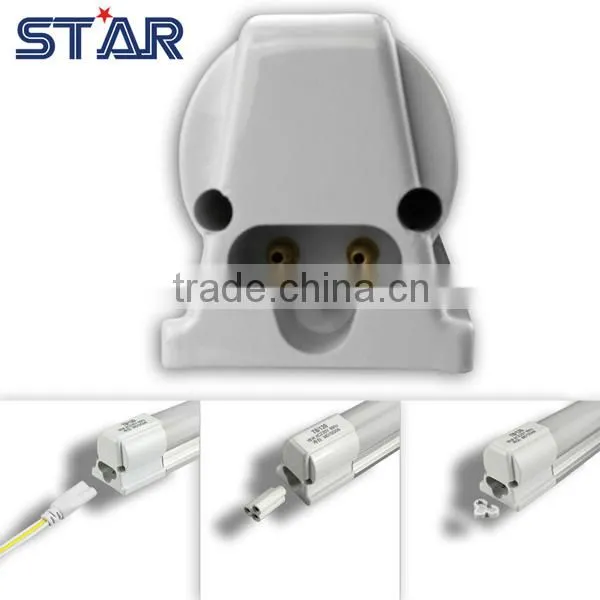

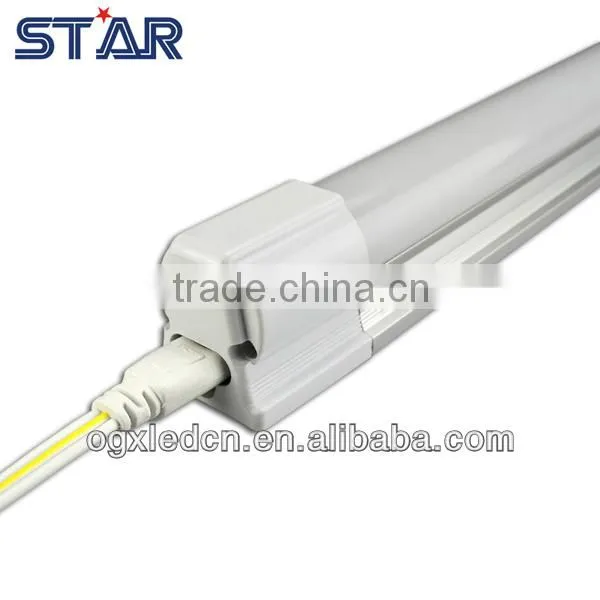

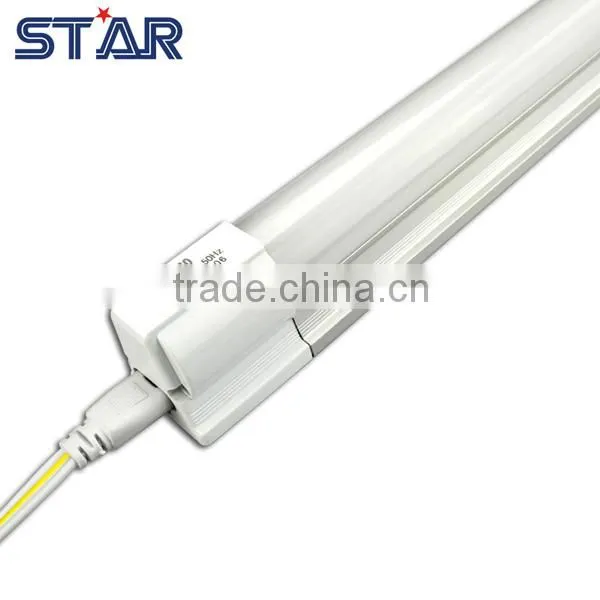

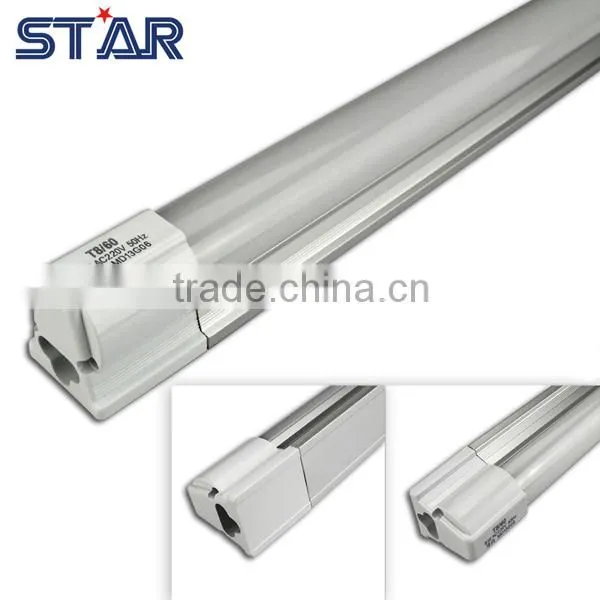

Integrated T8 LED Tube 12W 4ft 1200mm

Integrated T8 LED Tube 12W 4ft 1200mm thumbnail-1
Integrated T8 LED Tube 12W 4ft 1200mm photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
3528
Warranty(Years):
2
Input Voltage(V):
86-265
Contact Supplier Request Quote Chat Now
Shenzhen Ouge Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 3528
Warranty(Years) 2
Input Voltage(V) 86-265
Lamp Power(W) 12
Lamp Luminous Flux(lm) 1263
Lamp Luminous Efficiency(lm/w) 10
Color Temperature(CCT) Other
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP33
Certification CE
Place of Origin Guangdong, China
Brand Name Star
Model Number T8

Specifications

Size: 1,200mm
Diameter: 26*28mm
LED Type: SMD 3528
LED Qty.:168pcs
PC Cover:Frosted

Integrated T8 LED tube 12W 4ft 1200mm

Size: 1,200mm
Diameter:  26*28mm
LED Type: SMD 3528
LED Qty.:168pcs
PC Cover:Frosted



Electrical Characteristics

All data is under 25°C, unless otherwise specified.

Symbol Parameter Unit Min. Typ. Max.
PS Power Consumption W 11.7 12.3 12.7
Vin Input Voltage V 85 – 265
Vout Output Voltage V 35 37.5 40
F Input Frequency Hz 50 – 60
% Power Factor – 0.88 0.93 0.98
% Power Efficiency – 84% 88% 92%
Top Operating Temperature Range °C -20 – +50

Photometry Characteristics

All data is under 25°C, unless otherwise specified.

Symbol Parameter Unit Min. Typ. Max
Br Luminous Flux lm 1263 1306 1367
lv Illuminance at 1m lux 168 175 188
lv Illuminance at 1.5m lux 80 86 96
lv Illuminance at 2m lux 41 45 54
lv Illuminance at 3m lux 19 21 28
VA Viewing Angle degree – 120 –
CCT Color Temperature K 3,000-3,500 4,000-4,500 6,000-7,000
CRI Colour Rendering Index – 70 72 75



 Integrated T8 LED tube 12W 4ft 1200mmIntegrated T8 LED tube 12W 4ft 1200mmIntegrated T8 LED tube 12W 4ft 1200mmIntegrated T8 LED tube 12W 4ft 1200mmIntegrated T8 LED tube 12W 4ft 1200mm
