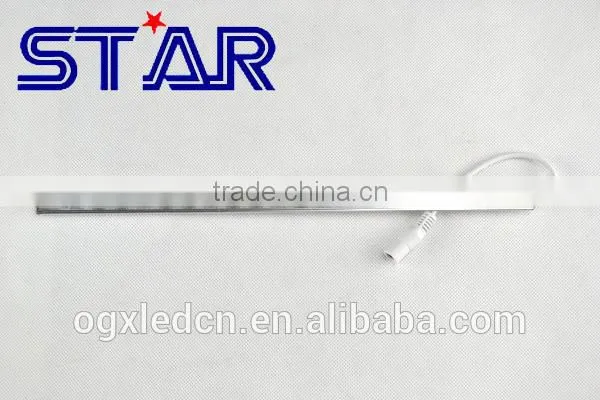

Rigid LED Bar Light 5050 RGB 72led IP67 12V

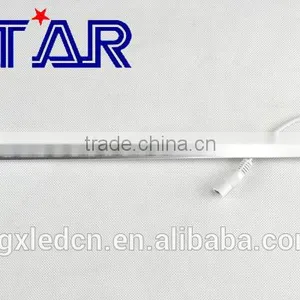

Rigid LED Bar Light 5050 RGB 72led IP67 12V thumbnail-1
Rigid LED Bar Light 5050 RGB 72led IP67 12V photo-1
US$ 3.5 - 3.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
5050
Type:
LED Bar Lights
Input Voltage(V):
12
Contact Supplier Request Quote Chat Now
Shenzhen Ouge Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050
Type LED Bar Lights
Input Voltage(V) 12
Lamp Power 8watt
Lamp Luminous Flux(lm) 20-22
Working Temperature(℃) -10, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name STAR
Model Number RB50RGBD20

Specifications

Length:50cm
16watt
12V
CE,RoHS
Application for under cabinet display

Rigid LED Bar Light 5050 RGB 72led IP67 12V



ALU STRIPS RGB SMD are perfect for indirect and background lighting e.g. for fair or shop applications. The LEDs are moulded in an aluminium profile. Installation with two metal clamps.



1.Supply connectors are not IP54
2.dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by STARRGB MULTI power supplies/controller



Rigid LED Bar Light 5050 RGB 72led IP67 12V



Types of waterproof casing are as follows for your choice:

IP20 Non Waterproof,Aluminum profile with PCB with LEDs
IP65 Drip silicon waterproof for outdoor using
IP33 non waterproof ,aluminum profile with plastic cover with leds


1)Excellent quality, reasonable price

2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving



Technical Data:

IP classification IP67 for underwater using
Power source DC12V
Housing drip glue
Electrical connection

1x cable with 4-PIN connector male

1x cable with 4-PIN connector female
Maximum quantity per power input 8meter
Operating temperature range –10° C till +45° C



Photometric Data

LED type SMD RGB 3-in-1 LEDs
Luminous flux

red 40 Lumen per m

green 240 Lumen per m

blue 50 Lumen per m

r+g+b (white) 330 Lumen per m
Wave length

red 623 nm

green 528 nm

blue 465 nm
Beam angle 120°



Photos:

RGB Color LED Rigid bar light 12v with clear cover:

24keys RGB IR Remote controller



Rigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12V



5050 RGB Seamless rigid bar:

Rigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12VRigid LED Bar Light 5050 RGB 72led IP67 12V
