12v RGB 5050 72led/m 16W IP65 Drip Glue Waterproof Aluminum LED Rigid Strip

Shenzhen Ouge Star Technology Co., Ltd.
12v RGB 5050 72led/m 16W IP65 Drip Glue Waterproof Aluminum LED Rigid Strip thumbnail-1
12v RGB 5050 72led/m 16W IP65 Drip Glue Waterproof Aluminum LED Rigid Strip photo-1
US$ 3.4 - 6.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
5050
Type:
LED Bar Lights
Input Voltage(V):
12
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050
Type LED Bar Lights
Input Voltage(V) 12
Lamp Power 16
Lamp Luminous Flux(lm) 20-22
Color Temperature(CCT) RGB
Working Temperature(℃) -10, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name STAR
Model Number RB50RGBD20

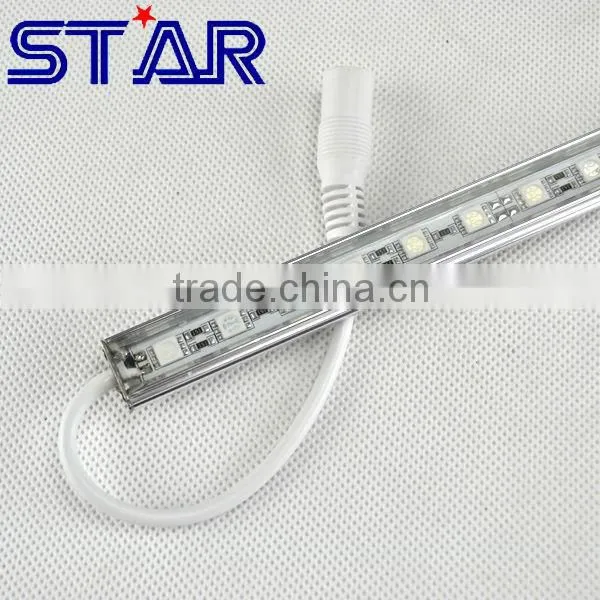

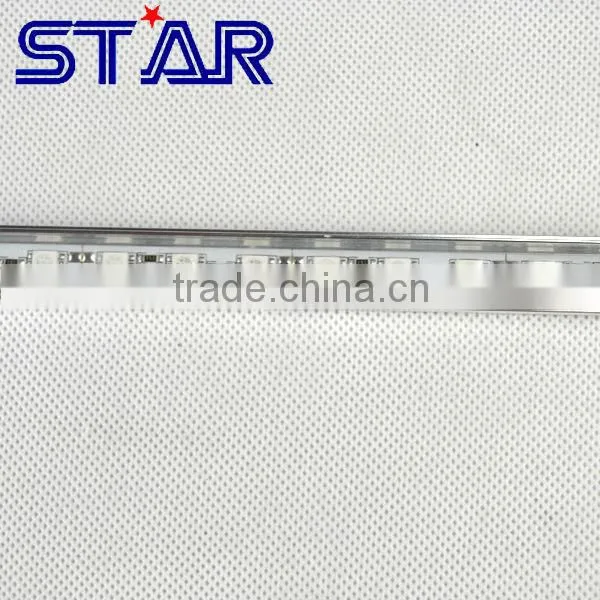

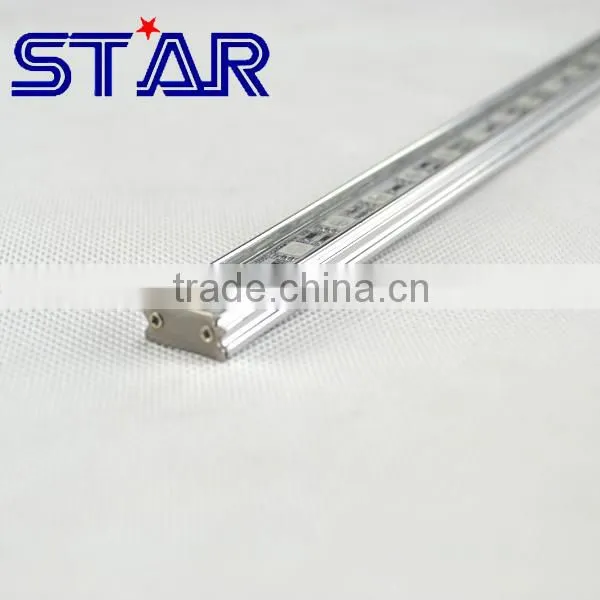

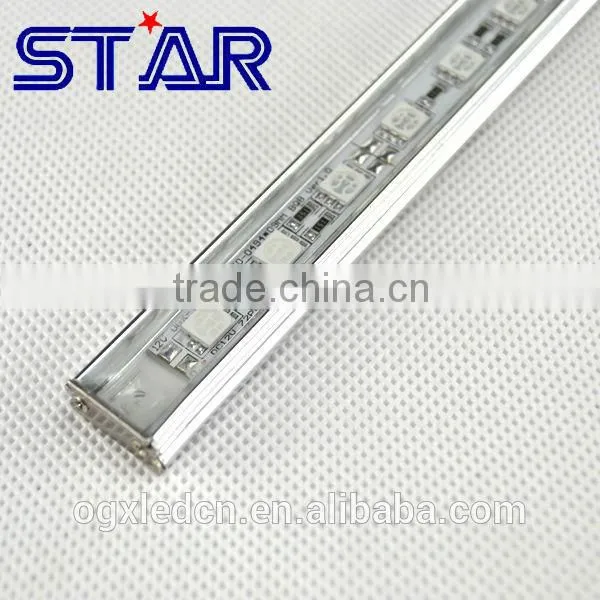

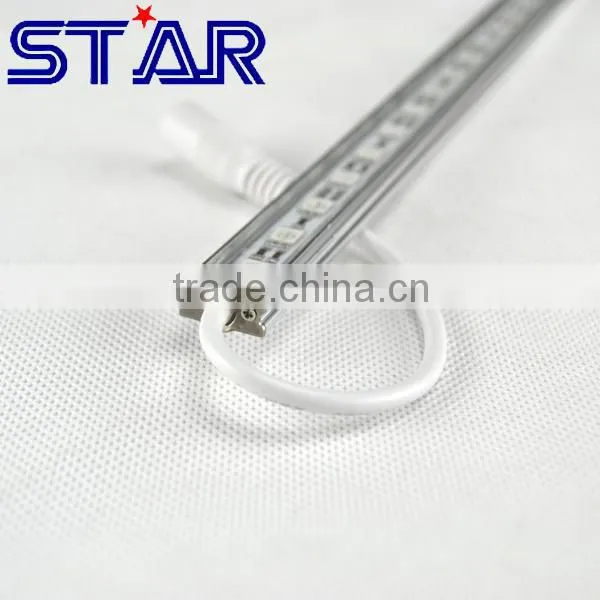

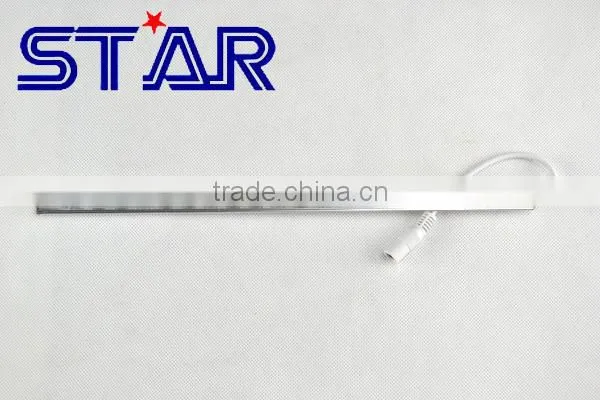

50cm 12v Aluminum LED Rigid strip lights GRB 5050 72led/m 16W IP65 Drip glue waterproof for outdoor use

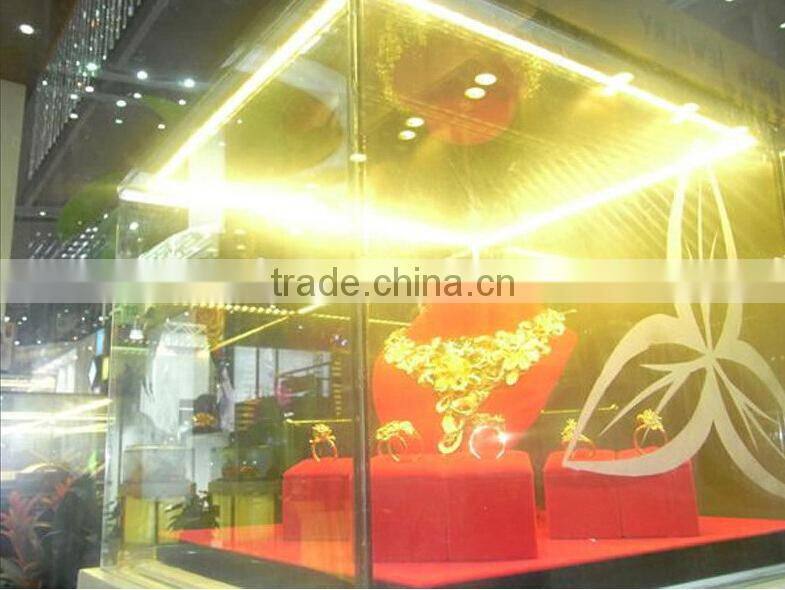

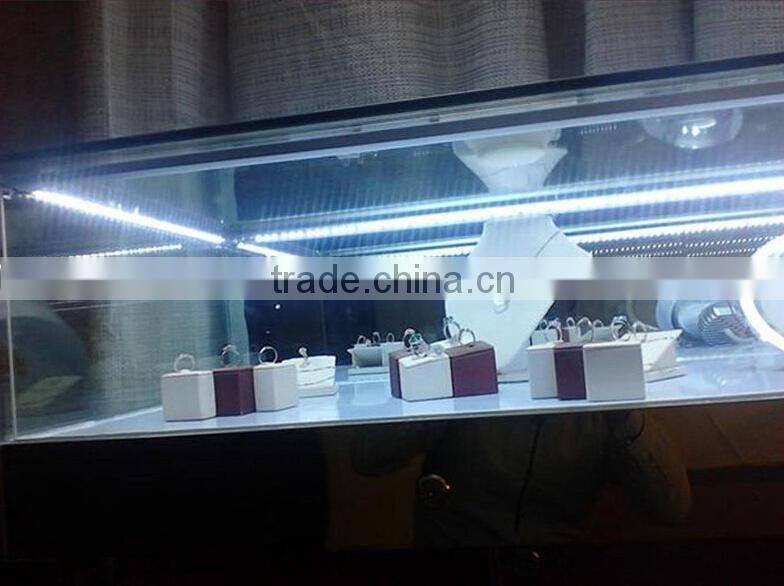

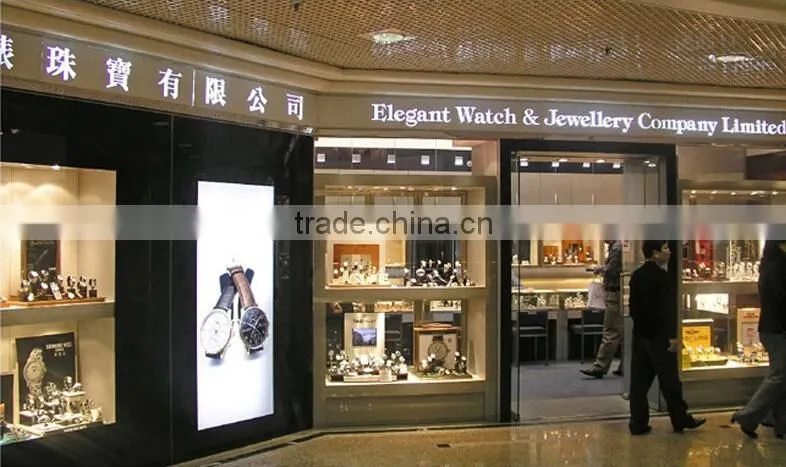

The STAR ALU STRIPS RGB SMD are perfect for indirect and background lighting e.g. for fair or shop applications. The LEDs are moulded in an aluminium profile. Installation with two metal clamps.



1.Supply connectors are not IP65
2.dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by STAR RGB MULTI power supplies/controller



Technical Data

IP classificationIP65 (for outdoor and under water use)
Power sourceDC12V
Installationmetal clamps(brackets,screws)
Electrical connection

1x cable with 4-PIN connector male
1x cable with 4-PIN connector female

Maximum quantity per power input8 m
Operating temperature range–10° C till +45° C



Photometric Data

LED typeSMD RGB 3-in-1 LEDs
Luminous flux

red 40 Lumen per m
green 240 Lumen per m
blue 50 Lumen per m
r+g+b (white) 330 Lumen per m

Wave length

red 623 nm
green 528 nm
blue 465 nm

Beam angle120°



Types of waterproof casing are as follows for your choice:

IP20Non Waterproof,Aluminum profile with PCB with LEDs
IP65Drip silicon waterproof for outdoor using
IP33non waterproof ,aluminum profile with plastic cover with leds


1)Excellent quality, reasonable price

2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving


12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip 12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip12v RGB 5050 72led/m 16W IP65 Drip glue waterproof Aluminum LED Rigid strip

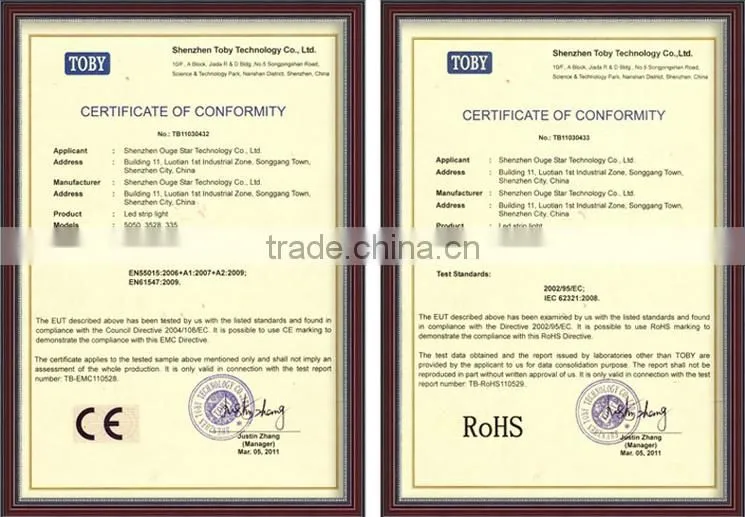

Certifications
