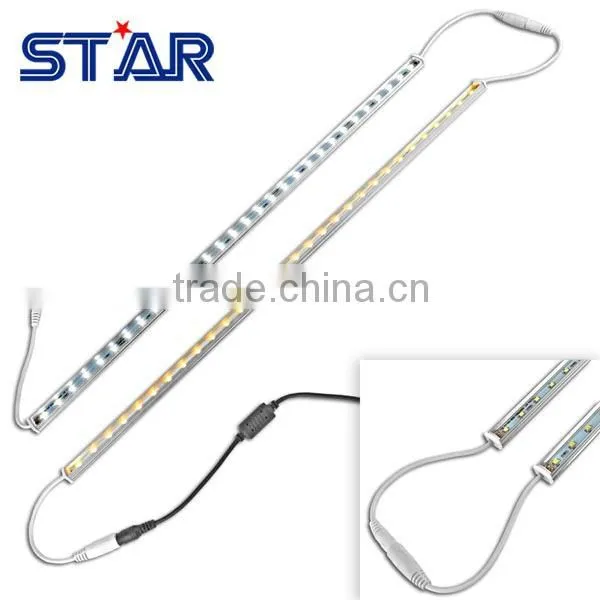

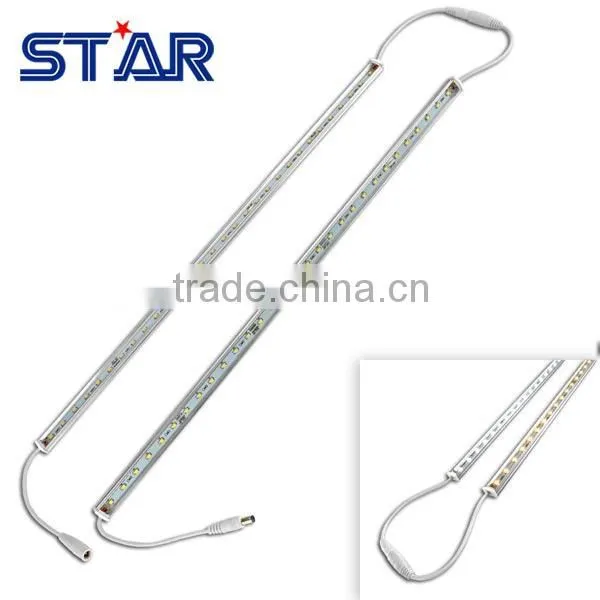

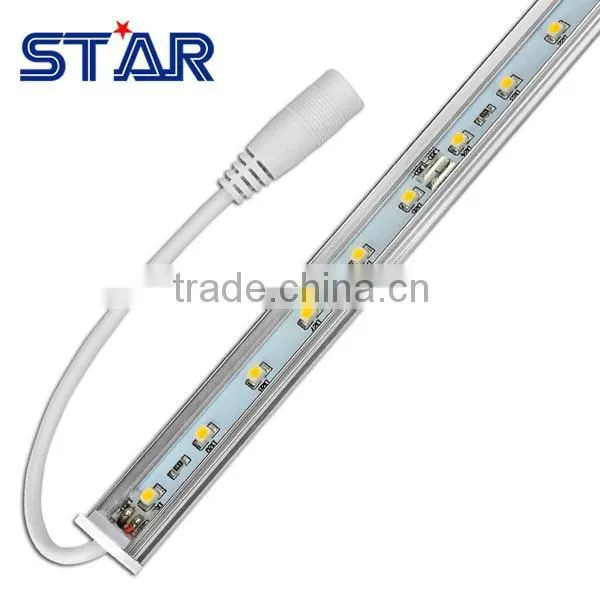

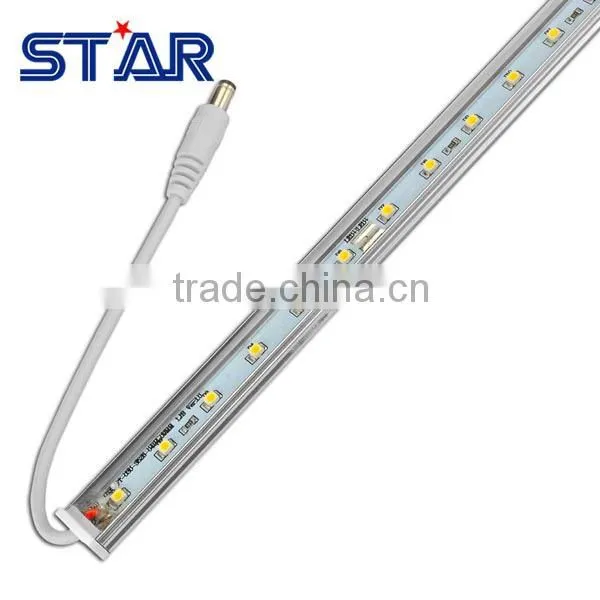

2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting

2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting thumbnail-1
2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting photo-1
US$ 5 - 5.5 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
2835
Type:
LED Bar Lights, Aquarium LED bar
Input Voltage(V):
12
Contact Supplier Request Quote Chat Now
Shenzhen Ouge Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 2835
Input Voltage(V) 12
Lamp Power 9
Lamp Luminous Flux(lm) 10-12
Color Temperature(CCT) 2900-3500
Working Temperature(℃) -10, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color Warm White
Place of Origin Guangdong, China
Brand Name STAR
Model Number ST50WW72D20

Specifications

45leds/0.5m,4.5w/0.5m
CE ROHS
Warranty:2years
MOQ:1 Pieces
Supply special,high quality,factory price

Waterproof Aluminum Aquarium LED Rigid Bar Strip White Color SMD2835 DC12V 90led/m 9w



Accessories:

2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting

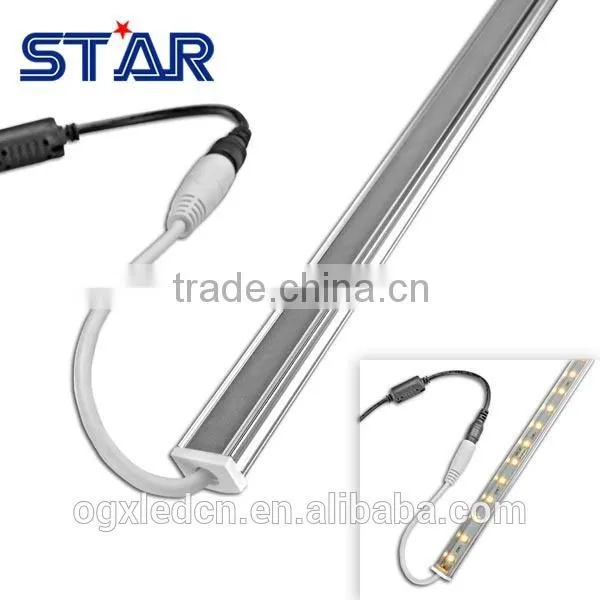

The STAR ALU STRIPS MONO SMD are perfect for indirect and background lighting e.g. for fair or shop applications. The LEDs are moulded in an aluminium profile. Installation with two metal clamps.



1.Supply connectors are not IP54
2.dimmable or DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller



Technical Data:

IP classification IP67 for underwater
Power source 12V DC
Housing Alumimun profile
Electrical connection

1x cable with 2-PIN connector male
1x cable with 2-PIN connector female
Maximum quantity per power input 4meter
Operating temperature range –10° C till +45° C
Wattage 9w per meter
Installation with two metal clamps



Photometric Data:

LED type SMD LEDs ULTRA BRIGHT
LED Qty 90leds per  meter
Luminous flux

10-12LM per LED
Colour temperature

white 6000–8000 K
warm white 2800–3300 K
CRI 70+
Beam angle 120°







5050 LED Rigid bar different length are available:30cm,50cm,100cm,120cm,150cm
Item No. Color Voltage Switch Length LED pcs Wattage
RB50WD20 White 12V no 30cm 21led 4.5watt
RB50WD20 White 12v no 50cm 36led 8watt
RB50WD20 White 12v no 100cm 72led 16watt
RB50WD20 White 12v no 120cm 84led 18watt
RB50WD20 White 12v no 150cm 90led 22watt




 2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting



 Feature:



1)Use super brightness SMD 5050 LED as light source.
2) Flexible and can be fixed on uneven surface, small volume, available in many colors.
3) Each three LEDs make a group and can be cut according to the incising line, without damaging other parts.
4) Low power supply, safe for use.
5) Can be used for illumination around the transparent or non-transparent material.
6) There is 3M double side adhesive on the back for pasting

 Application:

1) Architectural decorative lighting.
2) Archway, canopy and bridge edge lighting.
3) Amusement park, theater and aircraft cabin mood lighting.
4) Emergency hallway lighting.
5) Auditorium walkway lighting.
6) Stairway accent lighting.
7) Concealed lighting.
8) Backlighting for signage letters.
9) Channel letter lighting.

10) Emergency exit path lighting.
11) Cove lighting.
12) Edge-lit acrylic panel lighting.



Accessories:Brackets and SCREWS:

2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting



2835 90leds/m Waterproof Rigid LED Bar,LED BAR Lighting
