Home > Products > LED Rigid Bar Light > 12v/24v Aluminum Profile LED Rigid Bar 5050 72led/m 16watt IP68 Waterproof for Under Cabinet Display Illumination

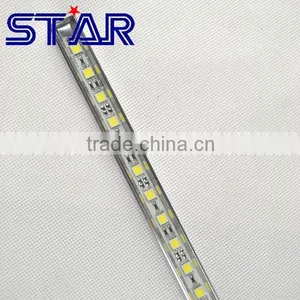

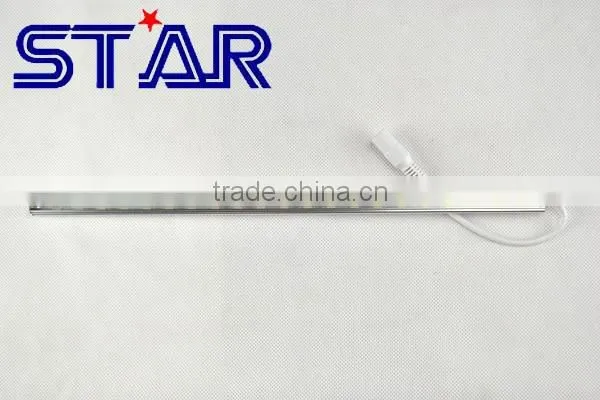

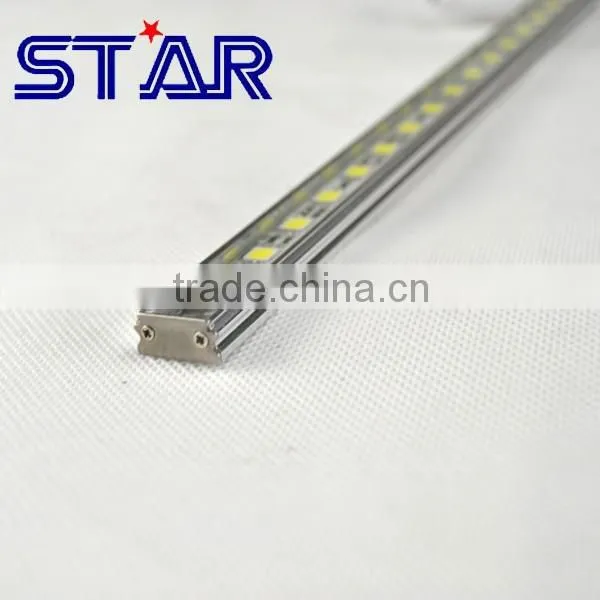

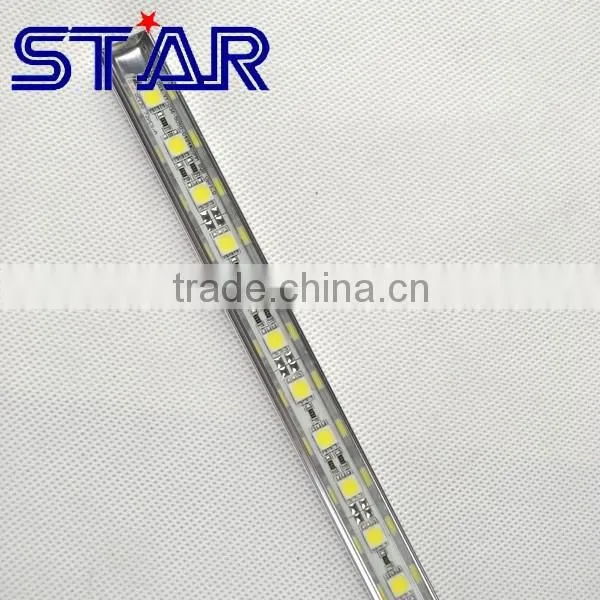

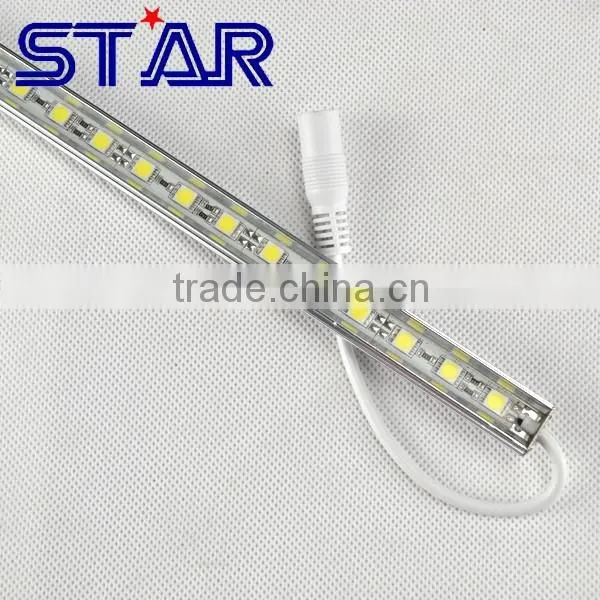

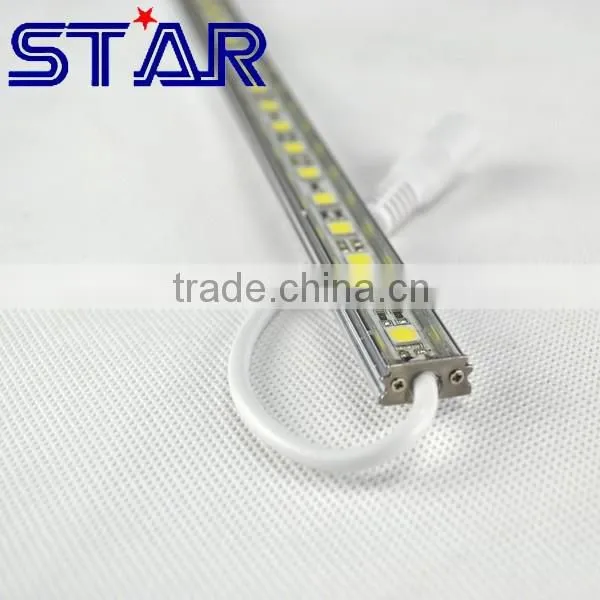

12v/24v Aluminum Profile LED Rigid Bar 5050 72led/m 16watt IP68 Waterproof for Under Cabinet Display Illumination

Name: 12v/24v Aluminum Profile LED Rigid Bar 5050 72led/m 16watt IP68 Waterproof for Under Cabinet Display Illumination
Brand: STAR
Availability: InStock

FOB Price

US$ 6 - 6.5 / Meter

1 Meter(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	5050	Type	LED Bar Lights
Input Voltage(V)	12	Lamp Power	16
Lamp Luminous Flux(lm)	14400	Color Temperature(CCT)	6000-8000
Working Temperature(℃)	-10, +45	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum	Certification	CE
Emitting Color	White	Place of Origin	Guangdong, China
Brand Name	STAR	Model Number	RB50W72D20

Product Description

Specifications

12 Volt
CE,RoHS
Length:19.6 inches ;Can be connected with 8 pcs together.
72 SMD5050 Bright LEDs
16w per LED

12v/24v Aluminum profile LED Rigid Bar 5050 72led/m 16watt IP68 waterproof for under cabinet display illumination

ALU STRIPS RGB SMD are perfect for indirect and background lighting e.g. for fair or shop applications. The LEDs are moulded in an aluminium profile. Installation with two metal clamps.

1.Supply connectors are not IP54
2.dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by STARRGB MULTI power supplies/controller

Types of waterproof casing are as follows for your choice:

IP20	Non Waterproof,Aluminum profile with PCB with LEDs
IP65	Drip silicon waterproof for outdoor using
IP33	non waterproof ,aluminum profile with plastic cover with leds

1)Excellent quality, reasonable price

2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving

Technical Data:

IP classification	IP68 for outdoor using
Power source	DC12V
Housing	//
Electrical connection	1x cable with 4-PIN connector male 1x cable with 4-PIN connector female
Maximum quantity per power input	8meter
Operating temperature range	–10° C till +45° C

Photometric Data

LED type	SMD RGB 3-in-1 LEDs
Luminous flux	red 40 Lumen per m green 240 Lumen per m blue 50 Lumen per m r+g+b (white) 330 Lumen per m
Wave length	red 623 nm green 528 nm blue 465 nm
Beam angle	120°
