Specifications
12W LED Down light;1.SMD CHIP 5730
2.Constant Current Drive
3.Lumen 90-100lm/
12W LED Down light
Brief Introduction:
LED downlights is a perfect replacement of traditional incandescent ceiling light, it can save 80% energy than the traditional one. Use for both commercial lighting like: part highlight, goods display and home decorative lighting. Different colors and designs are available according to clients’ need. Its features of energy saving, environment protection and long life make the LED Lighting become the primary choice of lighting in the near future.
Specifications :
LED Chip |
Epistar |
Power consumption |
12W |
Input voltage |
AC 100-240V |
LED Qty |
12 pcs 1w led |
Dimension |
138*50mm |
Open hole caliber |
128mm |

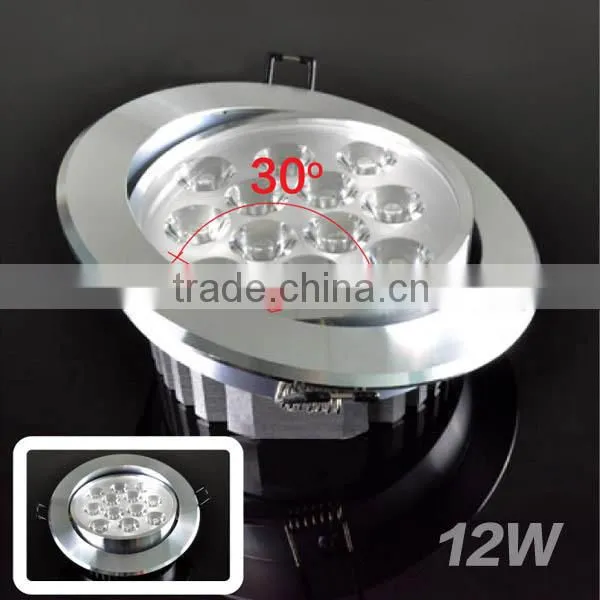

Beam angle |
30/45/60 degree |

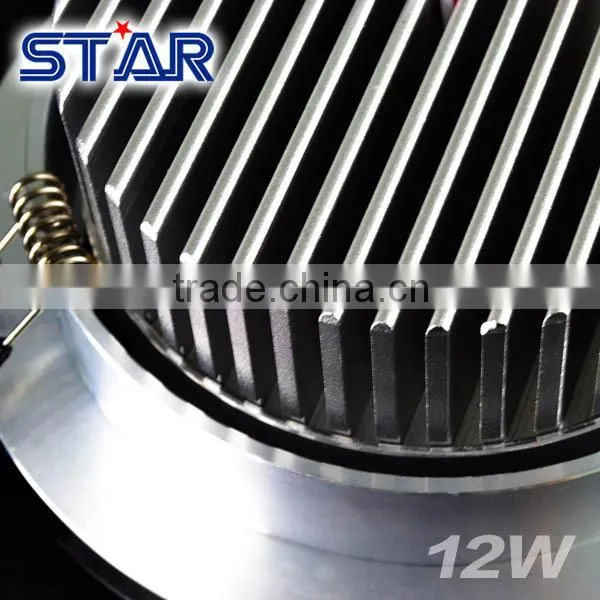

Housing Material |
Aluminum |
Luminous flux |
375-400lm |
Color |
Warm white, Natural white, Cool white |
Color temperature |
2800-3200k, 4300-4700k, 6000-6500k |
Power factor(PF) |
≥0.8 |
Color rendering index(CRI) |
≥75 |
Work humidity |
10%~90% non-condensing humidity |
Environment temperature |
-20~40 centigrade degrees |
Life span |
50,000 hours |
Warranty |
Two years |
| Moel | Size | Power ( watt ) | Color | CT ( K ) | Shell color |
| CE5WW138MF | 138*H50mm | 12 * 1W | warm white | 2800-3200 | mirror finish |
| CE5NW138MF | 138*H50mm | 12 * 1W | Natural white | mirror finish | |
| CE5SW138MF | 138*H50mm | 12 * 1W | White | 6000-6500k | mirror finish |
| CE5W138MF | 138*H50mm | 12 * 1W | Cool white | mirror finish |
Technical Data
| IP classification | IP20 for indoor use only |
| Power source | 110-240 VAC 50/60 Hz |
| Housing | Aluminum |
| Driver | including (700 mA) |
| Operating temperature range | –10° C till +45° C |
| Dimmable | no |
Photometric Data
| LED type | 12 Watt high power |
| Luminous flux | white 400 Lumen |
| Colour temperature | white 6000–6500 K |
| CRI | white 70+ |
| Beam angle | 120° |
12w led downligh Application:
1)Recess lighting
2)Cabinet and under counter lighting
3)Shelf lighting
4)Office work station
5)Merchandising
6)Exhibition stands and panels
7)Architectural
8)Ceiling/wall coves
9)Step lighting
10)Back lit signs
Applications:
House lighting, display cupboards, commercial area, exhibition hall, meeting room and other indoor places. Please don't use it in moist places
Installation:
Send Inquiry to This Supplier
