Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > 3528 Green Flexible Led Light Strip Wholesale

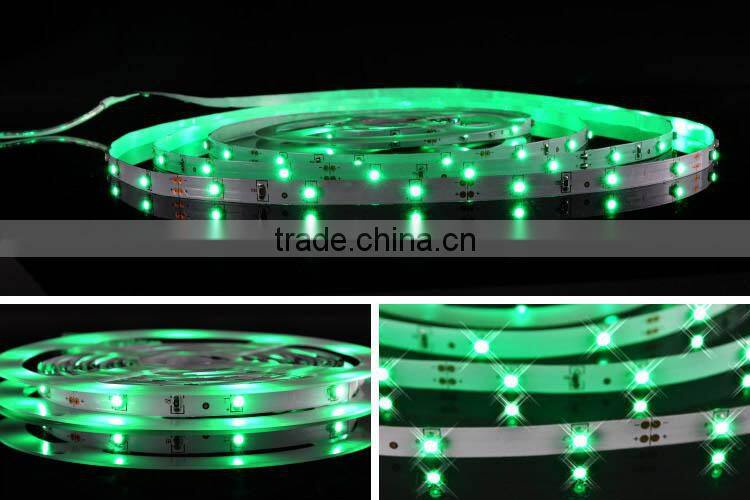

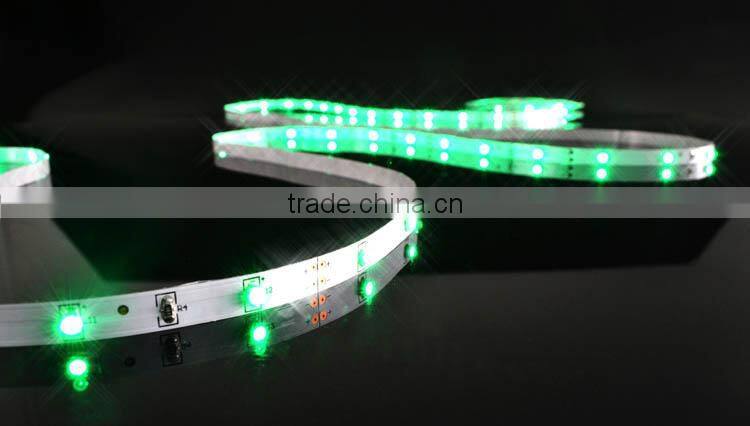

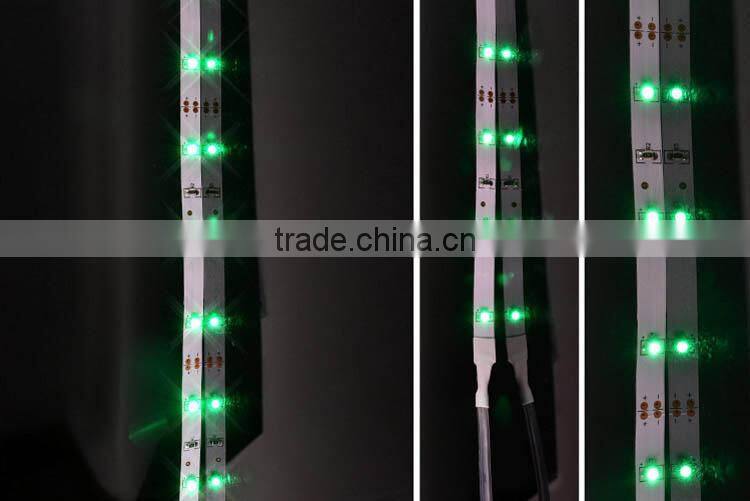

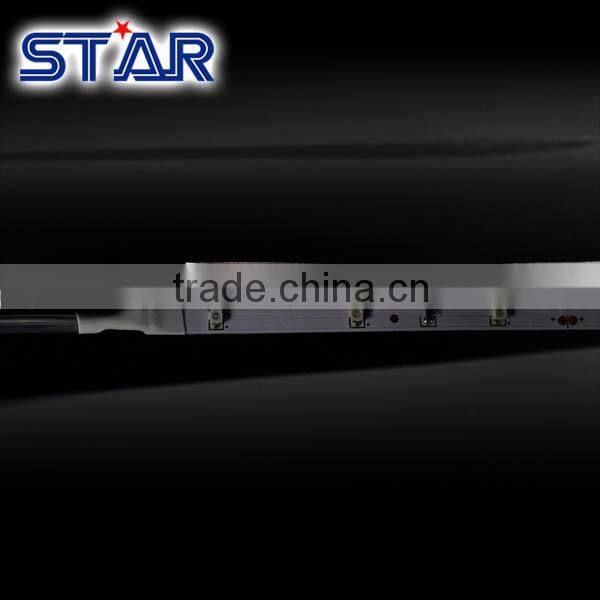

3528 Green Flexible Led Light Strip Wholesale

US$ 2 - 2 MOQ: 1 Roll

Key Specifications

Get Latest Price

LED Light Source:

3528

Type:

Flex LED Strips

Input Voltage(V):

12V

Contact Supplier Request Quote Chat Now

Shenzhen Ouge Star Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/ Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source 3528

Type Flex LED Strips

Input Voltage(V) 12V

Lamp Power 12

Lamp Luminous Flux(lm) 4-8

Working Temperature(℃) -10, +45

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

Certification CE

Emitting Color Green

Place of Origin Guangdong, China

Brand Name OGX

Model Number ST35G30D20

Specifications

3528 Green Flexible led light strip wholesale ;
5M/Roll 150leds;
3years warranty;
CE Rohs;

3528 Green Flexible led light strip wholesale

1.High flexibility – adaptable to round shapes.

2.Installation with 3M adhesive tape on the strip’s backside (self adhesive).
3.dimmable or DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller

3528 60led 12v cuttable length:

Technical Data:

IP classification	IP20 for indoor
Power source	12V DC
Electrical connection	2x cable with 2-PIN to open wires
Maximum quantity per power input	5 M
Operating temperature range	–10° C till +45° C
Width x height	8 x 2,5 mm
Cuttable	all 3 LEDs (5 cm)

Photometric ata:

LED type	SMD Chip 3528
Luminous flux	red 90 Lumen per m green 170 Lumen per m blue 60 Lumen per m amber 90 Lumen per m white 290 Lumen per m neutral white 340 Lumen per m warm white 390 Lumen per m 2700 K 350 Lumen per m
Wave length	red 621 nm green 527 nm blue 463 nm amber 590 nm
Colour temperature	white 6000–8000 K neutral white 4000–4500 K warm white 2900–3500 K 2700 K 2500–2800 K
CRI	white 70+ neutral white 70+ warm white 60+ 2700 K 60+
Beam angle	120°

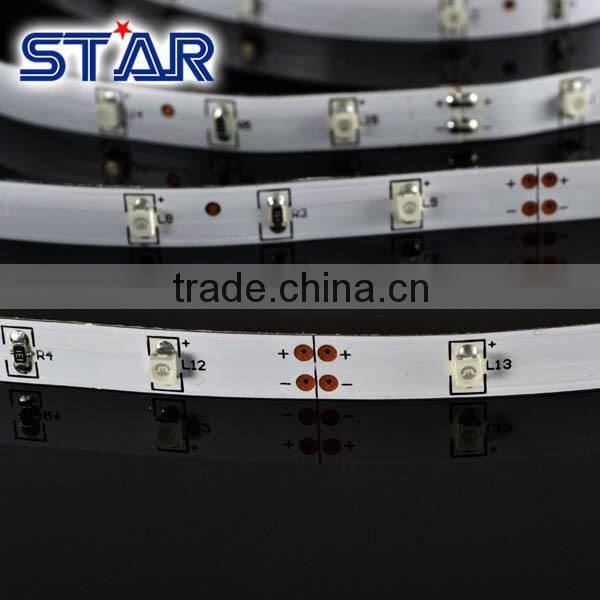

Flexible & soft PCB can be bent into any shape, the length can be adjustable or cuttable every three leds

3M Adhesive Tape on the back

Types of waterproof casing are as follows for your choice:

IP20	Non Waterproof
IP65	Drip silicon
IP66	Silicon tube encasing
IP68	Silicone tube and silicon stuffing encasing

IP67	Half-Silicone tube and silicon stuffing encasing

)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving

FEATURES:
Superbright 3528 SMD top LED, high intensity and reliability.
Long life span 50,000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption

Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting
