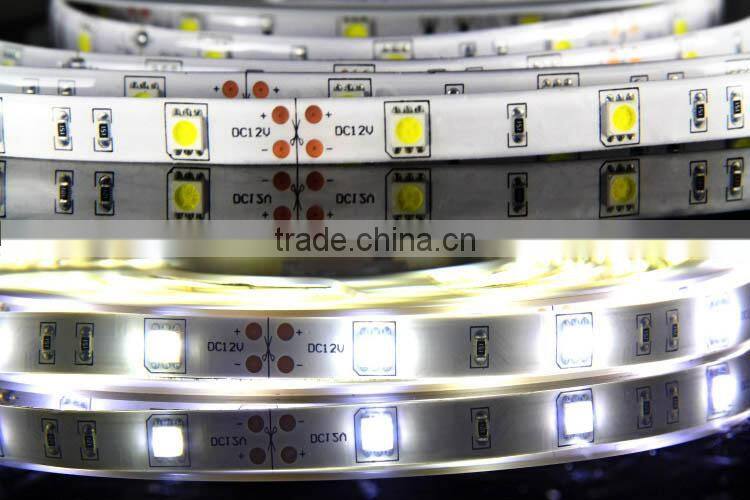

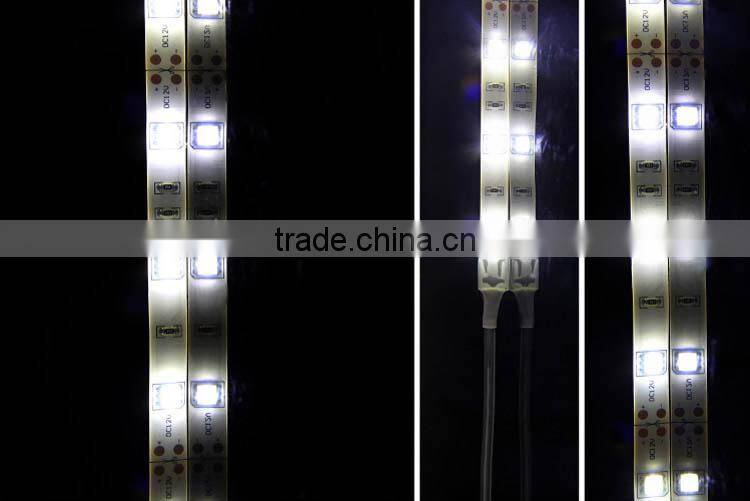

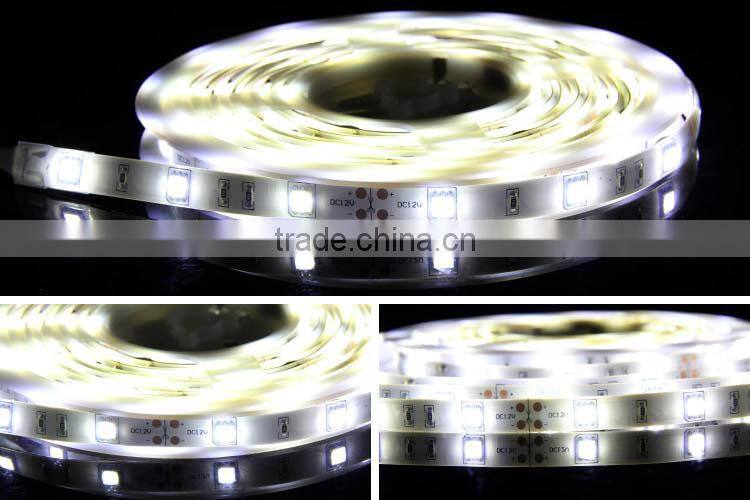

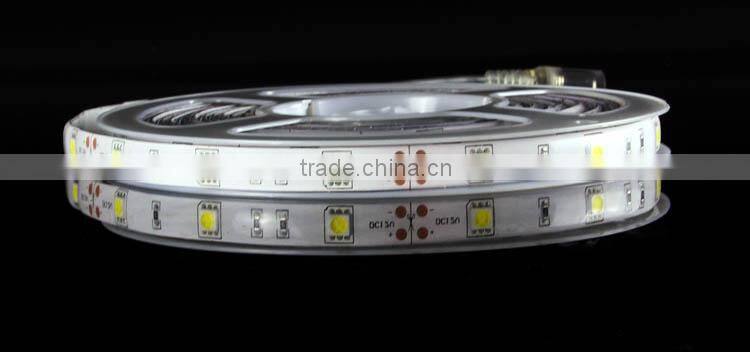

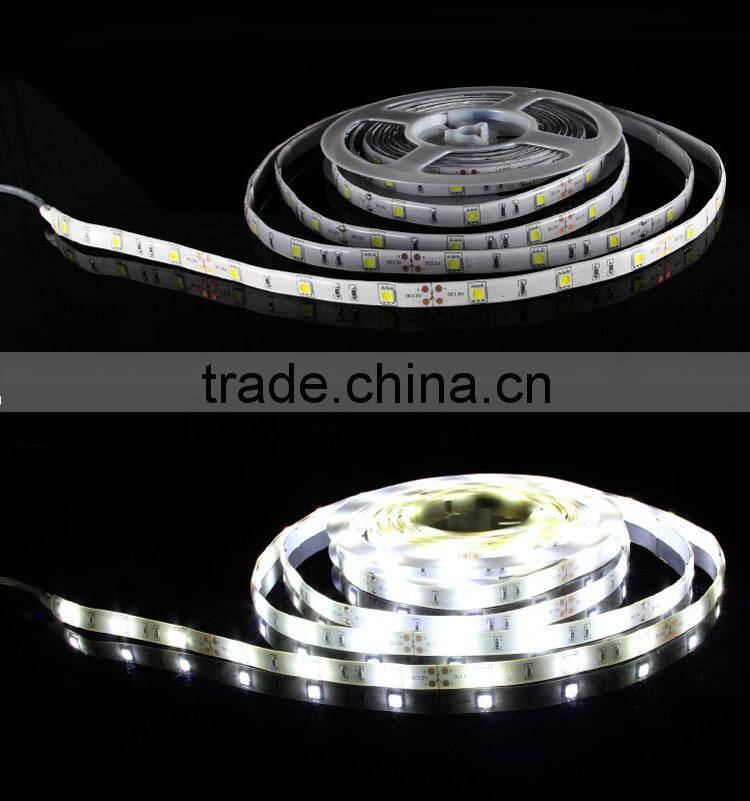

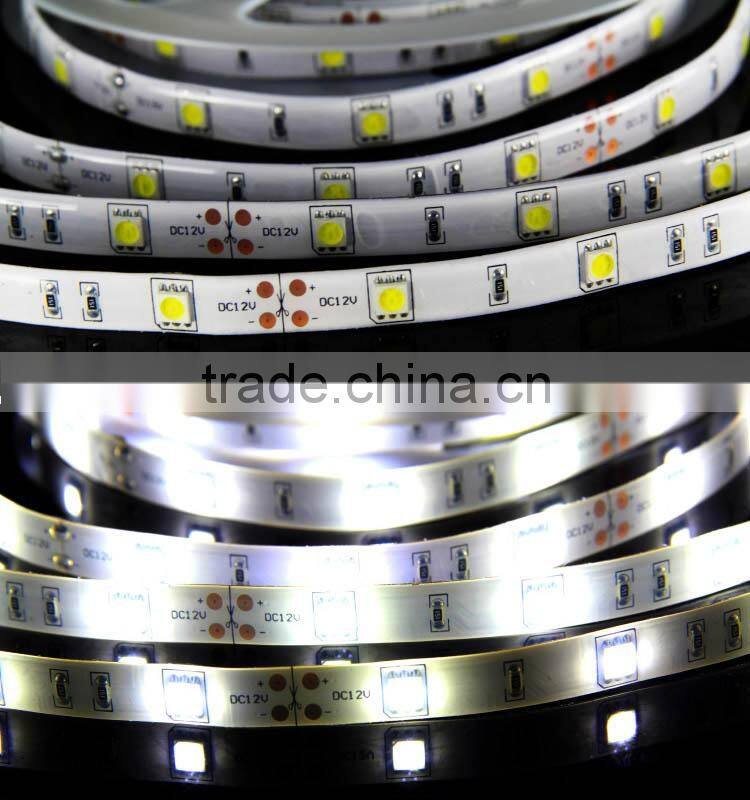

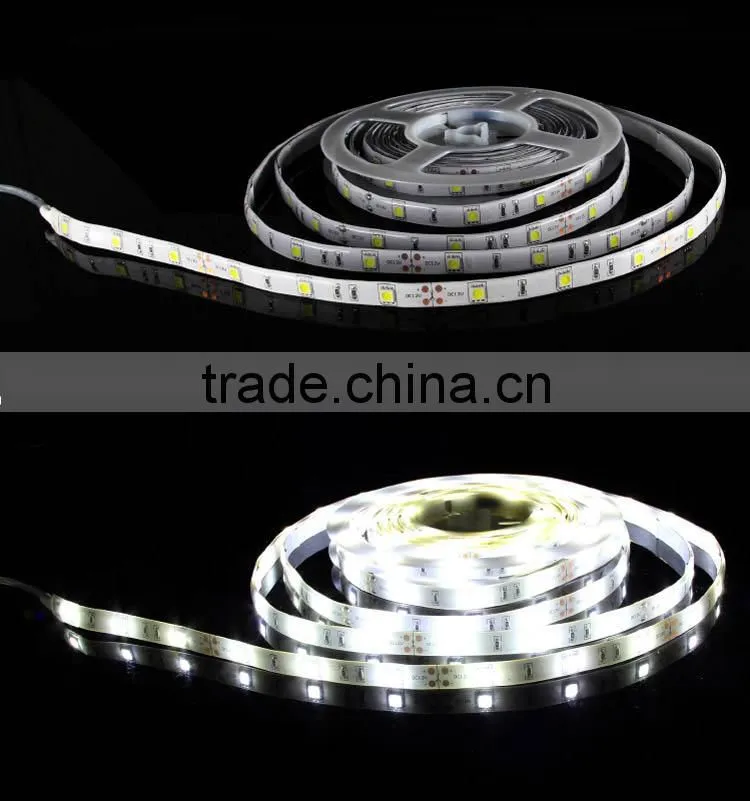

2014 New Led Strip Light SMD5050 Led Tape 30leds/m IP65 Waterproof Led Strip Lights

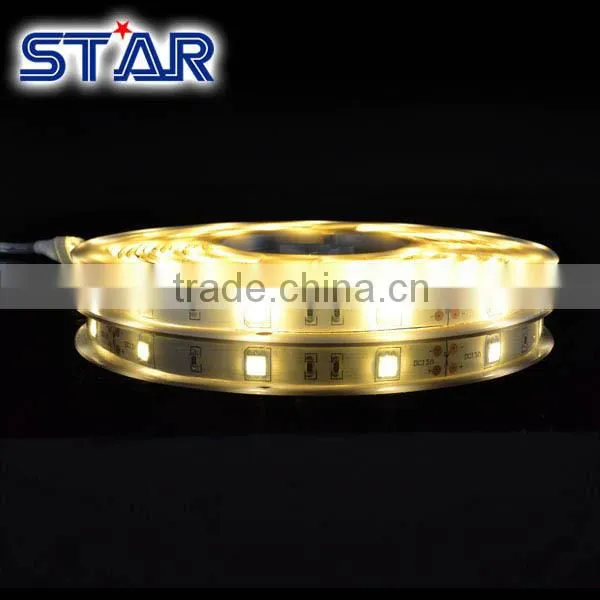

2014 New Led Strip Light SMD5050 Led Tape 30leds/m IP65 Waterproof Led Strip Lights photo-1
US$ 3 - 5 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
5050
Type:
Flex LED Strips
Input Voltage(V):
12V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Hongkong
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source 5050
Type Flex LED Strips
Input Voltage(V) 12V
Lamp Power 36W
Lamp Luminous Flux(lm) 12-14LM/LED
Color Temperature(CCT) 6000-8000K
Working Temperature(℃) -10, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name OGX
Model Number ST50W30D65

Specifications

SMD 5050 Ultar light LED Strip with IP65;
High Brightness ;
5M/Roll 30led/m;
3years warranty;
CE Rohs

2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights











1.High flexibility – adaptable to round shapes.
2.Installation with 3M adhesive tape on the strip’s backside (self adhesive).
3.IP65 for outdoor use
4.dimmable or DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller



5050 30led 12v cuttable length:

Technical Data:

IP classification IP65 (for outdoor use)
Current 0.6A
Wattage 36w
Power source 12V DC
Electrical connection 2x cable with 2-PIN to open wires
Maximum quantity per power input 5meter
Operating temperature range –10° C till +45° C
Width x height 10 x 3 mm
Cuttable Every 3leds



Photometric Data

LED type SMD LEDs ULTRA BRIGHT
Luminous flux 12-16LM per led
Colour temperature

white 6000–8000 K
neutral white 4000–4500 K
warm white 2900–3500 K
2700 K 2500–2800 K

CRI

white 70+
neutral white 70+
warm white 60+
2700 K 60+

Beam angle 120°











Description:
Product name: 30pc/M 5050SMD IP65 Waterproof LED Christmas Light
Model: 5050
Voltage: 12VDC
Power: 7.2W/M
LED Qty: 30pc 5050SMD LEDs per meter
Color: R/G/B/Y/W/WW/RGB
IP Rate: IP65
Size: 5000*10*2.2mm
Packing: 5M per reel
Standard: CE certification and RoHS compliance

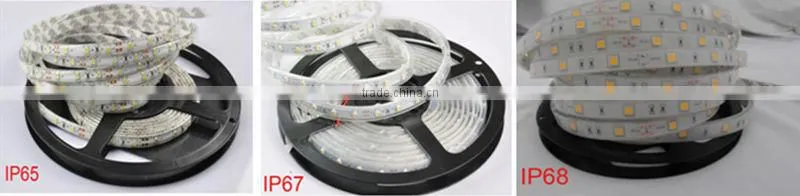

Types of waterproof casing are as follows for your choice:

IP20 Non Waterproof
IP65 Drip silicon
IP66 Silicon tube encasing
IP68 Silicone tube and silicon stuffing encasing
IP67  Half-Silicone tube and silicon stuffing encasing





2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights



)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving







Features:
1. Maintenance free, with 3M adhesive tape on the back or clips for easy installation
2. Solid-state, high shock or vibration resistant
3. Every 3-LED are cuttable for 12V strips, while every 6-LED are cuttable for 24V strips.
4. Super bright SMD top LED , Low power consumption, high intensity
5. Long life: up to 50, 000 hours with lower luminous decay.
6. No RF interference
7. White, Black, Yellow PCB Board are available
8. Flexible SMD LED strip for waterproof Christmas lighting



2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights
Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting





Remarks:



  • All the shape, size, color, brightness is available here and OEM and ODM is welcome.
  • The price is much more flexible and it completely depends on the quantity you need.
  • Sample could be sent ASAP if you need.
  • Welcome your visit at any time.





2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights



 2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights



2014 New Led strip light SMD5050 led tape 30leds/m IP65 waterproof led strip lights
