Home > Products > drying equipment > Feeds mesh belt Dryer
Feeds mesh belt Dryer
- 30 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | YIBU | Model Number | DW | |
| Type | Dryer | Voltage | specified by customer | |
| Power(W) | specified by customer | Dimension(L*W*H) | upon the machine spec | |
| Certification | BUV, ISO14001, ISO9001 | Warranty | one year from the day of finishing the conmissioning and installation | |
| After-sales Service Provided | Engineers available to service machinery overseas |
wooden case or plast film . also , the package on request.
Product Description
Specifications
Feeds mesh belt Dryer, is used for drying vegetable, particle feed, gourmet powder, shredded coconut stuffing, fruitFeeds mesh belt Dryer
Descriptions
This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.
Keyword:
Vegetable Dryer ; Agar-agar dryer; Seaweed dryer; Fruit Dryer; Leaf dryer; Herb leaf dryer; Vegetable Drier ; Agar-agar drier; Seaweed drier; Fruit Drier; Leaf drier
Principle

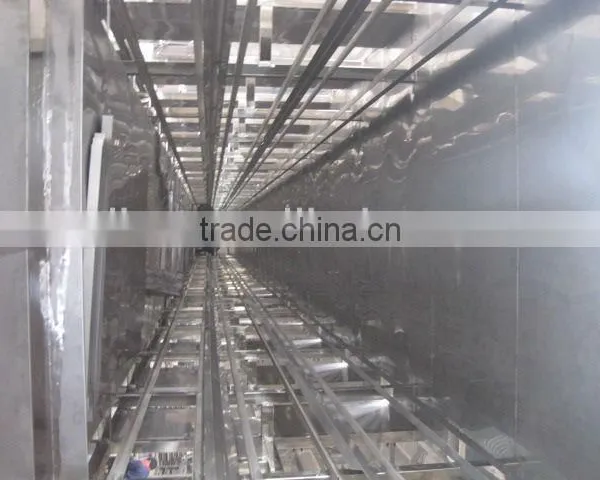

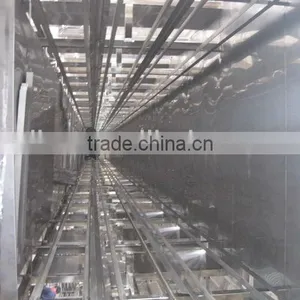

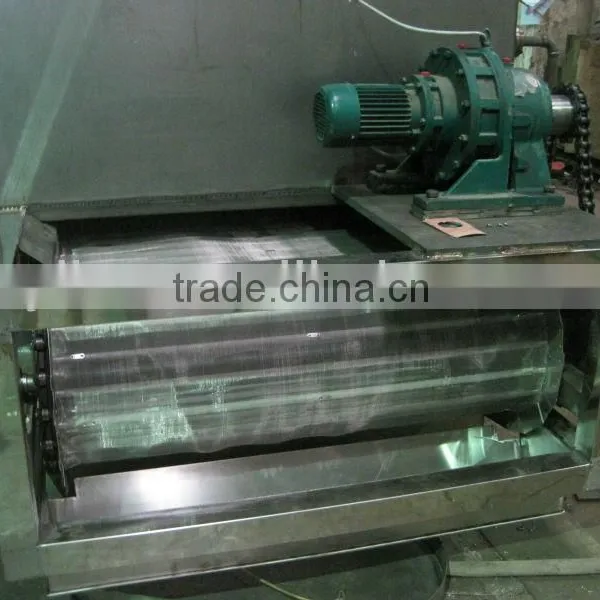

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.
Application
De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fibre, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.
Technical parameters
| spec | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 |
| unit number | 4 | 6 | 4 | 6 | 4 | 6 |
| belt Width m | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 |
| drying section Length m | 8 | 10 | 8 | 10 | 8 | 10 |
| Thickness of the material mm | 10-80 | |||||
| Temperature | 60-130 | |||||
| steam Pressure Mpa | 0.2-0.8 | |||||
| steam Consumption Kgsteam/KgH2O | 2.2-2.5 | |||||
| drying strength KgH2O/h | 6-20kg/m2.h | |||||
| total power of blower Kw | 3.3 | 4.4 | 6.6 | 8.8 | 12 | 16 |
| total power of equipment KW | 4.05 | 5.15 | 7.35 | 9.55 | 13.1 | 17.1 |
Specialized machine for vegetable
| unit | three units series specialized machine for vegetable | five layers specialized machine for vegetableFrame type | ||
| model | DWP-2-10-3 | DWF-2-10-3 | DW5-3-12 | |
| effective belt width | m | 2 | 2 | 3 |
| effective belt length | m/unit | 10 | 10 | 12 |
| tandemquantity | 3 | 3 | ||
| layers | 5 | |||
| vegetable capacity | kg/h | 600 | 720 | 2000 |
| evaporate strength | kg/h | 400-510 | 480-640 | 1440-1800 |
| consumption of steam | Kgsteam/KgH2O | 2.2-2.5 | 2.2-2.5 | 2.2-2.4 |
| heat radiation area | m2 | 900 | 1440 | 2600 |
| total power of the machine | kw | 70 | 52 | 150 |
| overall size | m | 33.2×2.58×2.8 | 33.2×2.27×2.85 | 15.3×4.3×8.5 |
| heat source type | steam, theermal conductivity oil, hot air furnace, electric | |||
Specialized machine for feed(frame type)
| Specialized machine for feed (frame type) | ||
| model | unit | DWZ-3×12 |
| effective belt width | m | 3 |
| effective belt length | m/unit | 12 |
| using temperature | 80-130 | |
| pressure of steam | Mpa | 0.4-0.8 |
| drying time | min | 35-50 |
| thickness of material | cm | 5-8 |
| drying strength | kg/h | 6-20 |
| consumption of steam | Kgsteam/KgH2O | 2-2.4 |
| total power of the machine | kw | 76 |
| overall size | m | 15.1×4.3×3.4 |
Company Profile
Changzhou Yibu Drying Equipment Co., Ltd. is a leading manufacturer of drying, mixing, granulating and grinding equipment in mainland China. Our company covers an area of more than 50,000 square meters, and has over 180 sets of special processing equipment and powerful technical force. We are a specially-designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation. Especially, we are ISO9001 and ISO14001 certified. The founder of our company, Mr. Zha Guocai has devoted himself in the research, manufacture, production and business of drying equipment for over thirty years. Our company pays much attention to science and technology renovation and has cooperated with many institutes located in Shanghai, Wuhan and Chongqing, such as the Ministry of Chemical Industry and Tsinghua University. Therefore we can launch 3 to 5 new varieties into the market every year. In 1998, through approval of state relevant departments, our company set up China Research Center of Drying and Granulating that can research new process, develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We also have many testing machines in our lab for clients to make trials. Currently, our products have been sold to nearly 50 countries and regions around the world, including the USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Malaysia, Philippines, Korea, Japan, Taiwan, and Hong Kong. If high quality drying, blending, granulating and grinding equipment and professional services and technical support are what you are looking for, please do not hesitate to contact us. You are welcome to come to our factory to make investigation and trials.
