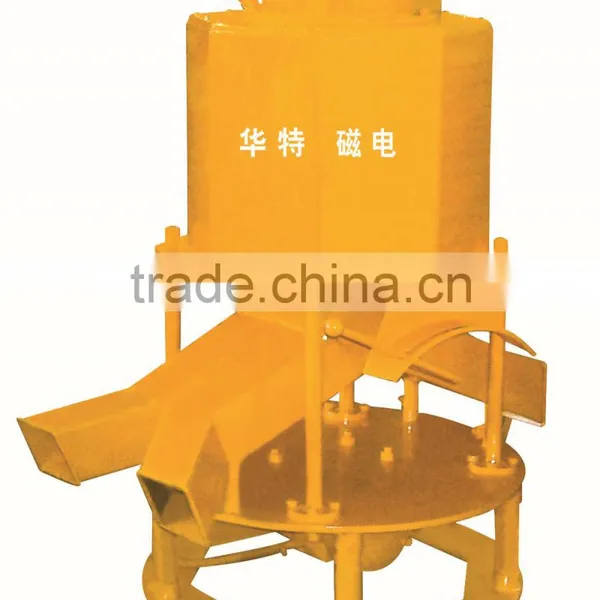

CXJ -100-II Dry Powder Magnetic Separator
Application:
1. It can be used in refractory ,nonmetallic mineral, carbon,food ,chemical materials ,etc.
2. The series of CXJ Dry permanent magnetic separator (from single cylinder to four cylinders) can eliminate iron from dry powder continuously and automatically .its magnetism is designed uniquely. The magnetic source is permanent magnetic NdFeB materials ,which is the king of magnetism. It has strong magnetic field and attractive force, and high rate of eliminating iron ,
3.It also has the characteristics of maintenance-free ,energy- saving ,safety and reliability ,we can control the quantity of materials of different particles.
4.It has four magnetic force to be choose (1000-10000Gs)
Iterm |
Dimension mm |
Roller length mm |
Roller diameter mm | Magnetic field intensity Gs | Roller quantity | Roller speed r/min | Productivity T/h | Particle Materials mm | Electric Power Kw |
Parameter | |||||||||
Model | |||||||||
CXJ-40-1 | 550×460×660 | 400 | 300 | ≥3800 | 1 |
17-82 | ≤0.6 | ≤5 | 0.55 |
CXJ-60-1 | 830×710×930 | 600 | 400 | ≥4000 | 1 | ≤1.5 | ≤5 | 0.75 | |
CXJ-60-2 | 1070×925×1240 | 600 | 320 | First cylinder≥1000 | 2 | ≤2 | ≤5 | 1.5 | |
Second cylinder≥4000 | |||||||||
CXJ-60-3 | 1150×1070×1700 | 600 | 406 | First cylinder≥1000 | 3 | ≤2.5 | ≤6 | 1.5 | |
Second cylinder≥3000 | |||||||||
Third cylinder≥4500 | |||||||||
CXJ-80-1 | 1180×820×1040 | 800 | 406 | ≥4000 | 1 | ≤2 | ≤8 | 0.75 | |
CXJ-80-2 | 1420×1220×1570 | 800 | 406 | First cylinder≥1000 |
2 | ≤2.5 | ≤8 | 1.5 | |
Second cylinder≥4500 | |||||||||
CXJ-80-3 | 1770×1260×1570 | 800 | 406 | First cylinder≥1000 |
3 | ≤3 | ≤8 | 1.75 | |
Second cylinder≥3000 | |||||||||
Third cylinder≥4500 | |||||||||
CXJ-100-1 | 1300×1020×1240 | 1000 | 508 | ≥4500 | 1 | ≤2.5 | ≤10 | 1.1 | |
CXJ-100-2 | 1620×1420×1770 | 1000 | 508 | First cylinder≥1000 |
2 | ≤4 | ≤10 | 2.2 | |
Second cylinder≥4500 | |||||||||
CXJ-100-3 | 1970×1460×2309 | 1000 | 508 | First cylinder≥1000 |
3 | ≤5.5 | ≤10 | 3 | |
Second cylinder≥3000 | |||||||||
Third cylinder≥4500 |
