12v 3528 60LED/m IP67 Waterproof Flexible LED Strip Lighting

Name: 12v 3528 60LED/m IP67 Waterproof Flexible LED Strip Lighting
Brand: STAR
Availability: InStock

FOB Price

US$ 1.45 - 7 / Meter

5 Meters(Min. Order)

Port Shenzhen
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	3528	Type	Flex LED Strips
Input Voltage(V)	12	Lamp Power	24
Lamp Luminous Flux(lm)	4-8	Color Temperature(CCT)	2700-3200
Working Temperature(℃)	-10, +45	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum	Certification	CE
Emitting Color	Warm White	Place of Origin	Guangdong, China
Brand Name	STAR	Model Number	ST35WW60D65

Product Description

Specifications

Color:warm white
IP Classfication:IP65
Length:5metrs/roll
MOQ:5metrs
Warranty:2-3yeears

Flexible LED Strip Light 12v 300led IP65 3528 Warm White 5meters

The STAR FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of illumination. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.

1.High flexibility – adaptable to round shapes.
2.Installation with 3M adhesive tape on the strip’s backside (self adhesive).
3.IP65 for outdoor use
4.dimmable or DMX 512, DALI, 1-10 V controllable by STAR RGB MULTI power supplies/controller

Cuttable length by all 3leds(5cm)

Technical Data

IP classification	IP65 (for outdoor use)
Power source	DC12V
Electrical connection	2x cable with 2-PIN to open wires
Maximum quantity per power input	5meters
Operating temperature range	–10° C till +45° C

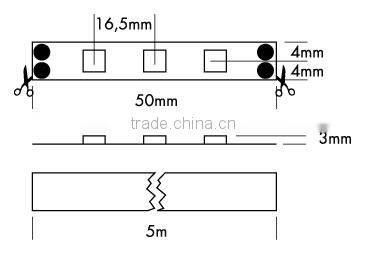

Width x height	8 x 3 mm
Cuttable	all 3 LEDs (5 cm)

Photometric Data

LED type	SMD Chip
Luminous flux	white 280 Lumen per m neutral white 320 Lumen per m warm white 370 Lumen per m 2700 K 330 Lumen per m
Colour temperature	white 6000–8000 K neutral white 4000–4500 K warm white 3000–4000 K 2700 K 2500–2800 K
CRI	white 70+ neutral white 70+ warm white 60+ 2700 K 60+
Beam angle	120°
Wattage	4.8w/m,24w/reel
Working current	0.4A

Types of waterproof casing are as follows for your choice:

IP20	Non Waterproof

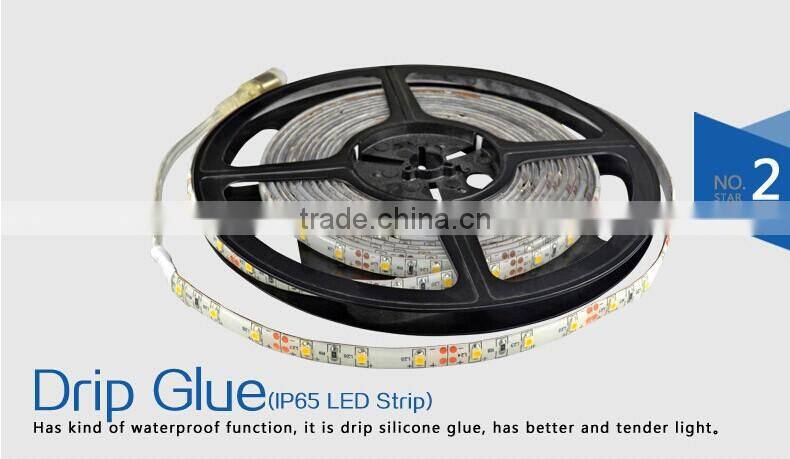

IP65	Drip silicon

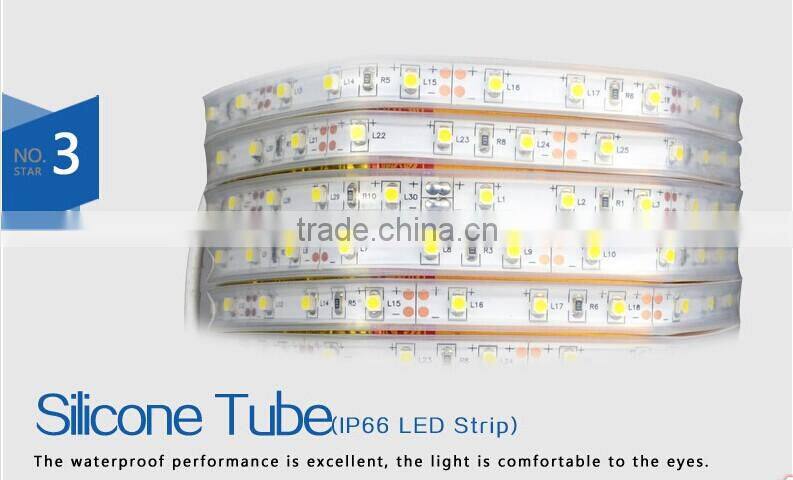

IP66	Silicon tube encasing
IP68	Silicone tube and silicon stuffing encasing

IP67	Half-Silicone tube and silicon stuffing encasing

1)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion

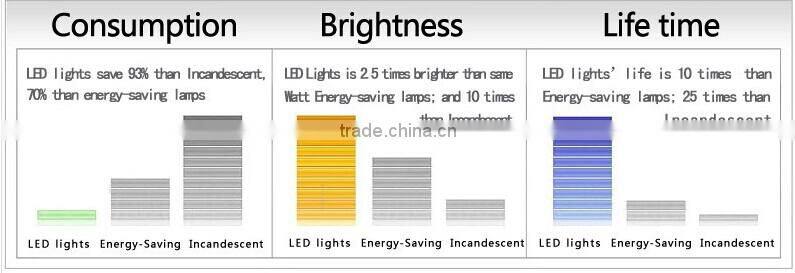

4)Energysaving

FEATURES:

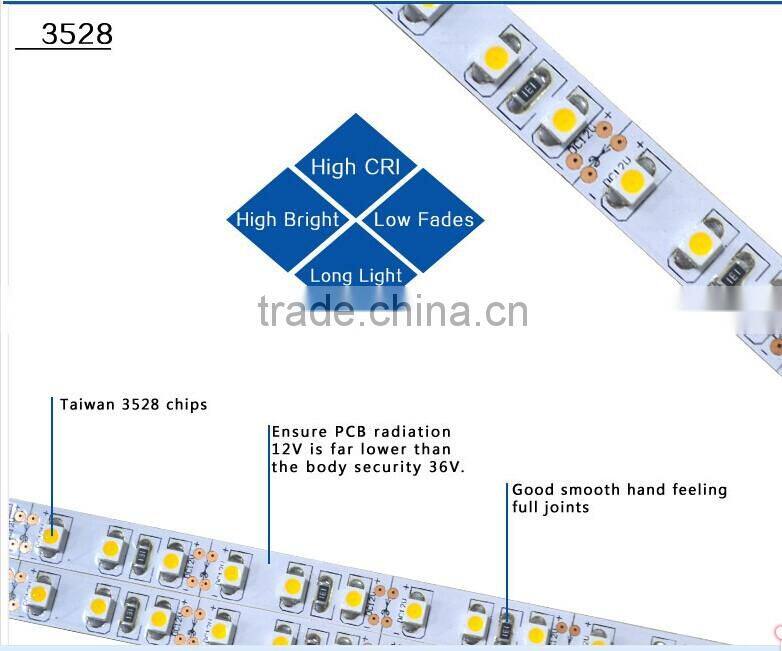

Superbright 3528 SMD top LED, high intensity and reliability.
Long life span 50,000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption

Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting

Product Description

Operating temperature: -25 ~ +60

Waterproof SMD3528 60LED/M LED Strip Light Specifications:

Epoxy Plated Waterproof SMD3528 60LED/M DC12V LED Strip with Adhesive Back Tape
Part No.	Colors	LED Qty	Size(mm)	Voltage	Power	Beam angle	IP Rate	Packing

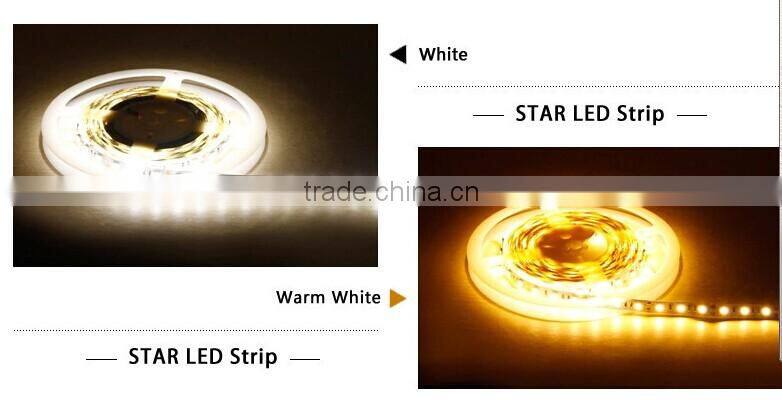

3528WW-60	Warm White	60/M	500103	12V	4.8W/M	120	IP65	5M/Roll
3528CW-60	Cool White	60/M	500103	12V	4.8W/M	120	IP65	5M/Roll

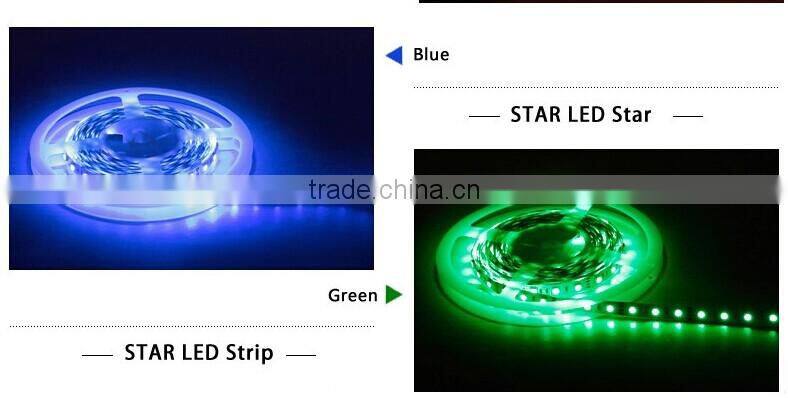

3528B-60	Blue	60/M	500103	12V	4.8W/M	120	IP65	5M/Roll

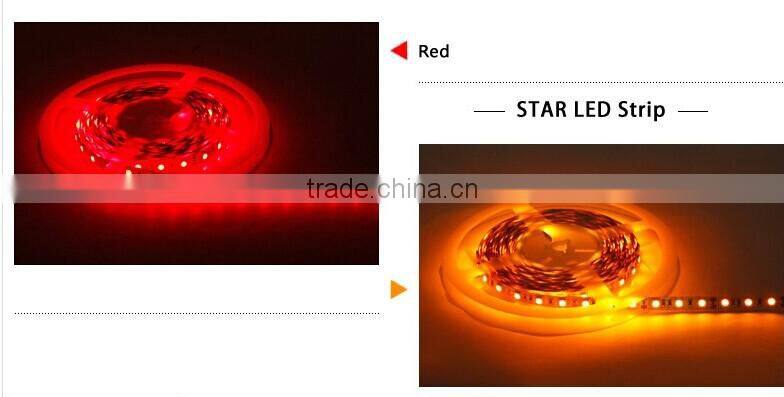

3528R-60	Red	60/M	500103	12V	4.8W/M	120	IP65	5M/Roll
3528G-60	Green	60/M	500103	12V	4.8W/M	120	IP65	5M/Roll
3528Y-60	Yellow	60/M	500103	12V	4.8W/M	120	IP65	5M/Roll
3528P-60	Purple	60/M	500103	12V	4.8W/M	120	IP65	5M/Roll

Tube Waterproof SMD3528 60LED/M DC12V LED Strip
Part No.	Colors	LED Qty	Size(mm)	Voltage	Power	Beam angle	IP Rate	Packing
3528WW-60TP	Warm White	60/M	500104	12V	4.8W/M	120	IP66	5M/Roll
3528CW-60TP	Cool White	60/M	500104	12V	4.8W/M	120	IP66	5M/Roll
3528B-60TP	Blue	60/M	500104	12V	4.8W/M	120	IP66	5M/Roll
3528R-60TP	Red	60/M	500104	12V	4.8W/M	120	IP66	5M/Roll
3528G-60TP	Green	60/M	500104	12V	4.8W/M	120	IP66	5M/Roll
3528Y-60TP	Yellow	60/M	500104	12V	4.8W/M	120	IP66	5M/Roll
3528P-60TP	Purple	60/M	500104	12V	4.8W/M	120	IP66	5M/Roll

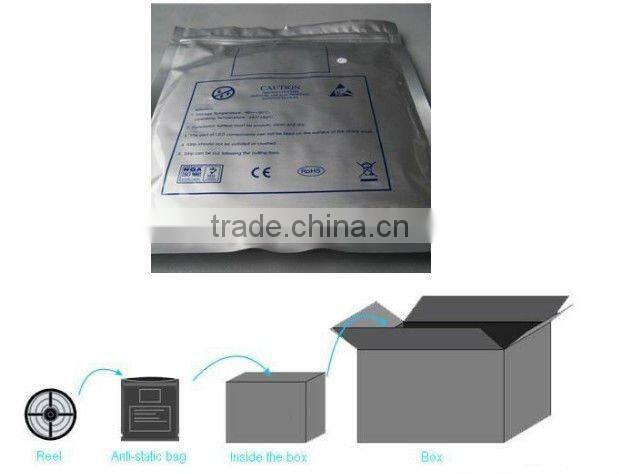

Packing:
