Oxide Spin Flash Dryer For Active Zine
- ShangHai Port
- T/T
You May Like
-
Food Series Flash Dryer
-
DG Type Air Stream Dryer for Starch for Starch Dryer
-
DG Series Air Stream Dryer for Starch(air Stream Dryer (drying Machine)for Starch)
-
DG Type Air Stream Dryer for Starch for Drying Maize, Potato
-
DG Series Air Stream Dryer For Starch
-
DG Series Air Stream Dryer Used in Medical Agent
Product Details
| Condition | New | Type | Other, Oxide Spin Flash Dryer For Active Zine | |
| Place of Origin | Jiangsu, China | Brand Name | Oxide Spin Flash Dryer For Active Zine | |
| Model Number | XSG | Voltage | According to customer needs | |
| Power(W) | 5-9(W) | Dimension(L*W*H) | 250*2800(mm) | |
| Weight | one ton | Certification | ISO9001 ISO 14001 | |
| Warranty | one years | After-sales Service Provided | Engineers available to service machinery overseas |
Export wooden cases
Product Description
Descriptions
Our company and Shengyang Chemical Research Institute of the Chemical Ministry of the State have developed this machine based on absorbing the foreign advanced equipment and technology .This is a new kind of drying equipment used for drying the materials ,such as paste state ,cake state ,thixotropy ,thermal sensitive powder and particles .Our factory is equiped with the testing machine which can be used for carrying out the drying tests of various materials for our users and for to provide the parameters to select the applicable machine .
Principle
The hot air enters into the bottom of the dryer in tanget direction .Under the driving of the stirre ,a powerful rotating wind area is formed .The paste state materials enter into the dryer though the screw charger .Under the powerful effect of stirring at high-speed rotation ,the materials are distributed under the function of strike ,fiction and shearing force .The block state materials will soon be smashed and contact the hot air full and the material are heated and dried .The dried materials after the de-watering will go up with the hot-air flow .The grading rings will stop and keep the big particles .Small partidcles wll be discharged out of the dryer from the ring center and will be collected in the cyclone separator and dust collector .The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force and be smashed again after they fall down to the bottom
Features
This machine combines the whirl technology with the fluidity ejection and smamshing step technologied
The equipment is compact and small in size ,high in production efficiency and continuous in the production .It has realized that small equipment can perform the large production
The drying capacity for this machine is big but its energy consumption is low .Its heat efficiency is high
The matrial stay time is very short .The quality of the final products is very good .The machine can be used for drying the heat sensitive materials
For the negative pressure or the micro-negative pressure the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution

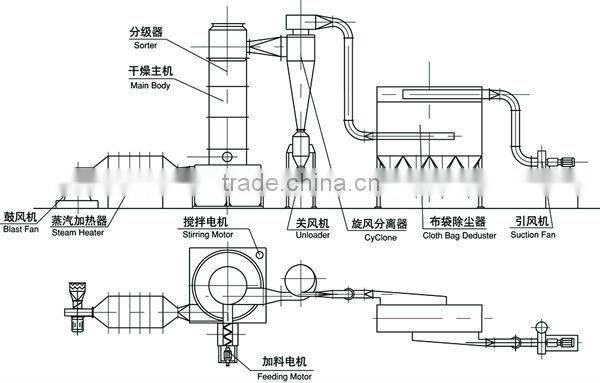

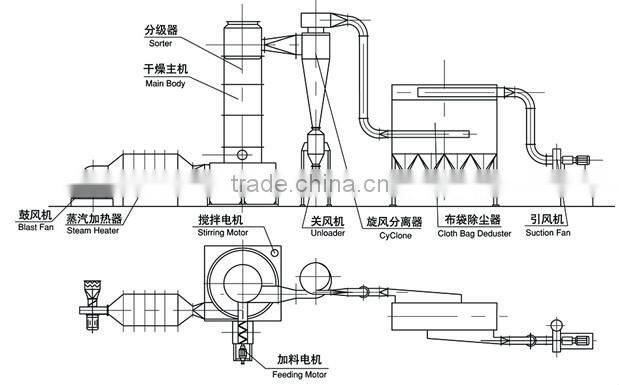

Schermatic of stracture

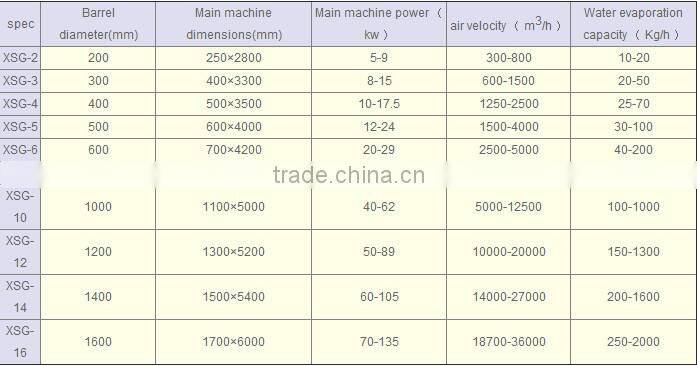

Technical parmeters
Typical costomers
Qidong Weien Yinong chemical co.,Ltd .
Sanjiu Changzheng Pharmceutical Co.,Ltd.
Shanghai Research Institute of Chemical Indusry.
shanghai xuhang Pharmceutical Factory .
Henan Pingdingshan Yicheng Carbonization Silicon Product Co.,Ltd.
Henan Luoyang Asia Beer Co.,Ltd.
Henan Anyang Jiuzhou Pharmceutical Co.,Ltd.
Shandong Shengli Biota Engineering Co.,Ltd.
Shaoguan Jiqi Pharmceutical Co.,Ltd.
Jiangsu Taibai Group.
Danyang Jiaoguang Material Co.,Ltd.
Anhui Fenglenong Chemical Co.,Ltd.
Hunan Kaifeng New Material Co.,Ltd.
Ningxia Qiyuan Pharmceutical Co.,Ltd.
Ningxia Yipin Biota Technical Co.,Ltd.
Export Iran,Australia.
