IP20 60led 24w 12v 335 Side View Led Stripe Light

IP20 60led 24w 12v 335 Side View Led Stripe Light thumbnail-1
IP20 60led 24w 12v 335 Side View Led Stripe Light thumbnail-2
IP20 60led 24w 12v 335 Side View Led Stripe Light thumbnail-3
IP20 60led 24w 12v 335 Side View Led Stripe Light thumbnail-4
IP20 60led 24w 12v 335 Side View Led Stripe Light thumbnail-5
IP20 60led 24w 12v 335 Side View Led Stripe Light photo-1
IP20 60led 24w 12v 335 Side View Led Stripe Light photo-2
IP20 60led 24w 12v 335 Side View Led Stripe Light photo-3
IP20 60led 24w 12v 335 Side View Led Stripe Light photo-4
IP20 60led 24w 12v 335 Side View Led Stripe Light photo-5
US$ 1 - 2 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
335
Type:
Flex LED Strips
Input Voltage(V):
12
Contact Supplier Request Quote Chat Now
Shenzhen Ouge Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 335
Type Flex LED Strips
Input Voltage(V) 12
Lamp Power 24
Lamp Luminous Flux(lm) 360
Color Temperature(CCT) 6000
Working Temperature(℃) -10, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name OGX
Model Number 335

Specifications

1, LED qty: 300 pcs SMD 335 LED Strip
2, Working Voltage: DC 12 V
3, Working Current: 340-380mA
4, LED View Angle: 90 DEG

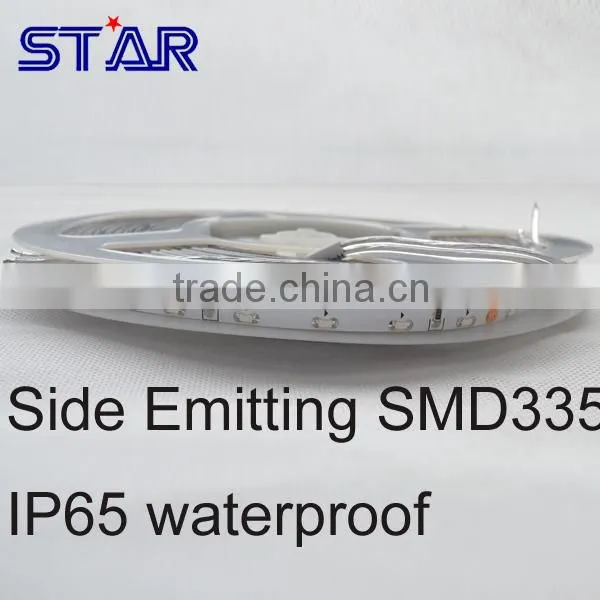

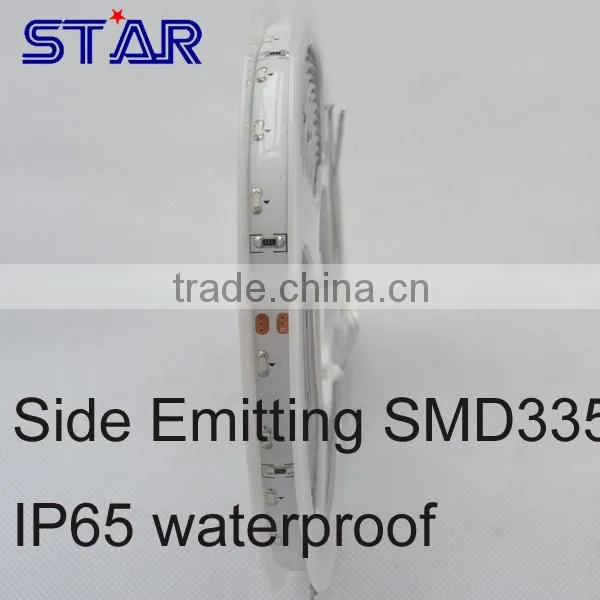

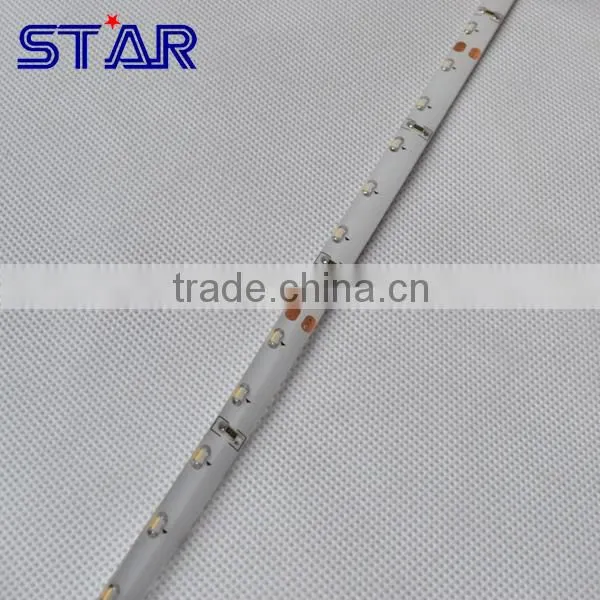

335 Side View LED Strip Light 60LED/M IP65 waterproof for backlight



The STAR FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of background lighting. Due to their shallow design and the individually adaptable lengths the STAR FLEX STRIPS offer a wide spectrum of application possibilities.



1.High flexibility – adaptable to round shapes.
2.Installation with 3M adhesive tape on the strip’s backside (self adhesive).
3.LEDs side emission of light.
4.dimmable or DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller





12V 335  Side view led strip cuttable length by every 3leds:









Technical Data



IP classification IP65 for OUTDOOR decoration
Power source 12 VDC
Electrical connection 2x cable with 2-PIN to open wires
Maximum quantity per power input 5 m
Operating temperature range –10° C till +45° C
PCB Size 8mm 5mm
Cuttable all 3 LEDs (5 cm)







Photometric Data



LED type SMD CHIP 335
Luminous flux

blue 50 Lumen per m
white 280 Lumen per m
warm white 290 Lumen per m
Wave length blue 464 nm
Colour temperature

white 6000–8000 K
warm white 2900–3500 K
CRI

white 70+
warm white 60+
Beam angle 90°
Wattage 4.8w/m,24w each 5meters

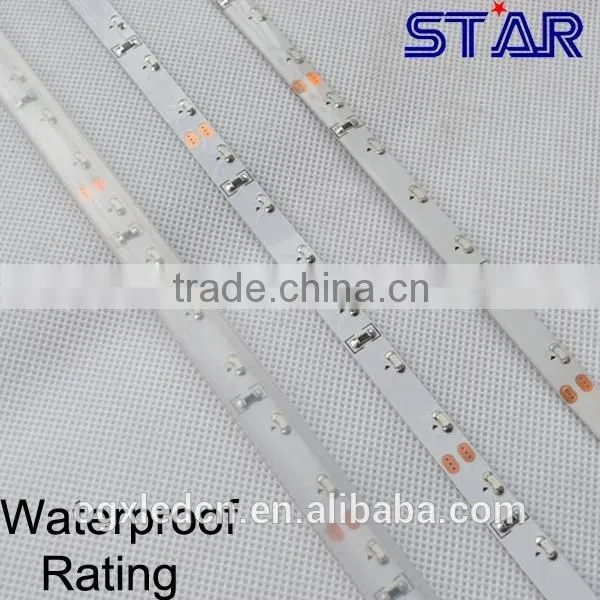

ypes of waterproof casing are as follows for your choice:

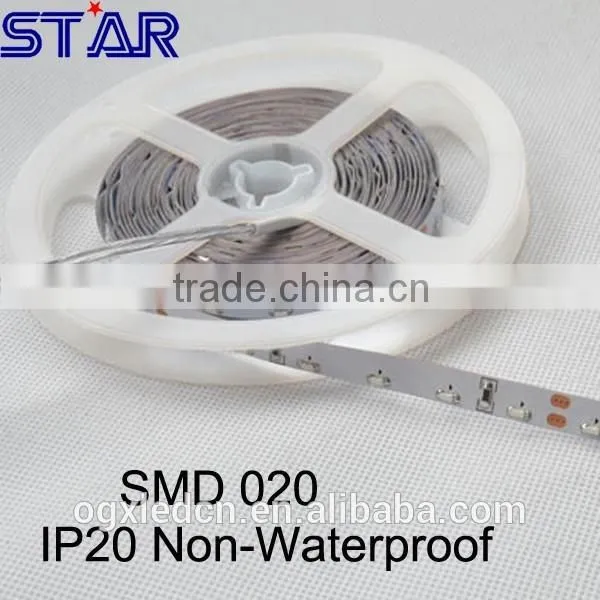

IP20 Non Waterproof

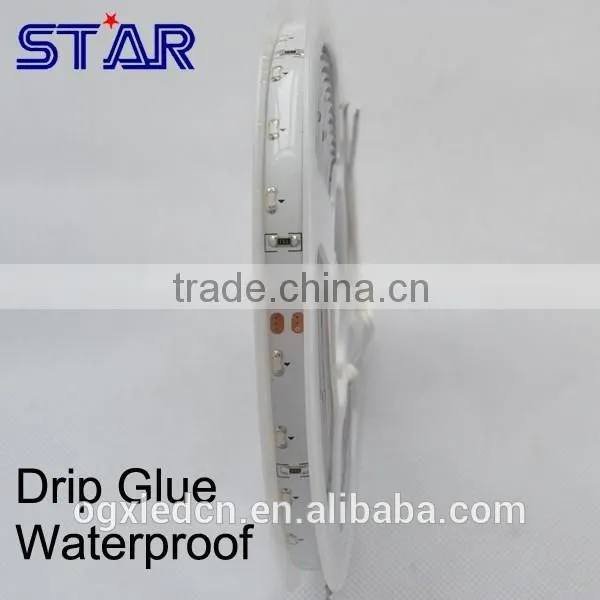

IP65 Drip silicon

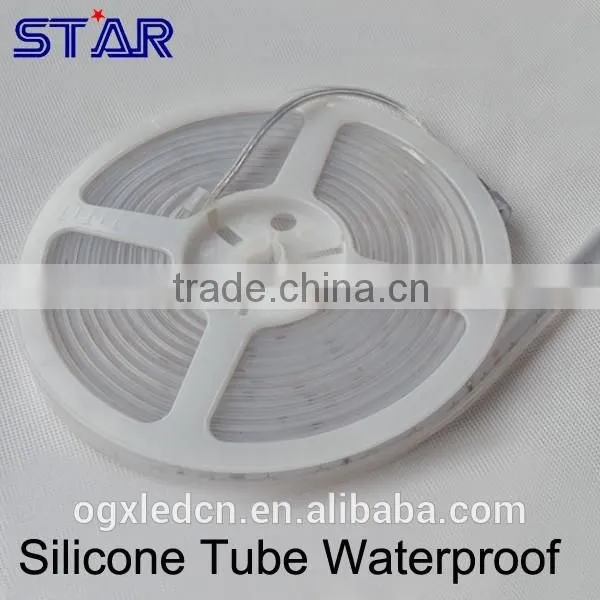

IP66 Silicon tube encasing
 IP68   Silicone tube and silicon stuffing encasing





Model Color Voltage PCB Width(mm) LEDs Qty SMD Chip Wattage
ST335R60D20 RED DC12V 8mm 5mm 60led/m 335 4.8w/m
ST335Y60D20 YELLOW DC12V 8mm 5mm 60led/m 335 4.8w/m
ST335B60D20 BLUE DC12V 8mm 5mm 60led/m 335 4.8w/m
ST335G60D20 GREEN DC12V 8mm 5mm 60led/m 335 4.8w/m
ST335W60D20 White DC12V 8mm 5mm 60led/m 335 4.8w/m


 1)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving



FEATURES:
Superbright 3528 SMD top LED, high intensity and reliability.
Long life span 50,000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption




Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting

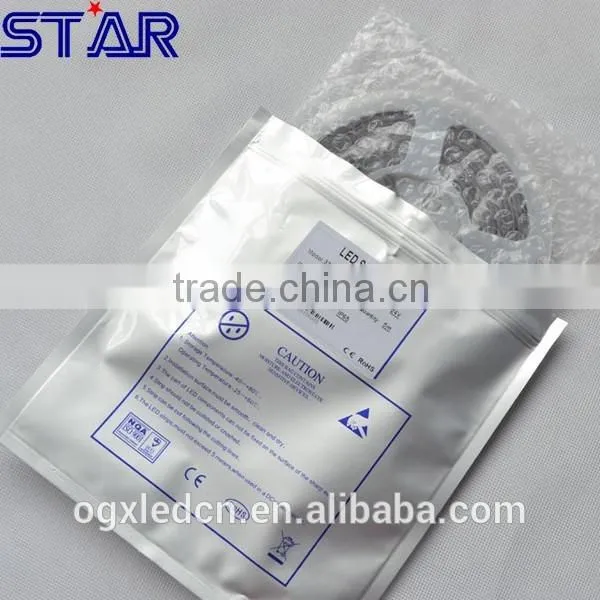

Packing: 5m/reel
