12V RGB IP65 Waterproof Flexible LED Tape Light

12V RGB IP65 Waterproof Flexible LED Tape Light photo-1
12V RGB IP65 Waterproof Flexible LED Tape Light photo-2
12V RGB IP65 Waterproof Flexible LED Tape Light photo-3
12V RGB IP65 Waterproof Flexible LED Tape Light photo-4
12V RGB IP65 Waterproof Flexible LED Tape Light photo-5
US$ 1.8 - 2.5 MOQ: 5 Meters
Key Specifications
Get Latest Price
Model Number:
OGX-5050
Chip Material:
AlGaInP
Emitting Color:
Other, Tri-Color(Red-Blue-Green), RGB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Model Number OGX-5050
Chip Material AlGaInP
Emitting Color Other, Tri-Color(Red-Blue-Green), RGB
Power Other, 36
Power Dissipation 36
Color Rendering Index(Ra) 70
Operating Temperature(℃) -10, +45
Storage Temperature(℃) -10, +45
Place of Origin Guangdong, China
Brand Name OGX
Certification CE, CE

Specifications

LED Chip:5050
Color:rgb
IP65 waterproof
Warrany:2years
CE.RoHS

RGB 5050 SMD flexible led strip 30 LED/M 36W waterproofIP65, IP66, IP68/300leds/150leds





The STAR FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of illumination. Due to their shallow design and the individually adaptable lengths the STAR FLEX STRIPS offer a wide spectrum of application possibilities.



1.3 colours on one chip, therefore 100% smooth colour mixing.
2.High flexibility – adaptable to round shapes.
3.Installation with mounting clips with 3M adhesive tape on the strip’s backside (self adhesive).
4.dimmable, autom. colour change, DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller



5050 RGB 12V 60led cuttable length:

Technical Data:

IP classification  IP20 for outdoor decoration only
Power source 12 VDC Common Anode (CA)
Electrical connection 2x cable with 4-PIN to open wires
Maximum quantity per power input 5 m
Operating temperature range –10° C till +45° C
Width x height 10 x 2,5 mm
Cuttable every 3 leds



Photometric Data:

LED type SMD RGB 3-in-1 LEDs
Luminous flux

red 70 Lumen per m
green 220 Lumen per m
blue 50 Lumen per m
r+g+b (white) 330 Lumen per m

Wave length

red 623 nm
green 525 nm
blue 464 nm

Beam angle 120°



Flexible & soft PCB can be bent into any shape, the length can be adjustable or cuttable every three leds



3M Adhesive Tape on the back

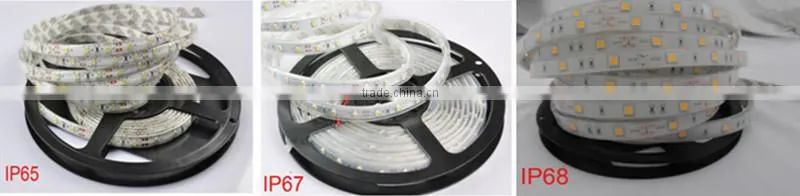

Types of waterproof casing are as follows for your choice:

IP20 Non Waterproof
IP65 Drip silicon
IP66 Silicon tube encasing
IP68 Silicone tube and silicon stuffing encasing
IP67  Half-Silicone tube and silicon stuffing encasing





1)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving



FEATURES:
Superbright 5050 SMD top LED, high intensity and reliability.
Long life span 50,000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption









Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting

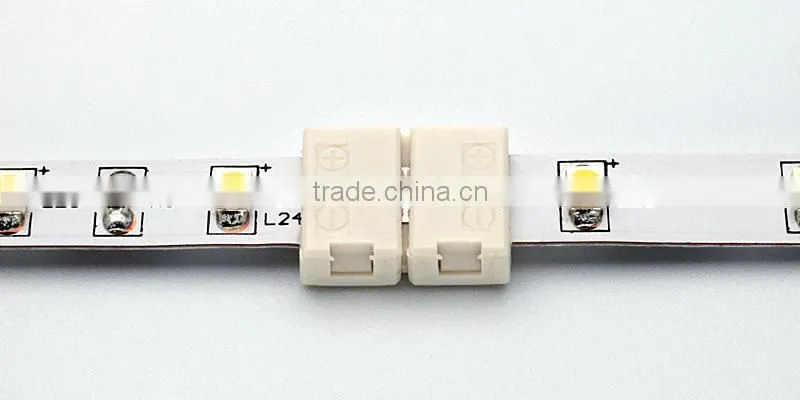

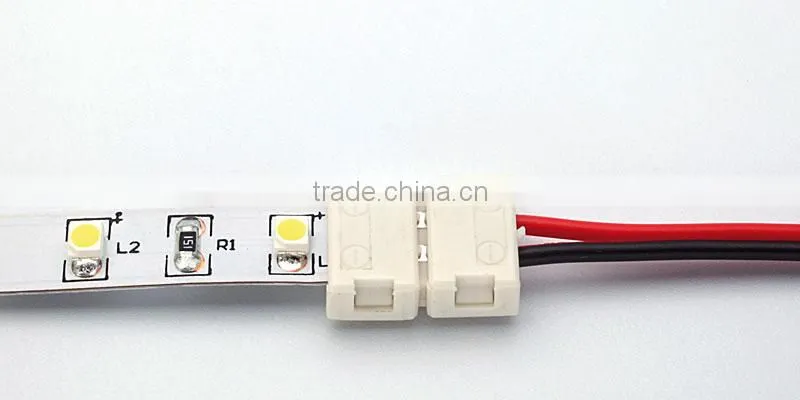

Solderless LED Strip accessories:

IP66 waterproof mounting clips:



Length:5meter each roll,10meters/reel
