New Dimmable LED Strip Light SMD4014 12V Non Waterproof 120leds/m (White 60 Leds With Warm White 60 Leds) LED Tape With Dimmer

Specifications

New Dimmable MULTI WHITE COLOR LED Strip Light SMD4014 12V Non Waterproof 120leds/m 2700-13000K (White 60 leds  with Warm White 60 leds) LED Tape  with Dimmer

The STAR FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of illumination. Due to their shallow design and the individually adaptable lengths the STAR FLEX STRIPS offer a wide spectrum of application possibilities.

1.High flexibility – adaptable to round shapes.
2.Installation with 3M adhesive tape on the strip’s backside (self adhesive).
3.dimmable or DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller

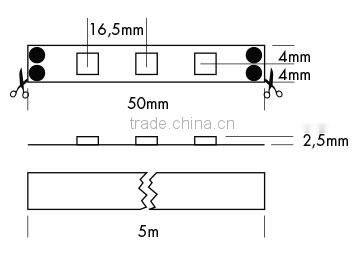

SMD4014 120led 12v cuttable length:

Technical Data:

Photometric ata:

Flexible & soft PCB can be bent into any shape, the length can be adjustable or cuttable every three leds

3M Adhesive Tape on the back

Types of waterproof casing are as follows for your choice:

1)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving

FEATURES:
Superbright 4014 SMD top LED, high intensity and reliability.
Long life span 50,000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption

Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting

Length:5meter each roll,10meters/reel

Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting

Products name:IR 24 keys Color temperature controller

Product Description:

This controller is adopt the most mature infrared remote control technology, mainly used to controlled Color temperature led strips. User can choose different color temperature effect,can adjust the light’s brightness and turn on/off the light,etc.Besides , this controller is with lost power memory function,when powered the controller, it will be in the same color temperature as last time before power off. Most of the function are very clear on the hot key,and its easy to be wiring,very simple to used.

Main feature:

1. Small size,light.

2. There are 24keys one the remote control,function mode are clear on the hot key,simple        to be used.

3. Easy to wiring,and the remote control is versatile.

Technical Parameters:

Controller:

Working temperature:-20-60℃

Input voltage:DC 12-24V

Connection mode:Common anode

Output current:<6A

Static power consumption:<1W

Controller size:L61 Χ W35 Χ H22 mm

Packing size:L90ΧW60ΧH40mm

Net weight:24g

Gross weight:57g

Remote control:

Working temperature:-20-60℃

power supply mode:button battery

supply voltage:3V

External dimension:

(Controller size)

 Connection description:

Power input interface:

   Adopt the 5.5x2.1mm DC connector seat

The infrared receiving interface:

  Adopt the three core flat wire with the infrared receiver.

  The load output interface:

Direction for use:

1.Connect the load cord first, and then connect the power cord; Before power on please ensure no short circuit between the cables

2. Used the 24 key infrared remote control, the key function are as follows:

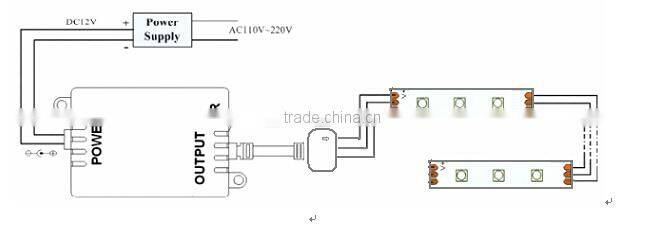

Typical Applications:

Cautions

1,This products Input voltage is DC12V,other input voltage are not allowed.

2,Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.

3,Overload are prohibited.

Typical Applications:
