TOP Quality 60 W Bridgelux LED Street Light AC90V-310V/DC12V/24V

Name: TOP Quality 60 W Bridgelux LED Street Light AC90V-310V/DC12V/24V
Brand: Unity
SKU: 131542291
Availability: InStock

US$ 500 - 800 MOQ: 10 Sets

Key Specifications

LED Light Source:

Bridgelux from USA with high brightness

Input Voltage(V):

DC12V

Lamp Power(W):

Guangzhou Unity Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source Bridgelux from USA with high brightness

Input Voltage(V) DC12V

Lamp Power(W) 60

Lamp Luminous Flux(lm) 7800-9000

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, WW:2700-3200K,NW:4000-4500K,CW:6000-6500K

Working Temperature(℃) -35, +50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE

Warranty(Year) 5

Place of Origin Guangdong, China

Brand Name Unity

Model Number UT-ISSL60W

TOP quality 60 W Bridgelux LED street light AC90V-310V/DC12V/24V

Specification

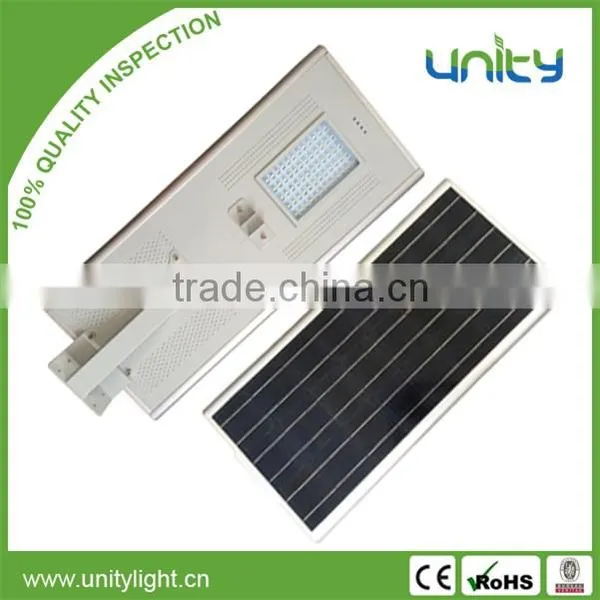

Solar panel	Max Power	18v 90w(high efficiency monocrystalline silicon)
	Life Time	25 years
Battery	Type	solar energy lithium battery 12.8V42AH

	Life Time	5 years

Led lamp(without sensor)	Max Power	12v 60w

	Led chip brand	Bridgelux from USA with high brightness

	Lumen(LM)	7800-9000lm

	Life Time	50000 hours

Lamps material of main	Aluminium Alloy
Charge time	6 hours(by sun)

Discharge time	more than 10 hours(full power)

	more than 24 hours (half power)

Certificate	CE/ROHS/IP65

Warranty period	5 years
Packing& Weight	Product/Packing Size	118454.4 cm / 1195221cm
	Product/Packing Weight	19.55kg/21.95kg
	Packing Box	neutral
	Carton Size	1195221cm
	Quantity/Carton	1 sets/carton
	GW.for Carton	21.95kg
Packs Containers	20GP	230 pcs
	40GP	450 pcs

Details

Installation Details

Product Description

High quality, high efficiency, high CRI & luminous flux, long life span>50,000hours.
Green Energy, Lower Power Consumption, Save 60%-80% Than Others.
High stability, reaching a low investment and high return.
Humanized structural design, installation and maintenance easier.
Our products had adopted RoHS,CE Certification.
Suitable for the needs of a variety of application.

Applications & Usage:

Used for highway, main road, pavement street, residential road, branch road, rural roads,

Square,Parking lots, Gardens, Industrial roads, and indoor high space lighting,factories. Etc

Aging Testing
