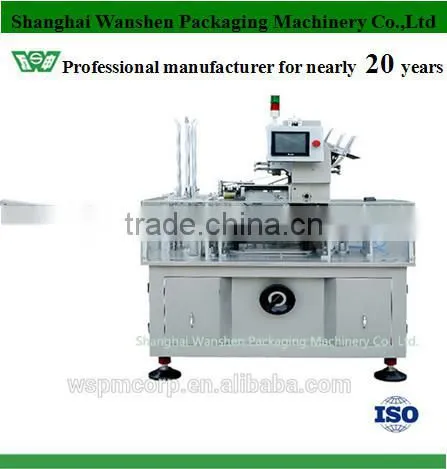

Shanghai Wanshen HDZ 100G Automatic Encasing machinery for Tubes
Suitable for the packaging of tubes, blisters, bottles, vials, pillow packs, etc.
The machine runs stable and provides easy changeover for different sizes of cartons.
It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot melt closures and automatically discharge cartons.
The machine is equipped with a series of sensors and automatic protective devices to assure the machine
runs safely and effectively. It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.
Main Characteristics
1.Speed-regulated with variable frequency and adopt PLC automatic control system.
2.Adopt man-machine interface operating system with automatic indication of packaging speed and counting.
3.Box packaging of different specifications may be conducted on the same machine.
4.Automatically folded description sheets can be prepared and 3-line lot numbers in steel seal can be printed at the same time.
5.Switchover between manual and automatic operation.
6.Automatic inspection system for alarm and machine switch-off in case of non-conforming products.
7.Can be connected with hot melt adhesive machine.(optional)
Main Parameters
Tube Automatic Cartoning Machine
| Speed | Specifications of Paper box(Length*Width*Height) | Specifications of manual(Width*Length) |
| 60-100boxes/min | Size: (50mm-120mm)*(15mm-50mm)*(15mm-50mm) | unfolded size:(110mm-160mm)*(90mm-250mm) |
| Quality: 250~400g/m2 | Quality:40~80g/m2 | |
| Power | Total Power | Equipment dimensions |
| 380V.50HZ | 1.1kw | 1250mm*1120mm*1550mm |
| Compressed air pressure | Compressed air consumption | Weight |
| 0.6Mpa | 30-90l/min | 850kg |
Remark: 1.For size of box beyond the specified, we can customize accordingly.
2.Different packaging material and different number of items to be boxed will affect the packing speed
