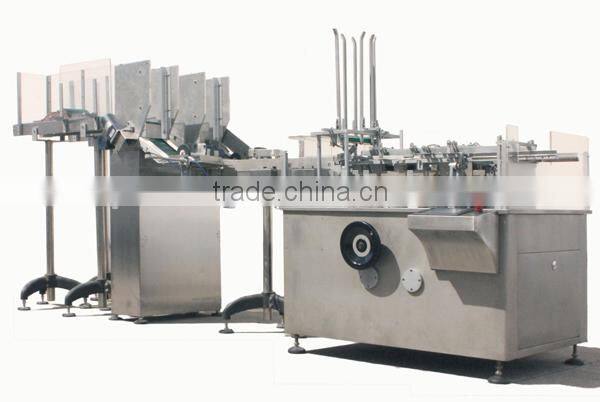

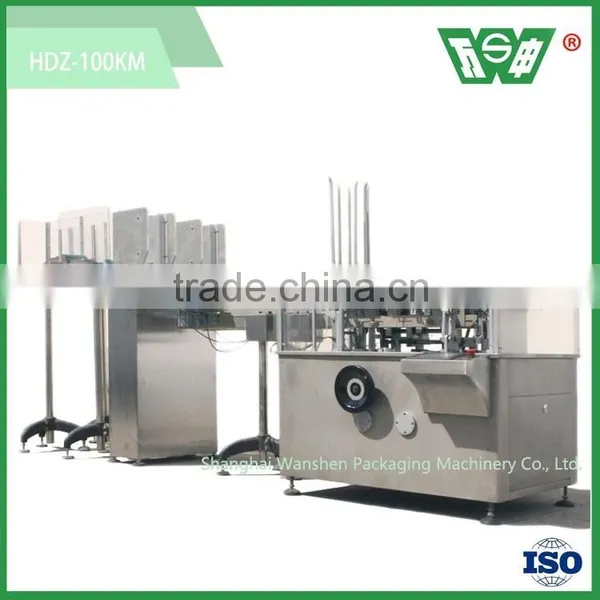

HDZ 100KM Automatic Pencil Cartoning Machine
The equipment is used for packaging of pencil, pen shape similar stationery, is the first domestic R & D and production of the pencil box packing machine manufacturers, with independent intellectual property rights.
Main parameters
| Speed | Specifications for box | Specifications for Manual | Power | |
|
40-100 boxes/min |
(110mm-190mm)×(70mm-90mm)×(12mm-35mm) | / | 380V·50HZ | |
| Total Power | Equipment Dimension | Compressed tolerance | Compressed air pressur | Weight |
| 1.2KW | 3750mm×1120mm×1650mm | 30-90L/min | 0.6Mpa | 1050kg |
1.The speed is regulated by variable frequency and adopts automatic control system.
2.This machine adopts man-machine interface operating system,automatically display box speed,quantity and other performance parameters ,and also display the fault causes and methods of operation and maintenance.
3.It can be implemented that adjust and use of more specifications at the specific confine on the same machine.
4.Manual and automatic conversion.
5.It can simultaneously complete the folding and cartoning of the instructions.
6.It can print three numbers on the box,in additional, it also has the functions of print serial numbers
7.Incorporates automatic inspection system and has the functions of automatic suspension and removal of non-conforming products.
8.It can be installed with hot melt adhesive machine.
1. HDZ-100 Series Automatic Cartoning Machine(Speed below 100boxes/min.)
HDZ 100P Bottle Cartoning Machine HDZ 100B Blister Cartoning Machine
HDZ 100G Soft Tube Cartoning Machine HDZ 100K Injection Cartoning Machine
HDZ 100BZ Pillow Bag Cartoning Machine HDZ 100D Thin-sheet products like condom, facial
tissue, patches Cartoning Machine
HDZ-100KM Pencil Cartoning Machine
2.HDZ-150 Series Automatic Cartoning Machine(Speed over 100 boxes/min.)
HDZ-150P Bottle Cartoning Machine HDZ-150B Blister Cartoning Machine
HDZ-150G Soft Tube Cartoning Machine HDZ-150K Injection Cartoning Machine
HDZ-150BZ Pillow bag Cartoning Machine
3.High Speed( Continous Motion) Cartoning Machine
High Speed(continous motion) Cartoning Machine
4. Automatic Cellophane Wrapping Machine
WS 400 Cellophane Wrapping Machine for multiple products
WS 350 Cellophane Wrapping Machine for bundle pcs
WS 250 Cellophane Wrapping Machine for Single pc
5.Semi-automatic Cellophane Wrapping Machine
Semi-automatic Cellophane Wrapping Machine
We have rich and very good experience in cooperating with more than 1500 customers like famous pharmaceuticals and cosmetics manufacturers at home and abroad. We keep offering our customers by high quality, reasonable price and excellent service.
