wpc wall panel for Aluminium formwork system

Specifications

1.can replace plyeood and wood
2.no need releasing agent
3.not stick concrete
4.easy to remove from concrete
5.anti-UV

WPC wall panel for Aluminium formwork system



Now a day’s Aluminium formworks used to construction for High Rise Buildings.Aluminium formwork can be used reused  more times  with careful handling and good maintenance. One of the biggest advantage of aluminium formworks has its unsur- passed construction speed. Compared to conventional construction procedures, use of aluminium formworks reduces floor completion cycle from 15 days to 4 to 5 days, primarily because of light weight nature enables fast erection and dismantling and simple system of pin & wedge makes the assembly easier. Pouring concrete together for walls, beams and floors and System ensures accuracy of dimensions without need for re-work and uncomplicated system  requiring use of minimum skilled labour.
But, over and above its strong advantages of speed, economy, re-usages and no extra cost, Aluminium Formworks give your construction structure a very high quality finish. High quality finish is possible due to uniformity of panels and precise joints, as it leaves no deflection, creating evenness, eventually adding style and stability.

Good aluminium formwork should match with good formwork board. So that it will have good quality buildings. According to this reason, our independent research and development wpc formwork board is coming out. Now, we had cooperated with the biggest two aluminium formwork companies in China. The effect is so nice. We believe that aluminium formwork and wpc formwork board will be in everywhere of the world.





Comparision between wpc board and plywood







Characteristics	wpc board	plywood
Specifications	1220x2440x15mm	1220x2440x15mm
Weight	30kg	30kg
Re-use time	Minimum 30 times	Maximum 10 times
Rate(USD)/piece	51.97	22
Average rate(USD)/time	51.97 ÷ 30 = 1.73	22 ÷ 10 = 2.2
Brush releasing agent	no need	need
Labor	no need	need to buy and brush releasing agent
Moisture resistance	waterproof 100%	water absorptive
UV resistance	high grade uv resistance	easily effected by UV
Life time	over 50 years	<3 years
Recycle	recyclable 100%	no
Environment protection	no harmful materials	consume woods

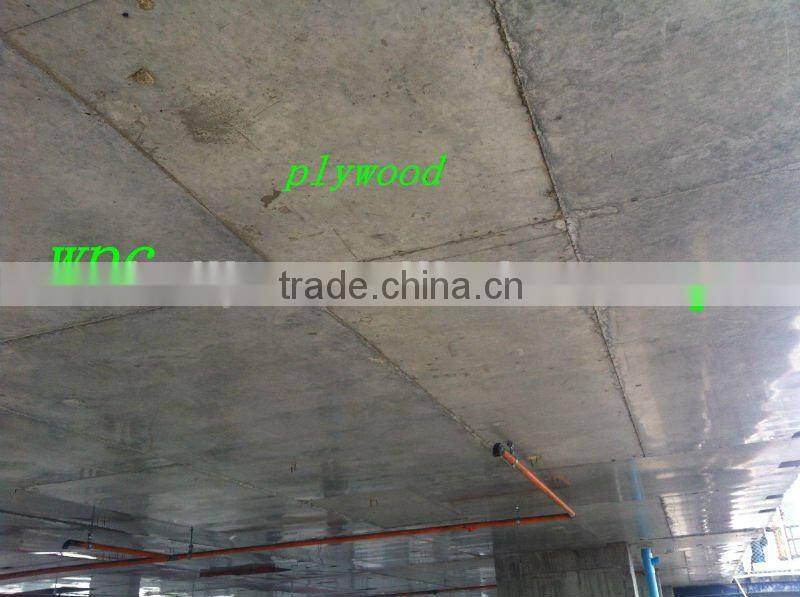

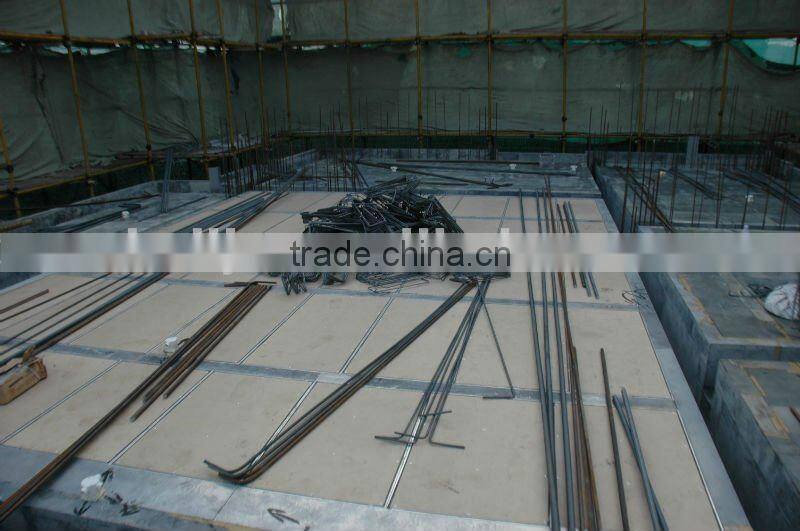

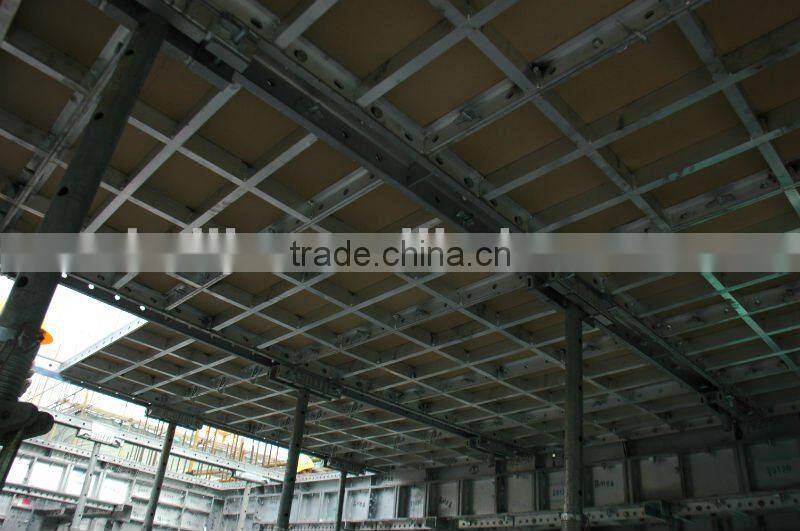

Construction site photos
