Specifications
cnc wood carving machine1. HSD ATC spindle
2. Yaskawa servo
3. Syntec control
High effiency 3kw spindle motor linear guideway cnc router machine price usb control cnc wood carving machine

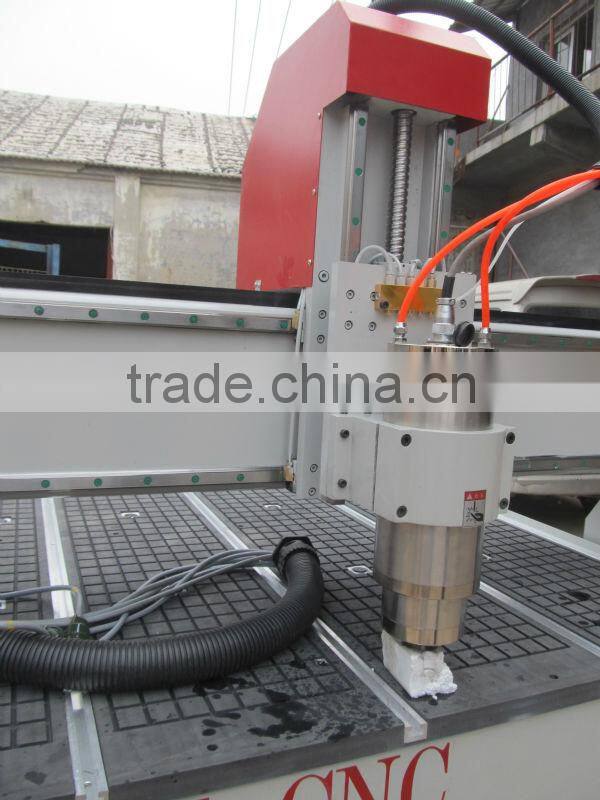

Big power spindle

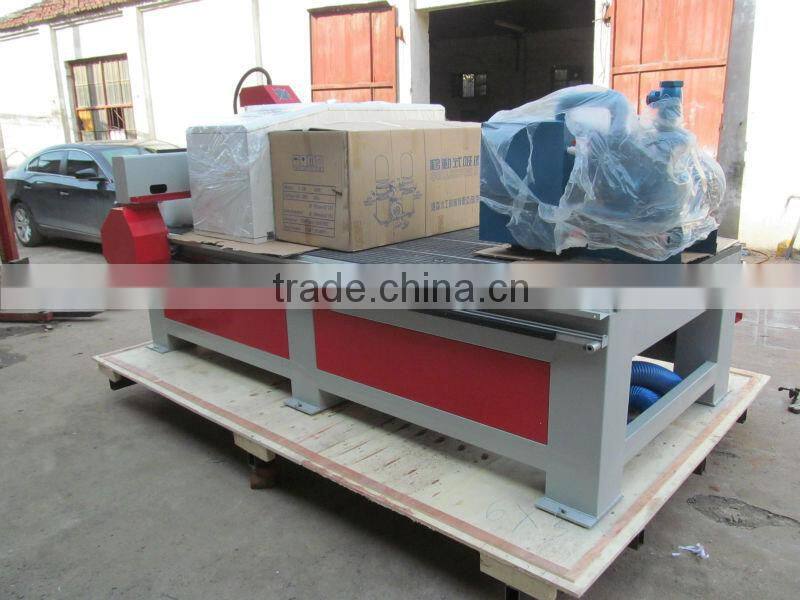

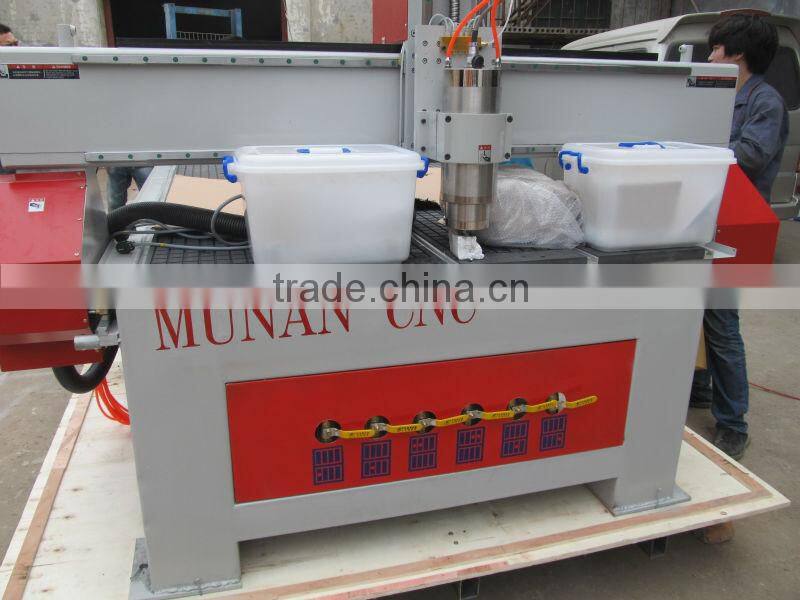

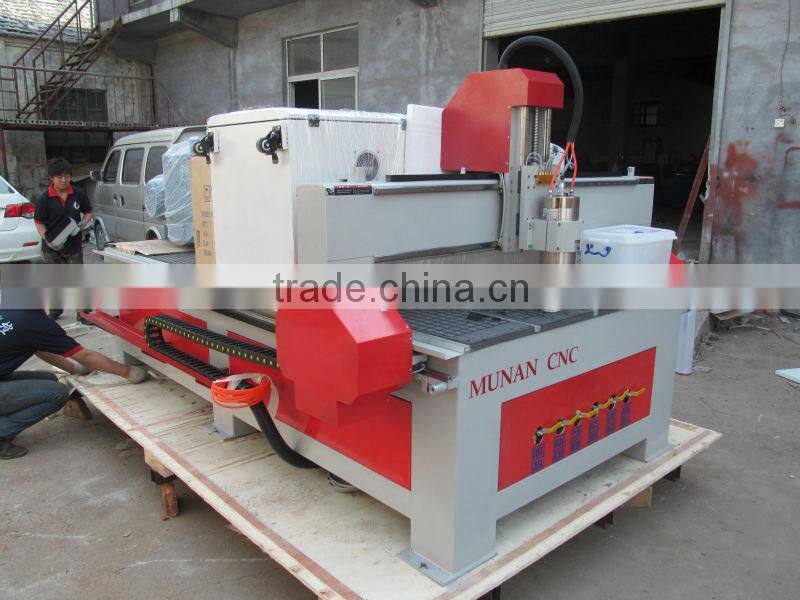

Whole side view of the machine

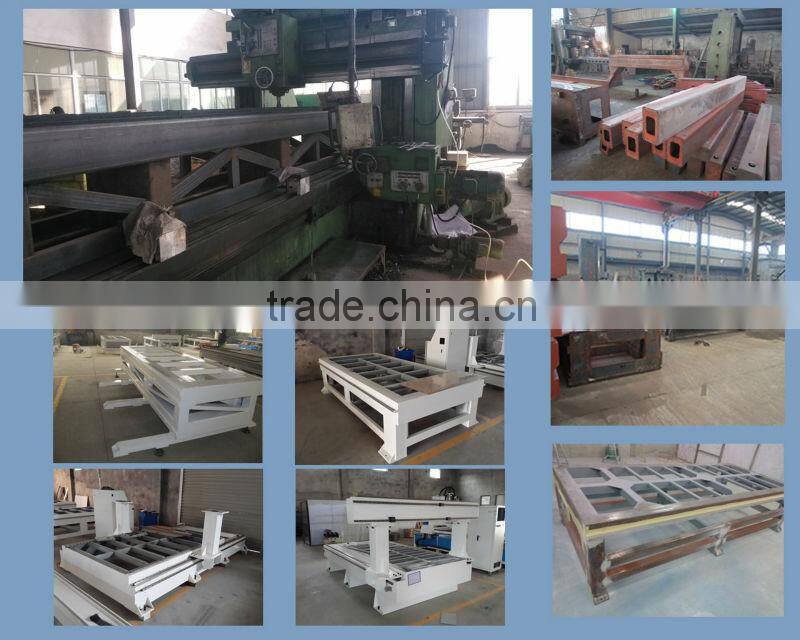

Frame machining and painting
Standard features:
* stronger frame welded steel structure , vacuum table 8 zones.

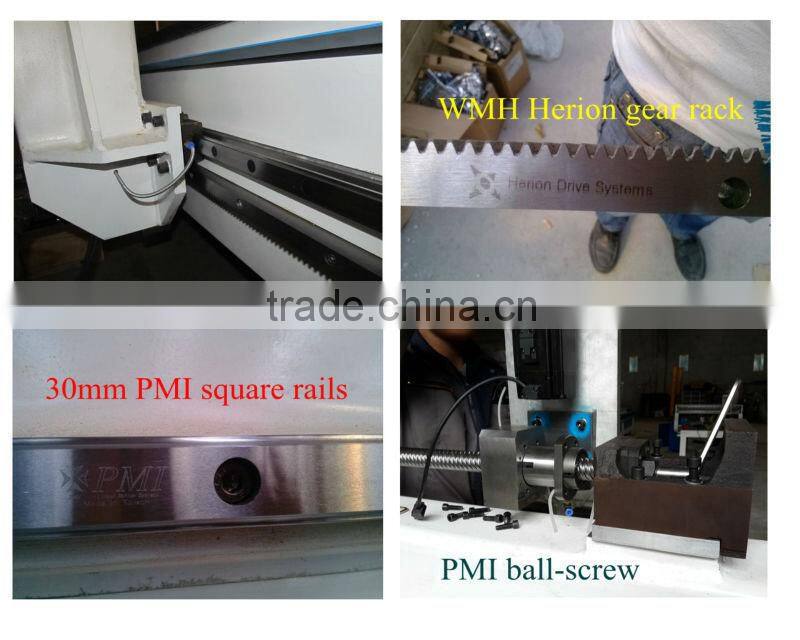

* Taiwan Square guide way, X&Y axis gear rack drive system .Imported German ball screw for Z axis.
* DSP control system
* 4.5kw water cooling spindle (0-24000rpm)
* 4.5kw Sunfar inverter
* 5.5kw water cooling vacuum pump
* High speed stepper motors, powerful and stable
* Wentai Software and Type3 Software

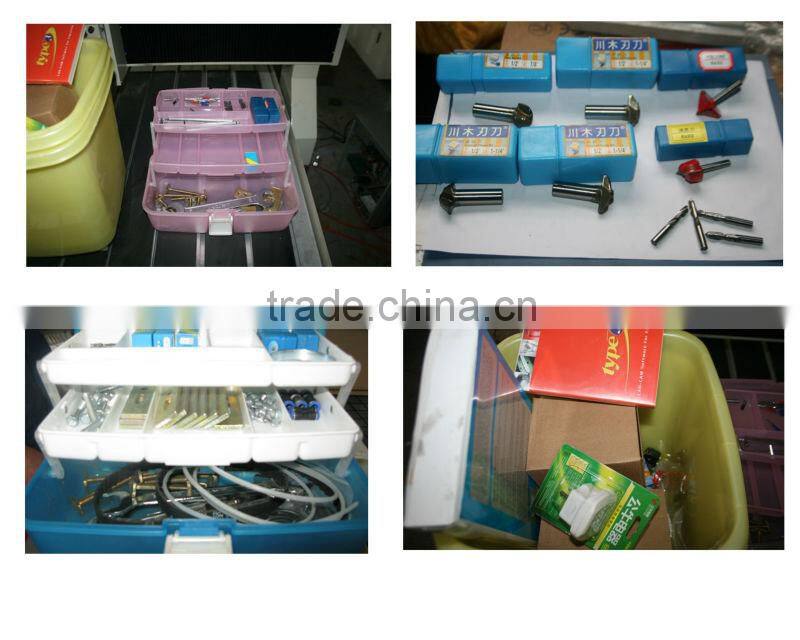

* oiling system, 10 cutters( φ6, φ12.7), 2 collets
* dust collector system
Application:
This machine can used for wood ,MDF,acrylic ,PVC,plastic 3D engraving or cutting.
Technical Parameter:
NO. Description |
Parameter |
|
1 |
Table size |
1300×2500mm |
2 |
X,Y working area |
1300×2500mm |
3 |
Z working area |
200mm |
4 |
Working accuracy |
0.05mm |
5 |
Repositioning accuracy |
0.05mm |
6 |
Frame Structure |
Welded steel tube structure |
7 |
Table Type |
Vacuum table |
8 |
Max. traveling speed |
17000mm/min |
9 |
Max. working speed |
12000mm/min |
10 |
Interface |
USB |
11 |
Command |
G code*.u00*.mmg*. plt |
12 |
Surroundings for software |
windows98/2000/xp |
13 |
Working voltage |
3 PH/ AC220-380V/50HZ |
14 |
Spindle power (domestic made) |
4.5kw water cooled |
15 |
Spindle rotating speed |
0-24000rpm/min |
16 |
Drive Motor |
450C stepper motor |
17 |
Gross weight |
1800kgs |
18 |

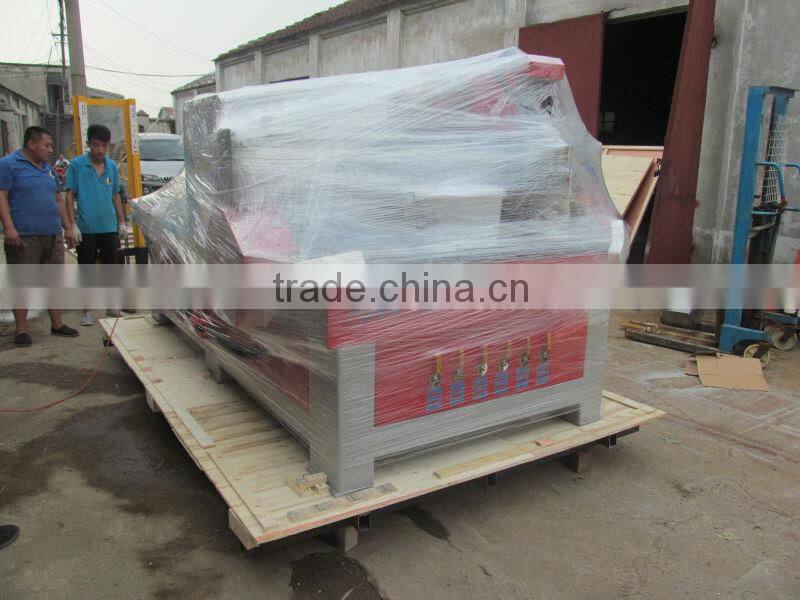

Packing size |
310*180*175cm |
