Specifications
High effiency 3kw spindle motor , 4 axis cnc router1. 3kw spindle
2. stepper motors
3. NC studio PC contr

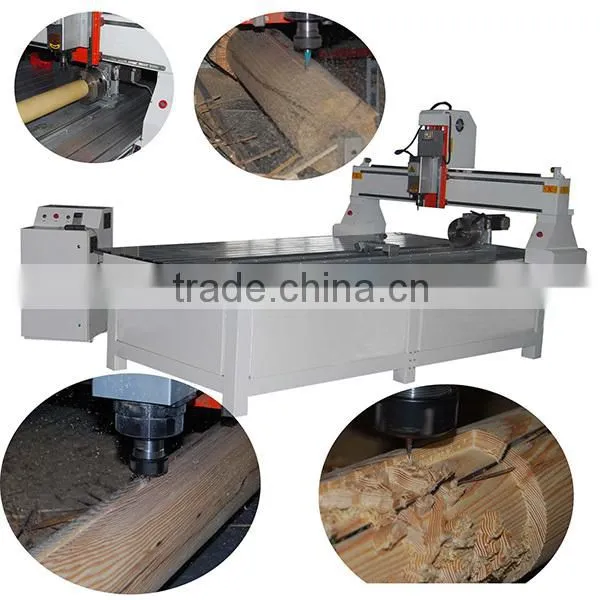

High effiency 3kw spindle motor , 4 axis cnc router
Big power spindle
Whole side view of the machine
Frame machining and painting
Standard features:
* stronger frame welded steel structure , vacuum table 8 zones.
* Taiwan Square guide way, X&Y axis gear rack drive system .Imported German ball screw for Z axis.
* DSP control system
* 4.5kw water cooling spindle (0-24000rpm)
* 4.5kw Sunfar inverter
* 5.5kw water cooling vacuum pump
* High speed stepper motors, powerful and stable
* Wentai Software and Type3 Software
* oiling system, 10 cutters( φ6, φ12.7), 2 collets
* dust collector system
Application:
This machine can used for wood ,MDF,acrylic ,PVC,plastic 3D engraving or cutting.
Technical Parameter:
NO. Description |
Parameter |
|
1 |
Table size |
1300×2500mm |
2 |
X,Y working area |
1300×2500mm |
3 |
Z working area |
200mm |
4 |
Working accuracy |
0.05mm |
5 |
Repositioning accuracy |
0.05mm |
6 |
Frame Structure |
Welded steel tube structure |
7 |
Table Type |
Vacuum table |
8 |
Max. traveling speed |
17000mm/min |
9 |
Max. working speed |
12000mm/min |
10 |
Interface |
USB |
11 |
Command |
G code*.u00*.mmg*. plt |
12 |
Surroundings for software |
windows98/2000/xp |
13 |
Working voltage |
3 PH/ AC220-380V/50HZ |
14 |
Spindle power (domestic made) |
4.5kw water cooled |
15 |
Spindle rotating speed |
0-24000rpm/min |
16 |
Drive Motor |
450C stepper motor |
17 |
Gross weight |
1800kgs |
18 |
Packing size |
310*180*175cm |
