Specifications

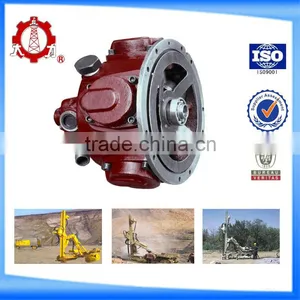

TMH8 Piston Air Motor 1.Small in size but high power 2.Variable speed control 3.Stable under extremely conditionsTMH8 Piston Air Motor is operated on the basis of the following principle. After entering into the Gas distribution systerm (valve core and valve bush),the compressed air is accordingly delivered to cylinders,then expanding to push the piston reciprocating,finally driving the shaft and crank journal recipocating to outputting the water.It is widely uesd in mining,oilfields, constructions,metallurgy, paper making,medicine,chemistry smelting and other industries,as ideal mating driving equipment for large-scale drilling machinery.
Features:
1. High starting torque enables start with load,fast and stop.
2.Simple in structure,small in volum,light in weight,easy in operation and low in maintenance.
3.Stable under inflammable,explosive,outdoor,wet, damp and other extremly conditions.
4.Anti-overload function,automatically reduce to a lower spped until overload relieved and restart,
5.Change air in-let direction in operating valve to get clockwise and anti-clockwise rotation in short time,without any impact to motor and even need not to remove load.
6.Stepless speed change,change rotate speed and power via change air volume.
7.Widely applied in minings, oilfields, constructions,metallurgy,paper making,medicine,chemical industy,smelting,etc. is the ideal mating drive part of Crawler Drills.
Technical Parameters:
Model |
TMH3.2 Piston Air Motor
|
TMH8 Piston Air Motor
|
||||||
Working Pressure (Mpa) |
0.4 |
0.5 |
0.63 |
0.7 |
0.4 |
0.5 |
0.63 |
0.7 |
Idel Speed (R/MIN) |
2170 |
2370 |
2500 |
2600 |
1500 |
1660 |
1750 |
1800 |
Rated Speed (R/MIN) |
1040 |
1140 |
1200 |
1250 |
690 |
760 |
800 |
830 |
Rated Power (KW) |
2.2 |
3 |
4 |
4.8 |
5.8 |
7.7 |
10 |
12.1 |
Air Consumption(L/S) |
53.3 |
67 |
82 |
94.3 |
130 |
164 |
200 |
230 |
