Auto-tool change CNC Router 1530 ATC

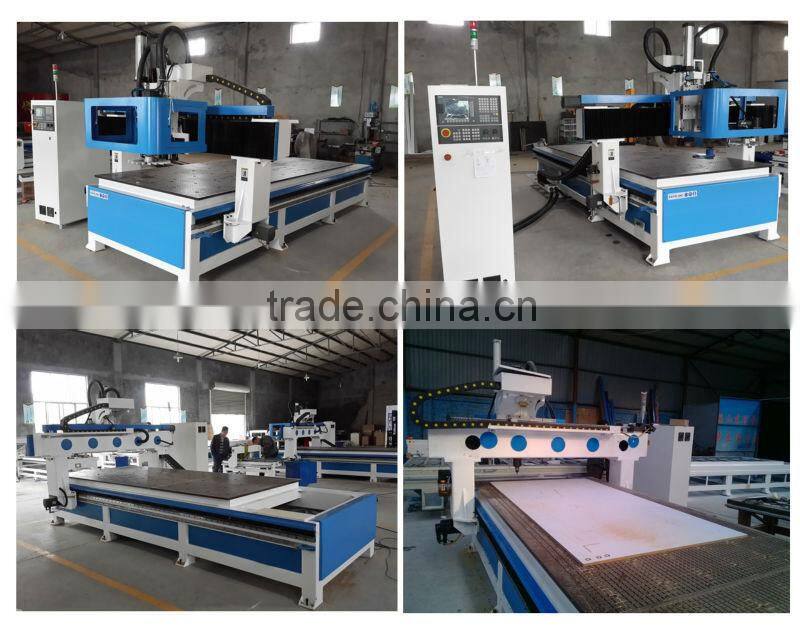

Whole side view of the machine

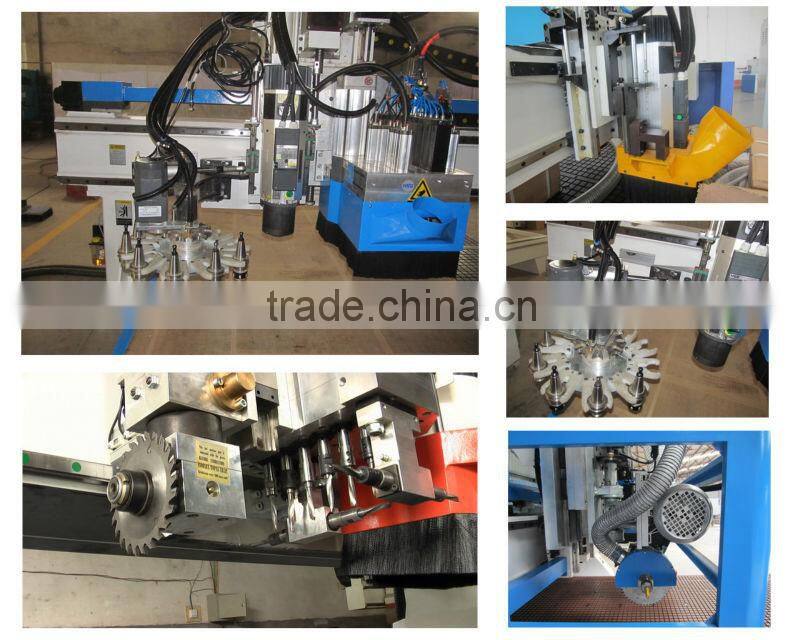

Italy 9kw HSD ATC spindle, Rotary tools magazine(10 pcs), HSD drilling head, cutting saw as options

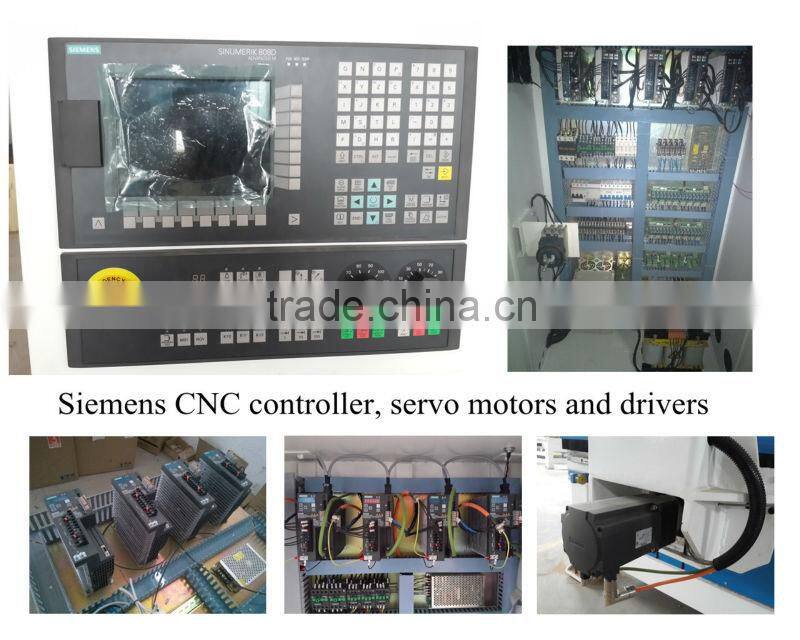

Original Siemens CNC system and Siemens cables.
Frame machining and painting
applications of automatic tool change spindle motor :
This machine is suitable to work wood working machine cutting on 3d wood cutting machine aluminium, wood, MDF, acrylic, artificial materials, etc,
such as classical furniture, relief, d wall bed mechanism oors, advertising products, wooden products, computer
desk, etc. wall bed mechanis wood engraving machine m wood engraving machine
characteristics of automatic tool change spindle motor :
1The machine adopt steel structure ,seamless welding,according to the standard industry to produce.
2.X Y adopt the straight line square guide rail,high precision ,good dust.
3.X and Y Z axis adopt rack and pinion transmission.faster working,higher efficiency and low cost.
4.High performance subdivision stepper motor operates smoothly at maximum speed.
5.Air cooled spindle 3.0kw,low noise,long tine mass processing.
6.Perfect oil lubricating system make the maintenance more convenient.
7.It is able to go on engraving when the electricity is cut or the tool is broken.
8.Compatible CAD/CAM designing software eg :Type3/Artcam/castmate/wentai/UG etc.
9.OEM and customize different kinds of size
10.Rotary device,DSP system w/portable control pad(128MB),Vacuum holding, Dust collector,Oil lubrication system
Items |
W3-1325 |
W3-1530 |
W3-2040 |
Travelling size |
1260*2500*200mm |
1570*3100*200mm |
2100*4020*200mm |
Working size |
1240*2480*180mm |
1550*3080*180mm |
2050*4000*180mm |
Table size |
1230*2500mm |
1560*3100 mm |
2050*4020mm |
Optional working length |
3000/5000/6000mm |
||
Transmission |
X/Y rack and pinion drive, Z ball screw drive |
||
Table structure |
T-slot vacuum |
||
Spindle power |
4.5/9.0KW |
||
Spindle speed |
24000r/min |
||
Travelling speed |
45m/min |
||
Working speed |
20m/min |
||
Tool magazine |
Carousel |
||
Tool slots |
8 |
||
Driving system |
Panasonic/Delta |
||
Voltage |
AC380/3PH/50HZ |
||
Controller |
Syntec/OSAI/NC-Studio |
||
