12v 300ah agm battery AGM Sealed Lead Acid Battery 12v 38ah 12v rechargeable battery

Specifications

1. long service life;
2. Low self-discharge;
3. Maintenance easy;
4. Safe;
5. Clean environment.

 Guangzhou Manlian Electric & Technology Co., Ltd.

12V 7AH rechargeable battery sealed lead acid battery deepcycle hot type 2013 new



Specifications



1.long service life;

2.Low self-discharge;

3.Maintenance easy;

4.Safe;

5.Clean environment.



Parameter



Capacity 77°F(25°C)	20 hours rate(0.225A 5.25V)	4.5Ah
	10 hours rate(0.43A 5.25V)	4.3Ah
	5 hours rate(0.78A 5.25V)	3.9Ah
	1 hours rate(2.8A 4.8V)	2.8Ah
Internal Resistance	Full charged battery 77°F(25°C):30mΩ
Capacity affected by Temperautre (20 hour rate)	104°F(40°C)	102%
	77°F(25°C)	100%
	32°F(10°C)	85%
	5°F(-15°C)	65%
Self-Discharge 68°F(20°C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77°F(25°C);67.5A(5S)
Charge (Constant Voltage)	Float:6.8 to 6.9V/77°F(25°C)
	Cycle:7.25 to 7.45V/77°F/(25°C)
	Max Current:1.13A



Product Display









HYPLUSH 2V 6V 12V lead acid battery

Battery Type	Nominal Voltage(V)	20h rate capacity(ah)	dimension				Weight(kg)
			Length	Width	Height	Totalheight
HYPLUS 220-2	2	200	171	106	327	352	15.5
HYPLUS 330-2	2	300	171	151	327	352	20.5
HYPLUS 550-2	2	500	240	170	330	352	35.5
HYPLUS 880-2	2	800	412	175	330	352	60
HYPLUS 1100-2	2	1000	480	175	330	352	79
HYPLUS 1550-2	2	1500	400	350	330	352	115
HYPLUS 2200-2	2	2000	490	350	330	352	149
HYPLUS 3300-2	2	3000	712	350	330	352	225.5
HYPLUS 6-1.2	6	1.2	97	24	52	55	0.32
HYPLUS 6-3.2	6	3.2	134	34.5	61	66	0.66
HYPLUS 6-4.5	6	4.5	70	46.5	101	107	0.81
HYPLUS 6-7.0	6	7	151	34	94	101	1.3
HYPLUS 6-8.0	6	8	151	50	94	101	1.5
HYPLUS 6-10	6	10	151	50	94	101	1.7
HYPLUS 6-12	6	12	151	50	94	101	1.9
HYPLUS 12-1.2	12	1.2	97	48	52	57	0.6
HYPLUS 12-1.9	12	1.9	178	34	61	66	0.9
HYPLUS 12-2.3	12	2.3	178	34	61	66	1
HYPLUS 12-2.8	12	2.8	134	67	61	66	1.2
HYPLUS 12-4.5	12	4.5	90	70	101	106	1.9
HYPLUS 12-6.5	12	6.5	151	65	94	101	2.3
HYPLUS 12-7	12	7	151	65	94	101	2.45
HYPLUS 12-12	12	12	151	98	98	102	4.3
HYPLUS 12-17	12	17	181	76	167	167	5.6
HYPLUS 12-24	12	24	166	125	170	170	8.2

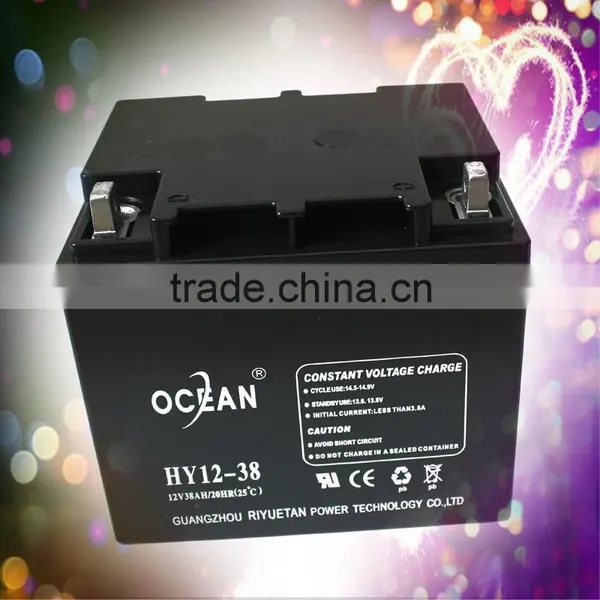

HYPLUS 12-38	12	38	197	165	170	170	12.5
HYPLUS 12-65	12	65	350	166	170	170	20
HYPLUS 12-100	12	100	406	173	210	236	29.5
HYPLUS 12-120	12	120	406	173	210	236	33
HYPLUS 12-150	12	150	495	174	245	265	43
HYPLUS 12-200	12	200	520	238	240	265	58

Sunplush 12V long lifes /deep cycle battery

Battery Type	Nominal Voltage(V)	20h rate capacity(ah)	dimension				Weight(kg)
			Length	Width	Height	Totalheight
HYPLUS 12-7	12	7	151	65	94	101	2.45
HYPLUS 12-12	12	12	151	98	98	102	4.3
HYPLUS 12-17	12	17	181	76	167	167	5.6
HYPLUS 12-24	12	24	166	125	170	170	8.2
HYPLUS 12-38	12	38	197	165	170	170	12.5
HYPLUS 12-65	12	65	350	166	170	170	20
HYPLUS 12-100	12	100	406	173	210	236	29.5
HYPLUS 12-120	12	120	406	173	210	236	33
HYPLUS 12-150	12	150	495	174	245	265	43
HYPLUS 12-200	12	200	520	238	240	265	58



Application area:UPS power supply, communication system,

auto control systerm, electrical power system and etc.

Gel battery

Battery Type	Nominal Voltage(V)	20h rate capacity(ah)	dimension				Weight(kg)
			Length	Width	Height	Totalheight
CT12-5.5	12	5.5	152	66	98.4	98.4	2.5
CT12-6.5	12	6.5	152	66	98.4	98.4	2.6
CT12-8.5	12	8.5	152	98	98.4	98.4	3.6
CT12-12	12	12	181	76	156	156	5.5
CT12-20	12	20	167	176	126	126	8.5
CT12-32	12	32	167	175	126	126	13.6
CT12-40	12	40	210	175	175	175	14.5
CT12-50	12	50	278	175	190	190	19.5
CT12-65	12	65	353	175	190	190	19.5
CT12-90	12	90	286	269	230	230	34.5
CT12-100	12	100	513	189	223	223	39
CT12-120	12	120	513	223	223	223	48
CT12-180	12	180	518	274	268	268	69.5



Application area:UPS power supply, communication system,data center,

medical equipment, electrical power system,electrocar and etc.

Solar SCL serial battery

Battery Type	Nominal Voltage(V)	20h rate capacity(ah)	dimension				Weight(kg)
			Length	Width	Height	Totalheight
SCL 12-17	12	17	181	76	167	167	6
SCL 12-24	12	24	175	166	125	125	9
SCL 12-38	12	38	198	166	170	170	14
SCL 12-65	12	65	350	166	175	175	22
SCL 12-90	12	90	406	173	208	236	30
SCL 12-100	12	100	406	173	208	236	32
SCL 12-120	12	120	406	173	208	236	36
SCL 12-150	12	150	495	174	245	265	40
SCL 12-200	12	200	520	238	240	265	60

Advantage



Factory details





Exporting countries distribution:





Russia	Columbia	India	Dubai	Canada	else
30.47%	21.86%	18.45%	8.31%	7.14%	13.78%



Factory details





Use and maintenance



Please use constant-voltage charge.

In floating charge, the voltage is 2.23 to 2.27 per unit cell.In cycle use,

the voltage is 2.35 to 2.45 per unit cell,the max.current is no more than 25%C

Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use

Please do not use it near the heat source and open flame

Please keep it at low temperature.Please change it while there is liquid leaking or damage
