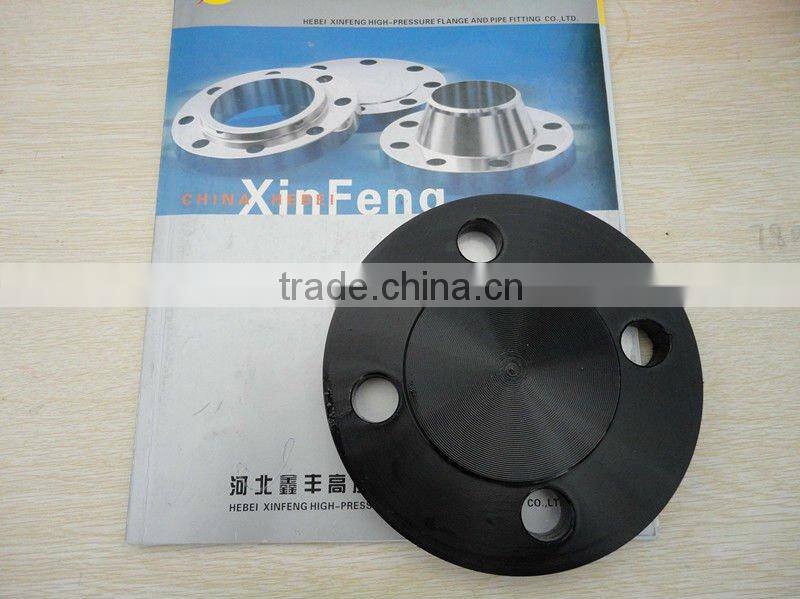

CS CT20 Flange- GOST Flange- HBXFF086

Specifications

FORGED FLNAGE
1/2"--80" DN10-DN2000
ANSI B16.5, ASME, DIN, BS4504, BS10 TABLE D/E, EN, GOST, JIS, UNI, SABS, NON-STANDARD

FORGED FLANGE



1) ANSI B16.5, ASME B16.47 FLANGE

Size range: 1/2" to 80" DN15 to DN2000

Design: welding neck, slip on, blind, socket welding, threaded, lap-joint

Pressure: 150#, 300#, 600#,900#,1500#, 2500#

Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS

Material: carbon steel A105, stainless steel 304/304L, 316/316L

Coating: black paint, yellow transparent paint, cold and hot dip galvanize

Package: seaworthy plywooden case, wooden pallet



2) EN1092-1 FLANGE

Size range: DN15 to DN2000

Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking

type12 slip on flange, type 13 threaded flange

Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100

Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L

Coating: black paint, yellow transparent paint, cold and hot dip galvanize

Package: sea worthy plywooden case, wooden pallet



3) DIN FLANGE

Size range: DN15 to DN2000

Design: slip on flange DIN2573,2576,2502,2503, 2543,2545

welding neck falnge DIN2631, 2632,2633,2634,2635

blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40

threaded falnge DIN2565,2566,2567,2567

loose flange DIN 2641,2642,2656,2673

Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404



4) GOST FLANGE

Size range: DN15 to DN 2000

Design : plate falnge 12820-80, welding neck flange 12821-80

Pressure: PN6, PN10, PN16, PN25, PN40

Material: carbon steel CT-20, stainless steel 304/304L, 316/316L

Coating: rust-proof oil, cold and hot galvanize

Package: sea worthy plywooden case, wooden pallet



5) JIS B2220 FALNGE

Size ragne : 15A to 2000A

Design: SOP, BIND, SOH,

Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K

Material: carbon steel SS400, stainless steel SUS304, SUS316

Coating : rust-proof oil, cold and hot galvanize

Packing: sea worthy plywooden case, wooden pallet

Please feel free to contact me through email, or you can just call me: 86-15028672427
