Epoxy Resin Glue Dispenser Ks-800

Specifications

The full set of products is available, provided with straight-type steel pipe nozzle and sharp-type plastic needle nozzle.

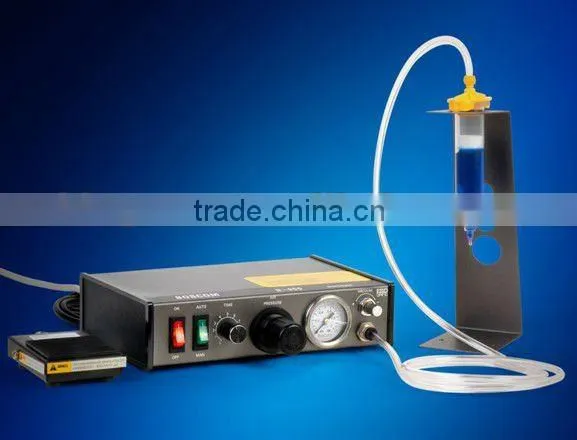

KS-800 Glue Dispenser
1.Uses air pressure within set time to push out liquid.
2.Using timer to control each dripping

Performance

1. If the air pressure and time are well adjusted and the nozzles are properly chosen, auto Set Time For 0.01 ~ 30 Sec.



2. It can easily change each dripping volume. It has extensive uses, and applicable liquids include non-drying adhesive, red glue, yellow glue, epoxy resin, silica gel, lubricants, screw-tightening glue, anti-soldering solvent or tin paste and so on.



3. The full set of products is available, provided with straight-type steel pipe nozzle and sharp-type plastic needle nozzle to make full use of the machine functions.







Specification



Model	KS-800
Auto Set Time	For 0.01 ~ 30 Sec.
Timing	Artificial sustained pedal (line painting) or Single-touch plastic tap
Minimum Note Volume Drops	0.01 ml.
Repeat Accuracy	0.5%
Input Barometric Pressure	0.25 ~ 7 bar (35 ~ 100 psi)
Input Barometric Pressure	0.1 ~ 5.5 bar (1 ~ 78  psi)
Input Voltage	220V or  110V (can select at back side)
Dimension  / Weight	235 mm x 225 mm x 633 mm / 2.2 kg.
