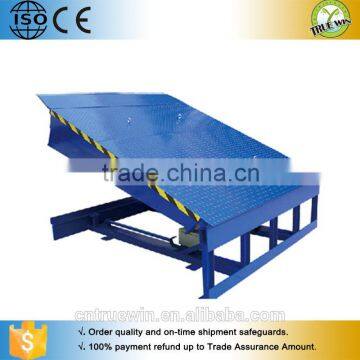

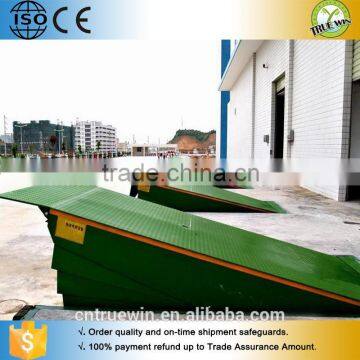

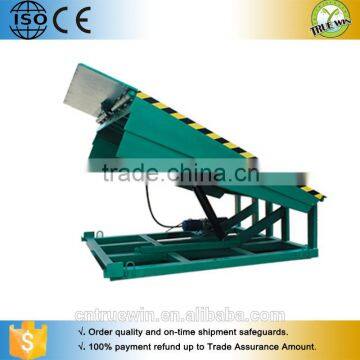

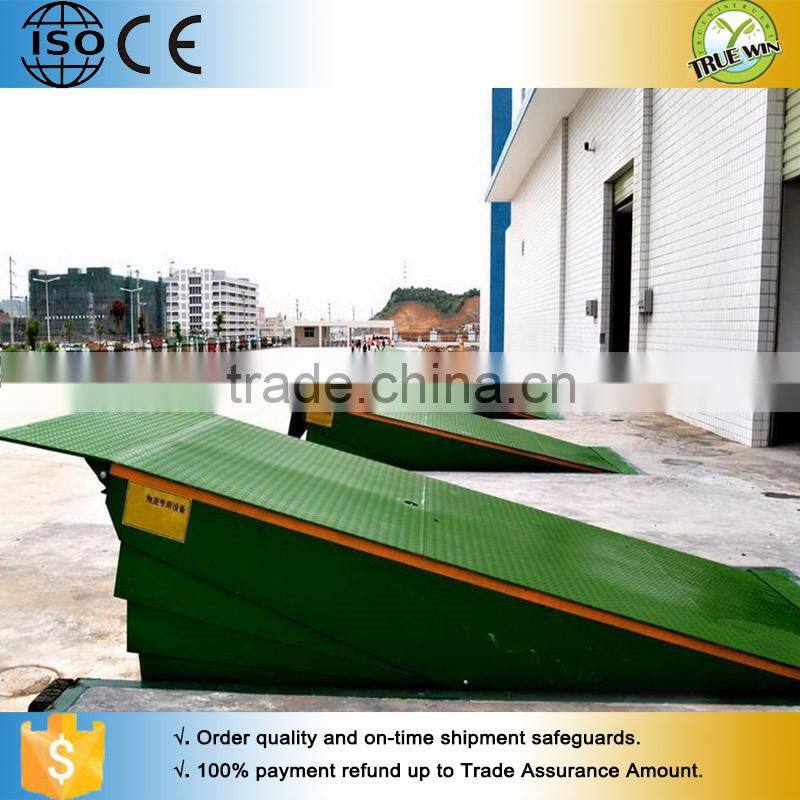

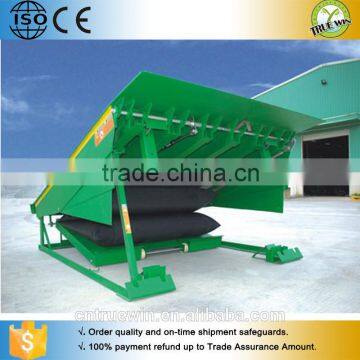

Full automatic 3t-12t hydraulic cylinder dock leveler
Full automatic 3t-12t hydraulic cylinder dock leveler lifting and placing the lip on the truck car for adjusting the height distance between the constructures’ floor and cars.
1. Electric control, hydraulic driving, which make it easy and reliable operation.
2. The ramps connected with the platform with a whole bearing, reliable and high intensity.
3. The O-rings in pistons are imported from Japan so to insure the vacuum of hydraulic system.
4. Imported hydraulic pump valve to insure a stable operation and long life.
5. The platform is made of high quality anti-skidding steel board which makes it a perfect performance on anti-skidding
6. There are protection board to prevent man’s foot into the platform from hurting.
7. There is safety support to assure the safety who takes the maintenance.
8. Single push button control makes operation easy and convenient.
9. The lip clinging with the car all the time which makes the convey cart moves very easily.
Full automatic 3t-12t hydraulic cylinder dock leveler are wildly used in large interprises , warehouse, stations, docks,warehousing and logistics,etc.
Full automatic 3t-12t hydraulic cylinder dock leveler is the special auxiliary equipment used for loading and unloading of goods.Its height can be adjusted with the different heights of lorries.
Some transport vehicles like forks can directly move into the wagon box with goods in using it, and only need one person operating.
The equipment can help enterprise reduce so much labor force,improve work efficiency and speed up the rate of goods flow, so as to achieve greater economic results.
It is an indispensable device for enterprises’running with high efficency.
Skateboard ramp/warehouse truck tail ramp lift is the special auxiliary equipment used for loading and unloading of goods.
Its height can be adjusted with the different heights of lorries.Some transport vehicles like forks can directly move into the wag
| model |
loading capacity (kg) |
travel heith(mm) |
framework height (mm) |
loading height (mm) |
platform height (mm) |
platform size(m) |
power |
weight (kg) |
|||
| up | down | total | max | min | |||||||
|
SJDG 6-0.55 |
6 | +300 | -250 | 500 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 0.75 | 700 |
| +10° | -6.5° | ||||||||||
|
STDG 8-0.55 |
8 | +300 | -250 | 500 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 0.75 | 850 |
| +10° | -6.5° | ||||||||||
|
STDG 10-0.55 |
10 | +300 | -250 | 500 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 0.75 | 1000 |
| +10° | -6.5° | ||||||||||
|
STDG 12-0.55 |
12 | +300 | -250 | 500 | 500 | 1200 | 1500 | 950 | 1.75*1.65 | 0.75 | 1150 |
| +10° | -6.5° | ||||||||||
|
STDG 6-0.60 |
6 | +300 | -300 | 500 | 500 | 1200 | 1500 | 900 | 2.5*2.0 | 0.75 | 900 |
| +7° | -7° | ||||||||||
Our service :
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. Reply your inquiry in 24 working hours
4. Customized design is available,OEM are welcomed
5. Delivery the goods to our customer all over the world with speed and precision
6. Offer customer the lowest price with high quality lifting machine
