915mhz RFID EPCG2 on metal Tag UT-2208 22*8*2.5 mm SID-Global

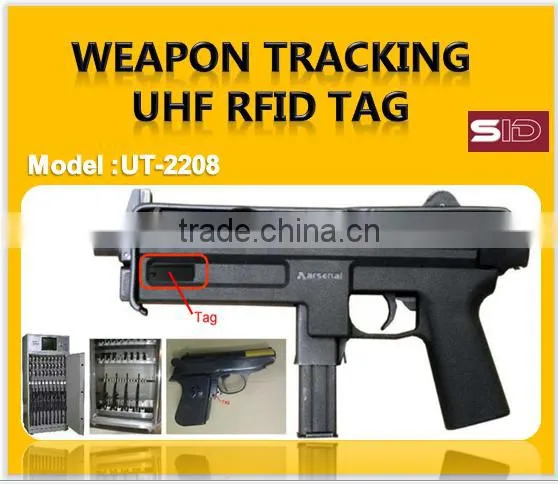

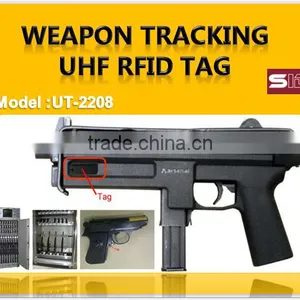

For Weapons tracking Asset tracking tools inventory Gas tanks tracking
Features
- Ø Support ISO18000-6C EPC Gen2
- Ø Read distance up to 1.5 meters
- Ø Small form factor and light weight ideal for small item tagging
- Ø Withstand very high temperature
- Ø Anti metal surface in anything harsh environment
Model |
UT-2208 |
|
Physical Characteristics |
Dimensions |
22 (L) x 8 (W) x 2.5 (H) mm |
Material |
Copper+Glod |
|
|
Environment |
Operating Temp |
-20°C to 70°C |
Storage Temp |
-40°C to 220°C |
|
Humidity |
10% to 100% |
|
Casing |
IP68 |
|
Antenna |
Polarization |
Linear |
Peak Gain |
4 dbi |
|
Beam Width |
Horizontal 3dB Beam width 6°±2°. Vertical 3dB Beam width 60°±5. |
|
VSWR Ratio |
<1.3 |
|
Memory Size |
EPC 96bits, TID 64 bits; User Memory 512 bits |
|
Frequency Ranges |
860 to 960 MHz |
|
Read / write cycles |
100,000 times |
|
Chip |
Impin M4 |
|
Tag Air Interfaces |
EPC Class 1 Gen 2 |
|
Read Range |
1.5 m @ 30dBm RF power |
|
- Ø Small metal based item tracking
- Ø PCB products
- Ø Hardware tooling
- Ø Metal racking
- Ø And more…
SID Global (Super Intelligent Device)
Established in late 2009
1300 square meters production plant
2 SMT production lines
Sold to customers from 130 countries around the globe
Main on Warehouse ,Library management project and Access control
There are office in Malaysia , Thailand and Shenzhen Which can support Local service
