Help Center8.0-11.8m Full Electric Self Propelled Skyjack Scissor Lift Aerial Working Platform
Related Products
-
Hydraulic Operation Self Propelled Skyjack Scissor Lift TableUS$ 3,000 - 6,000MOQ: 1 Set -
14m China True Win Electric Self Propelled Skyjack Scissor LiftUS$ 3,000 - 6,000MOQ: 1 Set
-
2015 Widely Used Slab Scissor Lift Hoists,Self-propelled Scissor LiftUS$ 3,000 - 6,000MOQ: 1 Set
-
8m to 14m Self Propelled Electric Scissor Lift Good Quality CE CertificationUS$ 3,000 - 6,000MOQ: 1 Set
-
CE Approved Motorized Hydraulic Lift System/mobile Scissor LiftUS$ 3,000 - 6,000MOQ: 1 Set
- Make: True win
- Model: SJSZ
- Year: 2015
- Hours: 275 on working meter
- Serial Number: GS3007B-89243
- Power Source: Electric
- Platform Height: 19 Ft.
- Machine Weight: approx. 2,714 lbs
- Transport Dimensions: 72" L x 30" W x 78” H
Features:
- Ergonomic Joystick Controller operates from the platform or the ground.
- Low noise level allows operation in quiet work environments.
- Swing-out battery box and power module allow easy access to components.
- On-board troubleshooting diagnostics notify the operators of possible fault conditions.
- Proportional controls for lift and drive functions
- Tilt level sensor with an audible alarm
- Hour meter
- Two Speed Travel
- On-board charger, just plug in to 110V to charge
- 115ac/15a outlet for use of power tools on platform
Specifications:
- Max Working Height: 25 ft
- Max Platform Height: 19 ft
- Wheelbase: 4 ft 4 in
- Ground Clearance: 2.4 in
- Lift Capacity: 500 lbs
- Lift Capacity Extension Deck: 250 lbs
- Drive Speed Stowed: 2.5 mph
- Drive Speed Raised: .5 mph
- Gradeability Stowed: 30%
Technicial Data:
Inspection Report:
Overview |
|
Overall Appearance |
Good / Average – see photos |
Overall Operating Condition |
Very Good for age and hours – see Video |
Power |
|
Batteries |
(4) 6V Batteries |
Charger |
Functional |
Comments |
Batteries powered unit through all functions normally – see video |
Hydraulic System |
|
Comments |
Hydraulics are fully functional and performed as expected – see video |
Chassis |
|
Body / Paint / Decals |
Average - normal wear. Minor cosmetic bends in top rail - see photos |
Work Platform / Extension |
Functional |
Tire / Wheel Condition |
Average to fair - see photos |
Comments |
Chassis is in overall good condition - see photos |
Operator Station |
|
Controls – Base |
Functional |
Controls – Platform |
Functional |
Hour Meter |
Functional |
Comments |
Operator stations were in overall good operating condition. All controls were fully functional – see video |
Quiet and convenient devices:
The scissor lift takes storage battery as the power source, and makes low noise and no emission when
working, so it can be used indoor occasions, such as workshops, warehouse, hotels, etc
Production sharing:
The base structure of each model has standard size, same as the scissor structure and other parts, so these parts are made separately, on one hand, it improves our production capacity a lot, but the most important is we can assure the high quality of each part.

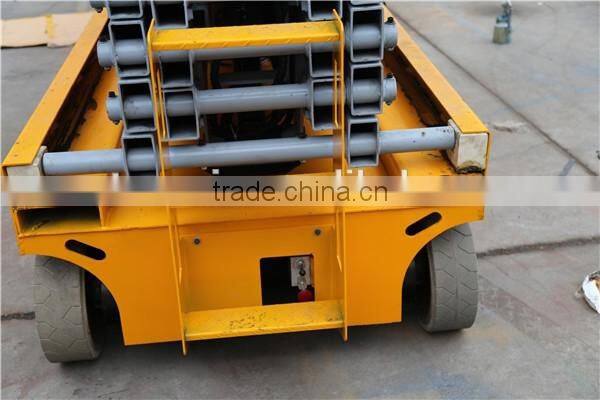

Scissor structure
The scissor structure are made by advanced CNC machine, which make every lift parts extremely precise and can cut max 20 mm thickness steel structure and error will be less than three-thousandths of a millimetre.
Flexible
The steering wheel can make a 90°turn in situ, can runin both high and low speeds, and can be used in small place.
Larger working space
The platform can extend on one side, which can enlarge the working space.

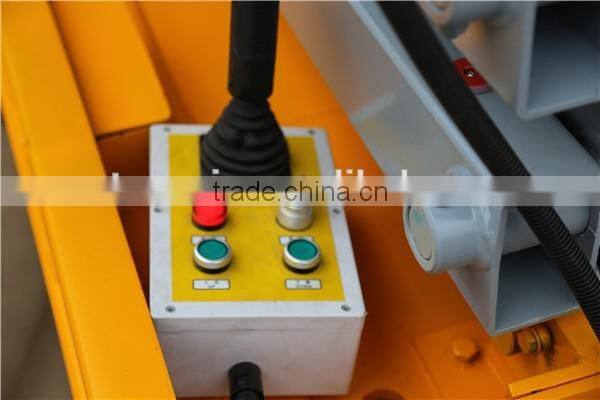

Easy understanding control box-on the platform.
The user can understand how it works and easy to operate.
Each lift will be fully tested before factory, we will assure every part works and make the video for the customer.It offer up to 25% grade ability when driving on slopes with safety protection.
Team&Custermer:
FAQ:
Delivery Time? (From 1 week to 1 month after we receive the order)
Payments? (T/T and L/C, other kinds, pls contact with us)
MOQ? (1 set)
Trade term? (FOB/CIF to your nearest seaport)
Application field? (Construction, shipyard, industrial, airport, municipal garden or others)
