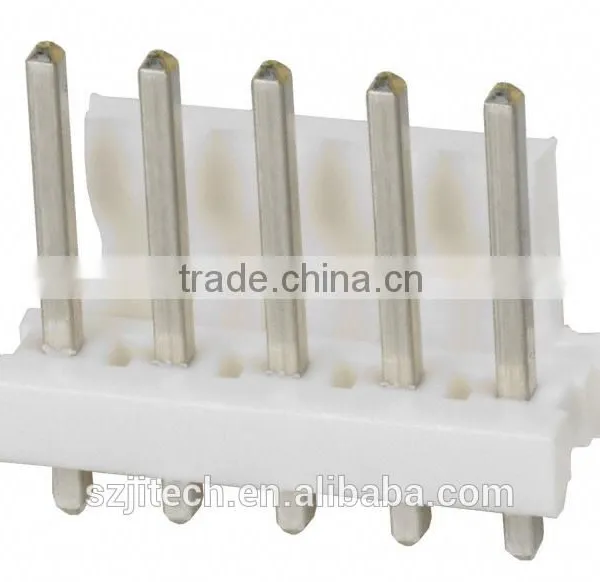

3.96mm pitch vertical PCB Mounting Orientation wire to board plug header connector TE 5 pin connector tyco 640445-5 straight

Product Type Features

• PCB Mounting Orientation  Vertical

• Product Type  Connector

• Connector Type  Header

• Connector System  Wire-to-Board

• Strain Relief  Without

• Sealed  No

• Connector Style  Plug

• Applies To  Printed Circuit Board

Contact Features

• Contact Mating Area Plating Material  Tin

• Contact Mating Area Plating Thickness 2.54 µm [ 100 µin ]

• Underplate Material  Nickel

• Underplate Material Thickness  1.27 µm, 50 µin

• Contact Style  Straight

• Contact Shape  Square

• Tail Plating Material  Tin

• Contact Termination Area Plating Material  Tin

• Tail Plating Thickness 2.54 µm [ 100 µin ]

• Contact Type  Pin

• Contact Current Rating (A) 7

• Contact Layout  Inline

• Contact Base Material  Copper Alloy

• Centerline 3.96 mm [ .156 in ]

• Housing Color  Natural

• Housing Style  Friction Lock

• Housing Material  Polyester

• Operating Temperature Range -55 – 105 °C [ -67 – 221 °F ]
