Product Details
| Place of Origin | Guangdong, China | Brand Name | SUDONG | |
| Model Number | SD-A630L | Power Source | Electricity | |
| Type | Other, Magnetic Screwdriver, Economical level start type | Rated Voltage | DC 30V | |
| Rated Input Power | 60W | Max. Torque | 45kgf.cm | |
| No-Load Speed | 1000r.p.m | Dimensions | Length:250mm,Diameter:36.5mm | |
| Weight | 750g |
Product Description
Specifications
DC fully automatic SD-A630L Electric Screwdriver1.Fully Automatic,no carbon brush
2.Level-start way
Performance of DC fully automatic SD-A630L brushless Electric screwdriver:
1. It is automatic Electric screwdriver. When the torque is locked, the clutch will automatically trip,the motor power will be automatically off and the electric screwdriver will stop running.
2. Brushless aerospace-graded motor is used and produces no dust, low noise and durability. Maintenance is not necessary.
3. Non-contact switch is used to provide a durable life in which there is no necessity to replace the item often.
4. The forward/ reverse switch is designed according to ergonomics allowing the one-handed operation.
5. Torque adjustment is easy and convenient step-less adjustment by rotating the torque adjustment ring to the left or to the right.Speed can also be adjusted to High (Hi) or Low (Lo).
6. Four screwdriver heads( A,B,C and D) are available.
7. It can be used for laptops,integrated substrates,mobile phones, digital cameras and other products assembly operatons.
8. It is suitable to be used in dust-free workshop.
9. Certification: CE,CCC,ROHS and ISO9001:2008.
Specification:
Model | SD-A600L | SD-A630L | SD-A700L | |||
Input voltage | DC 30V | |||||
Torque range | (Kgf.cm) | 5-25 | 10-35 | 15-45 | ||
(Lbf.in) | 4.4-22 | 8.8-30.81 | 13.2-39.62 | |||
(N.m) | 0.5-2.45 | 0.98-3.43 | 1.47-4.41 | |||
Accuracy | ±3% | |||||
No-Load Speed(r.p.m) ±10% | HI | 1000 | 500 | 500 | ||
LO | 650 | |||||
DC Controller | SD-40A | SD-70 | ||||
Rating Power(W) | 60 | |||||
Screws diameter(mm) | Machine screw | 1.4-3.0 | 1.6-3.0 | 2.3-3.5 | ||
Self-Tapping screw | 1.4-2.6 | 1.6-2.6 | 2.3-3.0 | |||
Weight(g) | 740 | |||||
Length(mm) | 250 | |||||
Bit type

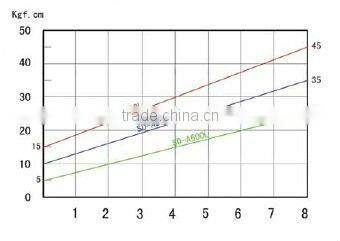

Torque Range:

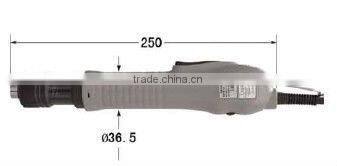

Outlook Dimension:
