Brushless powerful torque Full auto shut-off,Electric screwdriver SD-CA5000AT with power supply

Specifications

SD-CA5000AT PLC controlled electric screwdriver
1.CE Approved Fully Automatic
2.Machine use type,brushless
3.Assembly device

Performance of  SD-CA5000AT PLC controlled Automatic brushless  electric screwdriver :



1.  It is a built-in high performance carbon brush with magnetic motor.



2.  The high-precision magnetic brake and external automatic control circuit are patented and easy for maintenance.



3. Durability is excellent and it can withstand the long continuous fastening screws.



4.  The re-torque is high-precision with high reliability of the fastening screw.



5.  Can be directly by external PLC control and connectivity of the intelligent power controller.



6.  Torque adjustment is easy and convenient step-less adjustment by rotating the torque adjustment ring to the left or to the right.



7.  Four screwdriver heads (A,B,C, and D) are available.



8.  It can be used for mobile phones,digital cameras,MP3,laptops,printers,copy machines and other screw fastening products.



9. Certification: CE,CCC,ROHS and ISO9001:2008.





Specification



Model		SD-CA5000AT	SD-CA6000AT	SD-CA7000AT
Input voltage		DC 30V
Torque range	(Kgf.cm)	2-12	5-25	15-45
	(Lbf.in)	1.74-10.42	4.4-22	13.2-39.62
	(N.m)	0.2-1.18	0.5-2.45	1.47-4.41
Torque accuracy	±3%
Torque adjustment	Stepless adjustment
No-Load Speed(r.p.m) ±10%		1000	1000	500
		650	650
Application power adapter		SD-30V60W3P
Rating Power(W)		60W	60W
Screws diameter(mm)	Machine screw	1.6-3.0	2.6-4.0	3.5-5.5
	Self-Tapping screw	1.6-2.6	2.5-3.5	3.0-5.0
weight(g)		504	611
Application to the 90 degree adapter		SD-Q2	SD-Q3

Bit type

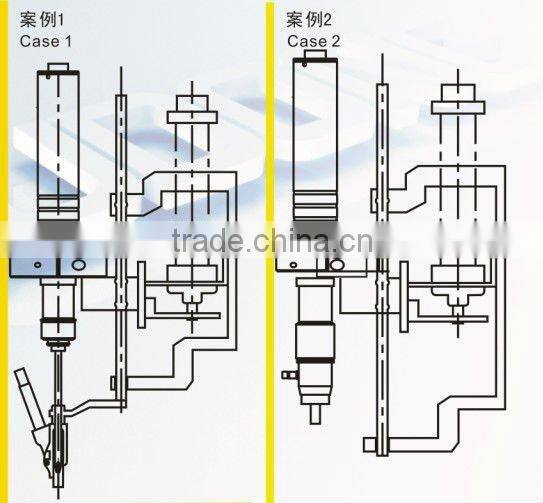

cases:

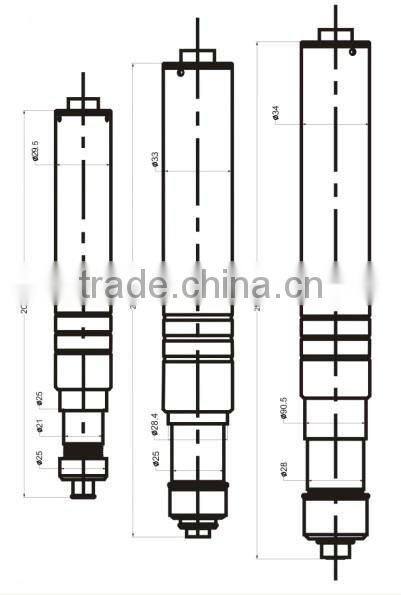

Outlook Dimension:
