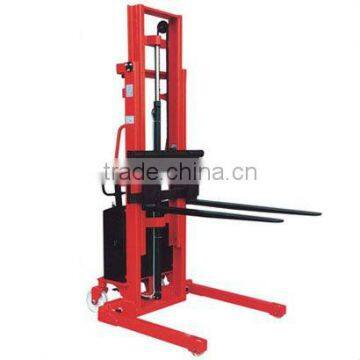

Straddle-leg semi-electric Stacker SPN15 A

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Shanghai
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	SPN10-A		Usage	Industrial
Structure	Other, Stacker		Material	Other, steel
Wheel	Three-wheel

Product Description

The Specification of Straddle-leg semi-electric Stacker SPN15-A

1KG=2.2LB 1INCH=25.4MM

Model	unit	SPN1516-A	SPN1525-A	SPN1530-A	SPN1533-A
Capacity	kg	1500	1500	1500	1500
Load center C	mm	400	400	400	400
Lifting height h	mm	75~1600	75~2500	75~3000	75~3300
Fork length l	mm	915	915	915	915
Min turning radius Wa	mm	2200	2200	2200	2200
Outside width between legs	mm	1080~1360	1080~1360	1080~1360	1080~1360
Inside width between legs	mm	960~1240	960~1240	960~1240	960~1240
Outside width between forks	mm	210~800	210~800	210~800	210~800
Inside width between forks	mm	10~600	10~600	10~600	10~600
Lifting speed	mm/s	≥50	≥50	≥50	≥50
Lowering speed	mm/s	Adjustable	Adjustable	Adjustable	Adjustable
Lifting motor	V/Kw	12/1.6	12/1.6	12/1.6	12/1.6
Battery	V/Ah	12/100	12/100	12/100	12/100
Charger	V	220/12	220/12	220/12	220/12
Length l1	mm	1550	1550	1550	1550
Width b	mm	1080~1360	1080~1360	1080~1360	1080~1360
Height h1	mm	2070	1770	2020	2170
Front wheel diameter	mm	100	100	100	100
Rear wheel diameter	mm	200	200	200	200
N.W	kg	390	472	493	531

It can be ordered according to the customer’s requirement
