Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | ZEYU | |
| Model Number | pl | Power(W) | 6.6-11kw | |
| Weight | 2350-11000 kg | Certification | ISO9001:2008 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PL2400 carbon steel Concrete batcher with good condition for concrete
Introduction
PL series batching machine is used for the preparation of concrete mixes. The machine can be equipped with three aggregates (or according to the user's requirements), the use of electronic scales, PLK-3-type ingredients automatic control of process control instrument, high batching accuracy, adaptability, easy to operate, reliable etc, the ratio can be adjusted, and is simple and intuitive.
PL series batching machine with JS series concrete mixer combined into a concrete mixing plant, suitable for large, medium-sized hydropower projects, construction sites and concrete precast factory use, improve production efficiency, reduce labor intensity, and to ensure the quality of concrete ideal equipment.
Technical parameter
| Weighing hopper volume (m3) | Storage hopper volume (m3) | Productivity (m3/h) | Batching accuracy(%) | Maximum says value(kg) | Aggregate species(kind) | Feeding height(m) | Total power(kw) | Total weight (kg) | ||
| PL800two hoppers | 0.8 | 3 | 48 | ±2% | 1500 | 2 | 2300 | 6.6 | 2350 | |
| PL800 three hoppers | 0.8 | 3 | 48 | ±2% | 1500 | 3 | 2300 | 4 | 3600 | |
| PL1200 three hoppers | 1.2 | 4 | 60 | ±2% | 2000 | 3 | 2400 | 4 | 4200 | |
| PL1200 four hoppers | 12 | 4 | 60 | ±2% | 2000 | 4 | 2400 | 5.5 | 5700 | |
| PL1600 three hoppers | 1.6 | 6 | 80 | ±2% | 3000 | 3 | 3100 | 4 | 5500 | |
| PL1600 four hoppers | 1.6 | 6 | 80 | ±2% | 3000 | 4 | 3100 | 5.5 | 6000 | |
| PL2400 four hoppers | 2.4 | 8 | 120 | ±2% | 4000 | 4 | 3600 | 7.5 | 8100 | |
| PL3200 four hoppers | 3.2 | 16 | 160 | ±2% | 5000 | 4 | 3800 | 11 | 10500 | |
| PL4800 four hoppers | 4.8 | 20 | 200 | ±2% | 6000 | 4 | 3800 | 11 | 11000 | |

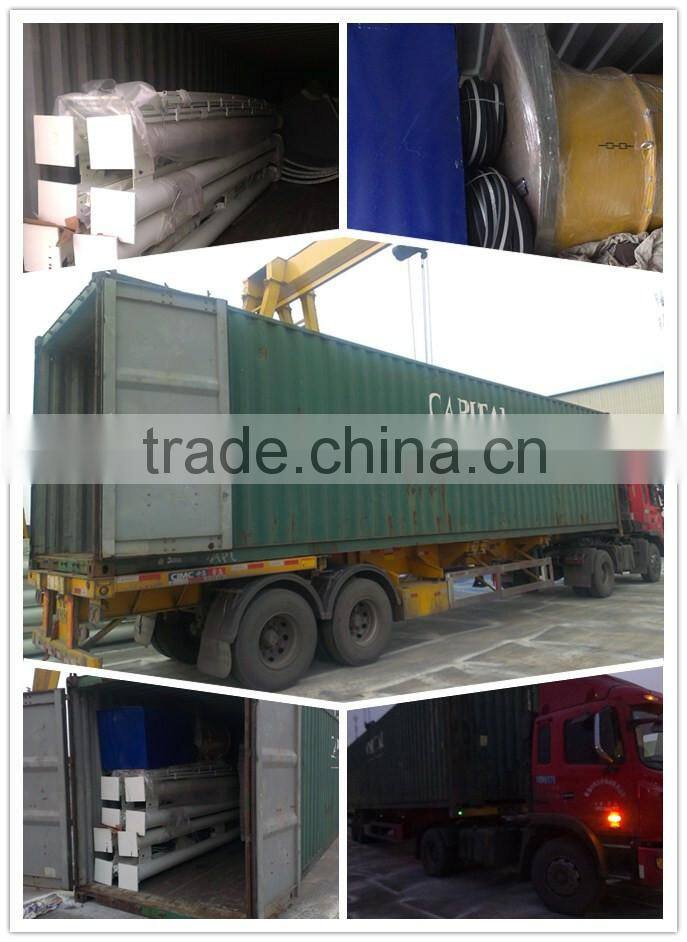

Delivery
Engineers available to service machinery overseas. The principle of survive on quality,develop on science and the credit on service, gain the universal admiraton from consumers.
Company proplile
Shandong Zeyu Heave Industry Science and Technology Co., Ltd. is a modern company on science, industry and trade, composed of a professional team engaging in construction machinery industry for more than ten years. With advanced technology, excellent product quality and perfect after-sale service, company products are popular all over the word, gain the universal admiration from consumers and enjoy a high reputation in the market.
Certificate
All details can be customized exactly according to your requirements, please leave a message and I will reply you in 24 hours. I will try my best to satisfy you well as per your request!
