Aggregate Hopper PL4800 With Weighting Hopper Capacity 4.8m3
- China Qingdao port
- T/T L/C
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | ZEYU | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

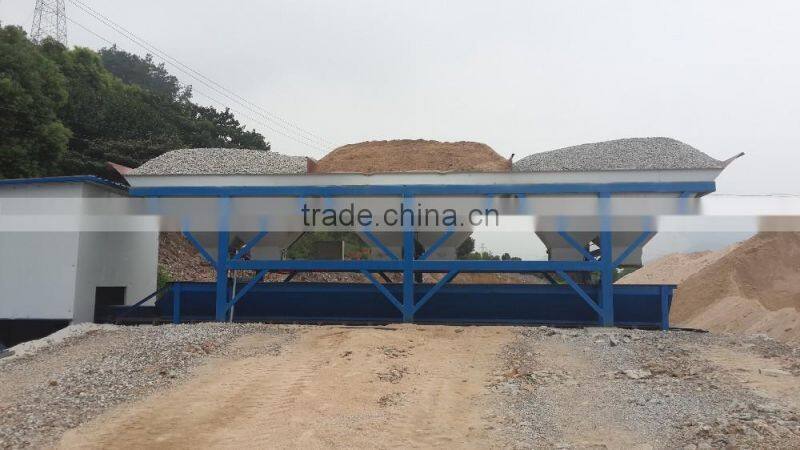

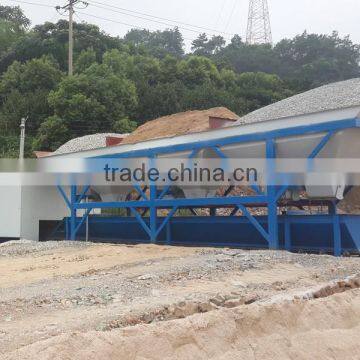

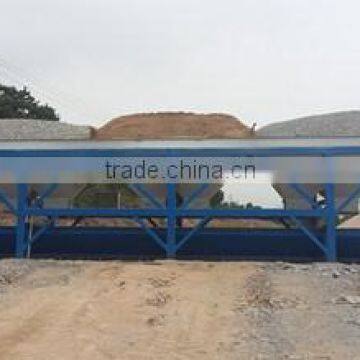

aggregate hopper PL4800 with weighting hopper capacity 4.8m3
PL series batching machine is used for the preparation of concrete mixes. The machine can be
equipped with three aggregates (or according to the user's requirements), the use of electronic scales, PLK-3-type ingredients automatic control of process control instrument, high batching accuracy,adaptability, easy to operate, reliable etc, the ratio can be adjusted, and is simple and intuitive.PL series batching machine with JS series concrete mixer combined into a concrete mixing
plant, suitable for large, medium-sized hydropower projects, construction sites and concrete precast
factory use, improve production efficiency, reduce labor intensity, and to ensure the quality of concrete ideal equipment.
Item Model | Weighing hopper volume | Storage hopper volume | Productivity (m3/h) | Batching accuracy(%) | Maximum says value(kg) | Aggregate species | Feeding height(m) | Total power(kw) | Total weight (kg) | Shape dimension (L*W*H) |
PL800two hoppers | 0.8 | 3 | 48 | ±2% | 1500 | 2 | 2300 | 6.6 | 2350 | 5600*1560*2760 |
PL800 three hoppers | 0.8 | 3 | 48 | ±2% | 1500 | 3 | 2300 | 4 | 3600 | 8400*1560*2810 |
PL1200 three hoppers | 1.2 | 4 | 60 | ±2% | 2000 | 3 | 2400 | 4 | 4200 | 9270*2060*2900 |
PL1200 four hoppers | 12. | 4 | 60 | ±2% | 2000 | 4 | 2400 | 5.5 | 5700 | 11200*2000*2800 |
PL1600 three hoppers | 1.6 | 6 | 80 | ±2% | 3000 | 3 | 3100 | 4 | 5500 | 9700*2115*5360 |
PL1600 four hoppers | 1.6 | 6 | 80 | ±2% | 3000 | 4 | 3100 | 5.5 | 6000 | 12900*2115*3360 |
PL2400 four hoppers | 2.4 | 8 | 120 | ±2% | 4000 | 4 | 3600 | 7.5 | 8100 | 12900*2115*3360 |
PL3200 four hoppers | 3.2 | 16 | 160 | ±2% | 5000 | 4 | 3800 | 11 | 10500 | 14000*2325*3800 |
PL4800 four hoppers | 4.8 | 20 | 200 | ±2% | 6000 | 4 | 3800 | 11 | 11000 | 14000*2325*3800 |

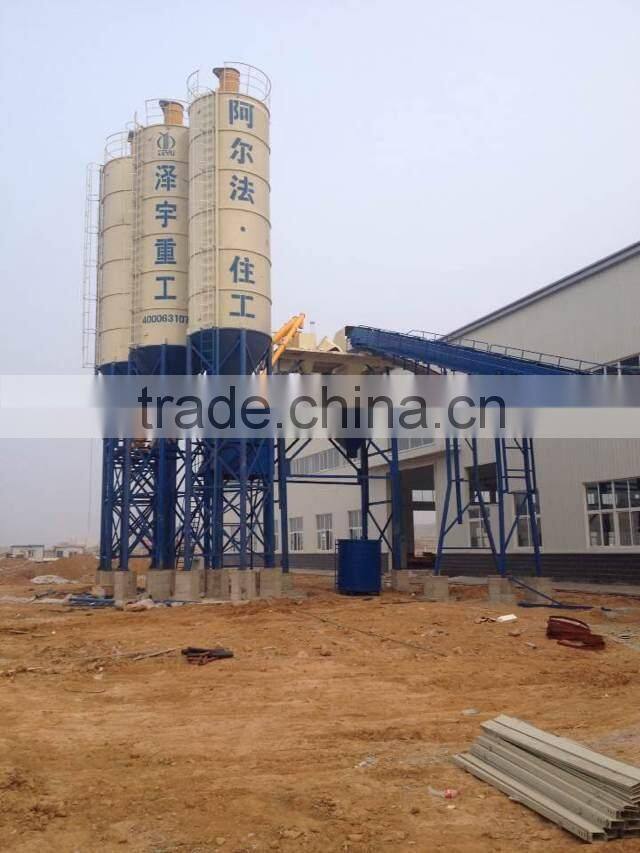

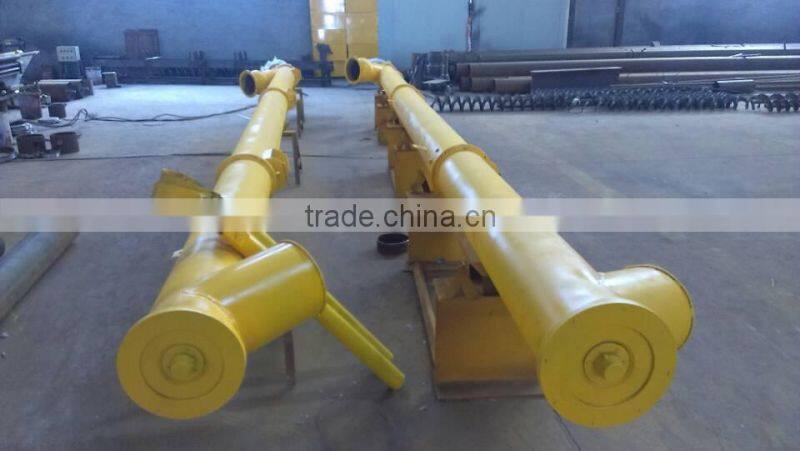

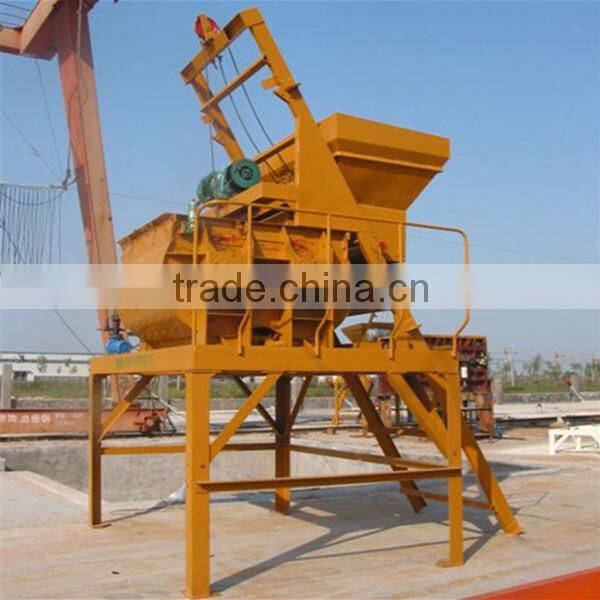

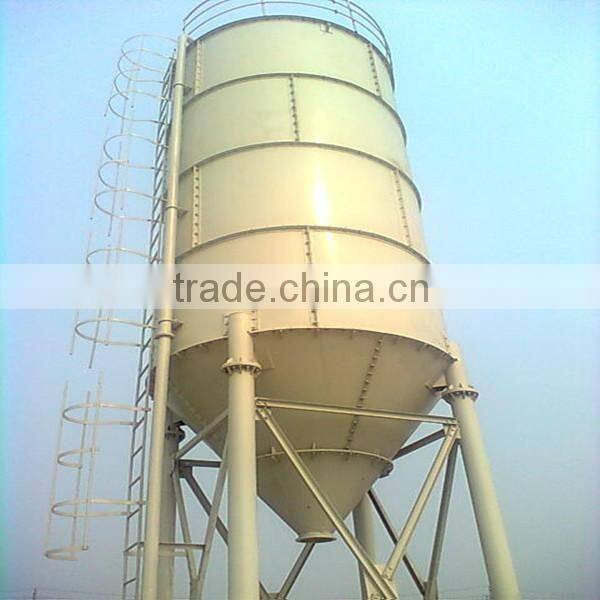

Concrete batching plant parts:

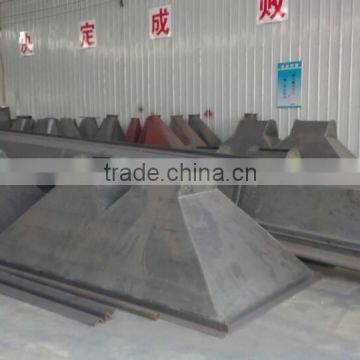

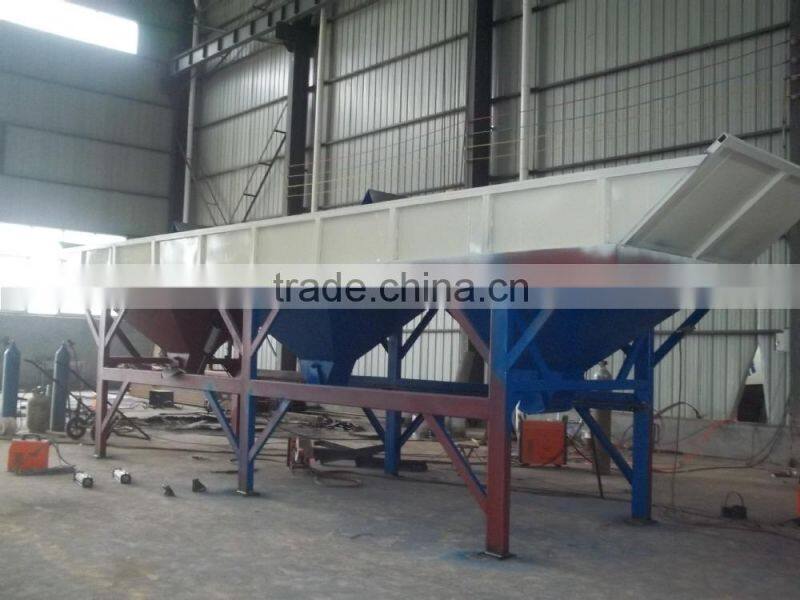

workshop
Certificates:
Contact detail:
Sales Representative: CICI Wang
Mobile:86-13370587902
Wechat:13370587902
