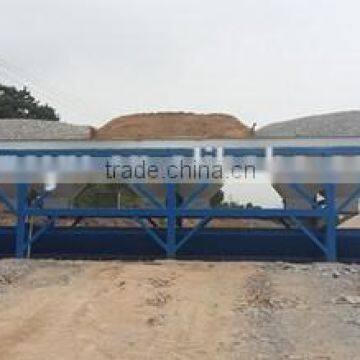

Product name: good quality with competitive price PL1600 cement concrete dosing machine made in China
PL series batching machine is used for the preparation of concrete mixes. PL1600Q is equipped with three aggregates (or according to the user's requirements), the use of electronic scales,PLK-3-type ingredients automatic control of process control instrument, high batching accuracy,adaptability, easy to operate, reliable etc, the ratio can be adjusted, and is simple and intuitive.
PL series batching machine with JSseries concrete mixer combined into a concrete mixing
plant, suitable for large, medium-sized hydropower projects, construction sites and concrete precastfactory use, improve production efficiency, reduce labor intensity, and to ensure the quality of concrete ideal equipment.
Item Model | Weighing hopper volume | Storage hopper volume | Productivity (m3/h) | Batching accuracy (%) | Maximum says value (kg) | Aggregate species | Feeding height (m) | Total power (kw) | Total weight (kg) | Shape dimension (L*W*H) |
PL800two hoppers | 0.8 | 3 | 48 | ±2% | 1500 | 2 | 2300 | 6.6 | 2350 | 5600*1560*2760 |
PL800 three hoppers | 0.8 | 3 | 48 | ±2% | 1500 | 3 | 2300 | 4 | 3600 | 8400*1560*2810 |
PL1200 three hoppers | 1.2 | 4 | 60 | ±2% | 2000 | 3 | 2400 | 4 | 4200 | 9270*2060*2900 |
PL1200 four hoppers | 12. | 4 | 60 | ±2% | 2000 | 4 | 2400 | 5.5 | 5700 | 11200*2000*2800 |
PL1600 three hoppers | 1.6 | 6 | 80 | ±2% | 3000 | 3 | 3100 | 4 | 5500 | 9700*2115*5360 |
PL1600 four hoppers | 1.6 | 6 | 80 | ±2% | 3000 | 4 | 3100 | 5.5 | 6000 | 12900*2115*3360 |
PL2400 four hoppers | 2.4 | 8 | 120 | ±2% | 4000 | 4 | 3600 | 7.5 | 8100 | 12900*2115*3360 |
PL3200 four hoppers | 3.2 | 16 | 160 | ±2% | 5000 | 4 | 3800 | 11 | 10500 | 14000*2325*3800 |
PL4800 four hoppers | 4.8 | 20 | 200 | ±2% | 6000 | 4 | 3800 | 11 | 11000 | 14000*2325*3800 |
Shandong Zeyu Heavy Industry Science and Technology Company is specialized in manufacturing construction machines. Main products of our company include HZS concrete mixing plant, HLS concrete mixing plant, YHZS concrete mixing plant, JS concrete mixer, PL batching machine, cement silo and screw conveyor. Our exquisite technology and various testing equipment provide a strong guarantee for producing the firstclass products. Besides, we have perfect management system and have passed the ISO9001 quality attestation.
