L10-p2 water level switch
Product introduction:
Rated power |
10W |
50W |
Switching voltage max |
200VDC /140VAC |
300VAC /350 VDC |
Switching current max |
DC 0.5A / AC 0.5A |
DC0.7A/ AC0.5A |
Carry current max. |
1A |
2.5A |
Ambient temperature |
-20~135°C |
|
Housing material |
PT |
|
Float ball material |
PT |
|
Float SG |
0.7 |
|
Fitting type |
M10 |
|
Lead wire |
22 AWG |
|
potting |
Pu/Epoxy |
|
Sealing ring |
silicon |
|

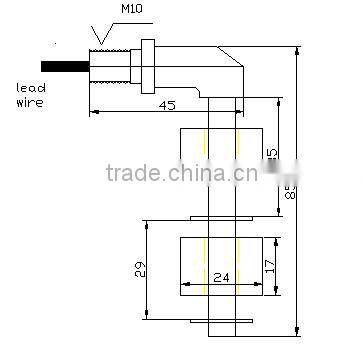

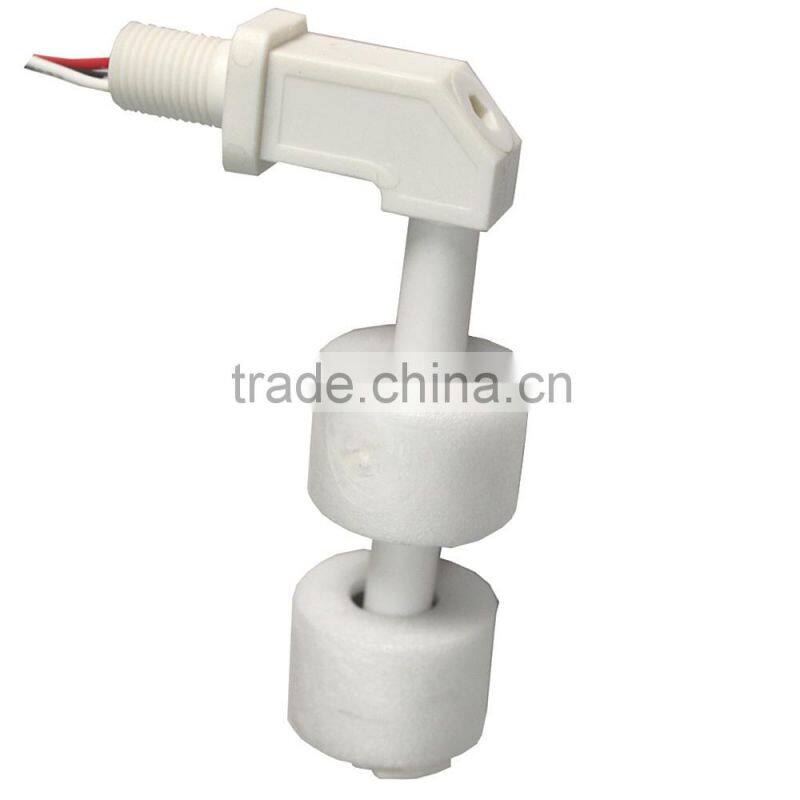

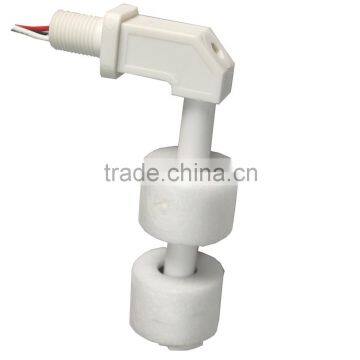

Water level L10-P2 (see Figure 1) for vertical mount multiple pointfloat level switch ,which used in the Air conditiona,m (like Media and Greek )our hot sell models , which is made of PP material Its features simple structure, light weight ,mini volume, anti corrosive ,food grade optional.
It can be easily installed and used, safely and reliable for the water tank level control,it has higher speed,
longer life, stronger anti-load impact to
compared with the traditional electronic switches and it without complex circuit ,will not be disturbed ,
easily for the
level control.
Note
PP characteristics : corrosion resistance, rust resistance Light weight, low density temperature resistance anti-aging, sufficient thermal stability Food Grade operation, low price cost
PP are Widely used in different industrial area ,like the chemical plant processing chemical storage tank,laboratory equipment,Normal household equipment food and beverage equipment and etc.
General information
- 1. Switches should be installed rigidly so that float or floats are free to move as the liquid level changes.
- 2. Switches should be mounted in a tank area free of severe turbulence turbulence or protected from such turbulence by appropriate and adequate slosh shields.
- 3. Vertical switch stems should be vertical for best results, but satisfactory operation is possible in most liquids with the stem at up to a 30 degree angle from vertical.
- 4. Side mount switch stems must be mounted with arrow vertically either up or down depending on switch operation .
- 5. Care should be taken that switches are always operated within electrical ratings.
- 6. Orientation for standard vertical switches can be changed from normally open to normally closed dry or vice versa by removing the float and reversing in the stem.
Maintenance should consist of inspection to see that the float is free to move and coated with any substance , which would change its weight or volume significantly. IF this occurs, this float should be cleaned .This is easily accomplished without disturbing the installation . In addition , the stem may be wiped down to remove any build-up.The only repair possible in the field is replacement of either the float or stem . Dents or nicks on the float are usually
of no consequence to operation.
Cautions
- The pressure, temperature and electrical limitations shown for the specified level switches must not be exceeded.
- The pressures and temperatures must take into consideration possible surges in the temperature and pressure of the system.
- The liquids used must be compatible with materials of construction. Specifications of materials will be given upon request.
- Life expectancy of the switch varies with applications. Contact the factory if life cycle testing is required.
- Ambient temperature changes can affect switch set points . Since specific gravities of liquids vary with temperature . Consult factory for assistance.
- Level switches have been designed to be shock and vibration resistant. For maximum life .Both shock and vibration should be minimized. Consult factory for assistance .
- Excessive contaminants in fluid may inhibit float operation .and occasional wipe down may be necessary.
- Level switches must not be field repaired.
- Physical damage to product may render product unserviceable
- Installation in vessel made from magnetic materials may affect operation.
1043-PT high corrosive resistance teflon material

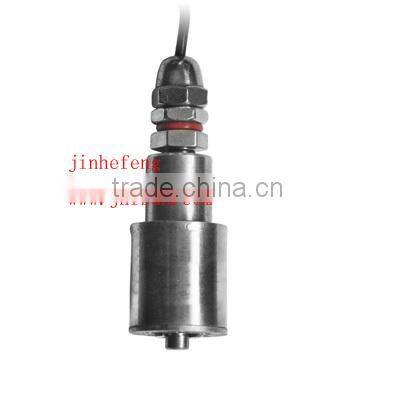

Anti turblenlance ,boiler steam level switches 0186-S

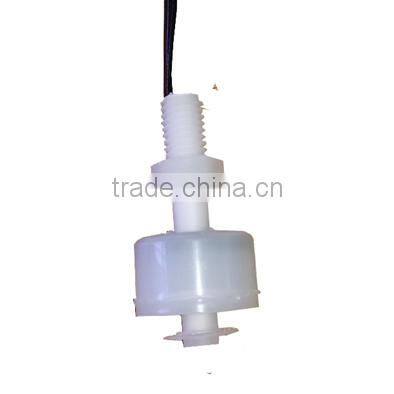

NBR float sensor level switches
The application of the level switches
Sanitary sensor level switch that suit for a variety of food and beverage equipment ,medical equipment and industrial equipment,such as household appliances, humidifiers, chillers, fog machine, constant temperature and humidity level detection machines, printing machines, medical equipment, beverage machinery, and pressure tank, the signal remote switch police, health, environmental, toxic, corrosive liquid with acid use.
About our company:
Jinhefeng Industrial Electrical Co.,Ltd has been doing researched and development, manufacture ,sell, service as
one of high-tech enterprise .We are specilized in the flow switchs and flow level sensors market for more than
10 years,and supply a broad range of high quality liquid level switch and temperature sensing switch that wildly
used in the different industrial equipment, like the Water boiler , water heater, drinking fountain, water filters
visual printting machine,air conditioning,bathroom equipment, water treatment equipment ,generator equipment
oil chemical and precision machine and etc.
