Factory direct sale & CE approved mobile loading yard ramp for sale
Our Services
Packaging Details : Plywood case or manual packing.
Shipping Details : Within 15 working days after receiving the deposit.
1. Introduction
◊. Ouiet and convenient devices
The scissor lift takes storage battery as the power source. and low noise and no emission when working, so that it can be used to indoor occasions such as workshops, warehouse, hotels, etc.
◊. Flexible
The steering wheel can make a 90° turn and run in both high and low speeds, besides, it can be also used in narrow spaces.
◊. Compact structure
The size of this self-propelled electric scissor lift lower than 6m is compact , the whole width is 760mm. The guardrails can be folded, which can go through small doors and operate in narrow space.
◊. Larger working space
The platform can be extend on one side or both sides. And enlarge the working space.
◊. Various choices
There are two choices in drive system: hydraulic motor and electric motor .
Many different models of product for you choice
2. Main parameter
| Model | Loading capacity(kg) | Variable range(mm) | Ramp length(mm) | Ramp width(mm) | Wheel trath(mm) | Hand times | Weight(kg) |
| SJDQ6-0.9 | 6000 | 900 | 10500 | 2000 | 1500 | 50 | 2100 |
| SJDQ8-0.9 | 8000 | 900 | 10500 | 2000 | 1500 | 50 | 2300 |
| SJDQ10-0.9 | 10000 | 900 | 10500 | 2000 | 1500 | 50 | 2500 |
| SJDQ12-0.9 | 12000 | 900 | 10500 | 2000 | 1500 | 50 | 2700 |
| SJDQ15-0.9 | 15000 | 900 | 10500 | 2000 | 1500 | 50 | 3200 |
3. Features
◊ CE ISO
◊ Without installation and easy operation
◊ Easy and convenient maintenance
◊ Improving working efficiency, reducing the manpower cost
◊ Adopting high strength steel,structure is solid and durable
◊ mobile yard ramp moves freely and operation is simple, making up for defect that a fixed platform can not be moved. So we can save working time.
◊ Both sides of the platform are fitted with safety guard to prevent tiptoes from being accidently.
4. Application
-- Our products are widely used in terminals, stations, warehouses and other places.
-- According to the different needs of users, as the special design in terms of dimensions, load bearing and so on.
-- Ramps mounted on the side of the dock, and the dock floor and sides flush.
-- Ramps may be on the deck, under the tilted outer end goods may be higher or lower than the flat-screen, and make the car high.
5. Mobile loading yard ramp operation process
◊. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
◊. Drive the car under the plate.
◊. Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hyraulic system and the tyres of ramp do not carry the weight.
◊. Operating starts.
◊. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
◊. Uplifting the afterbody of the ramp to move around hang on the truck.
6. Product show

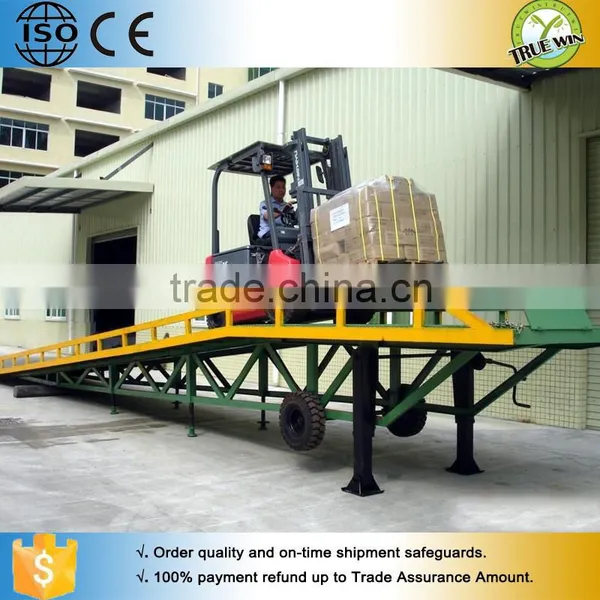

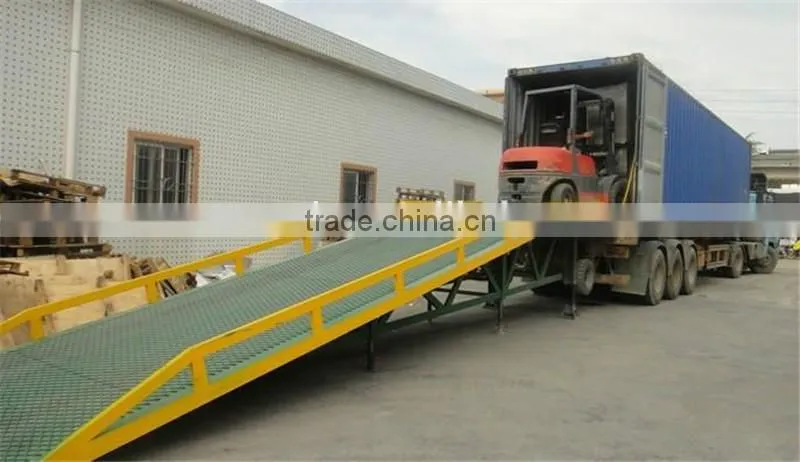

1. the whole show of self-propelled hydraulic lifting platform

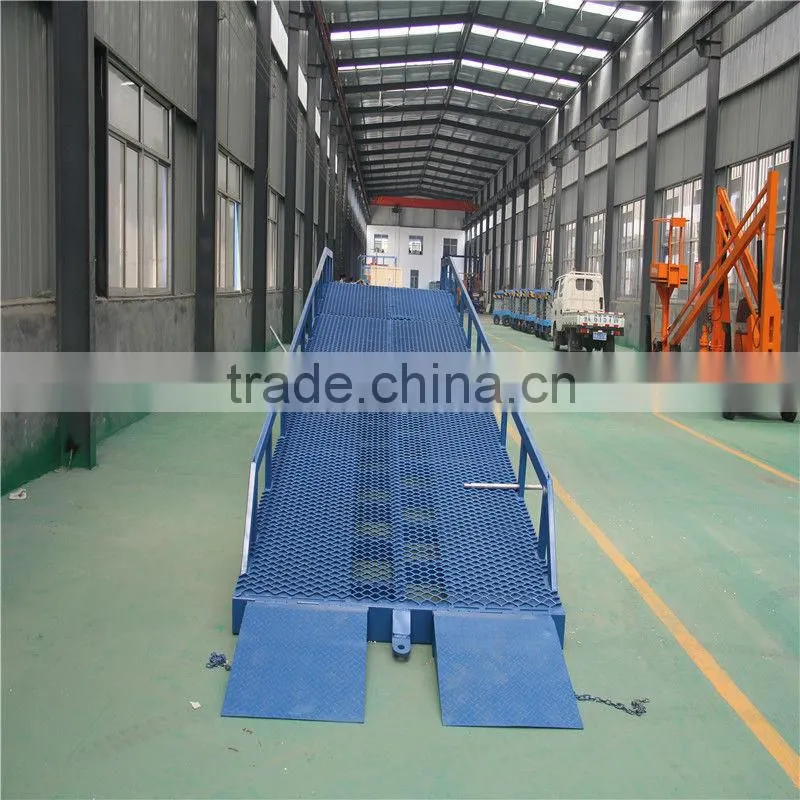

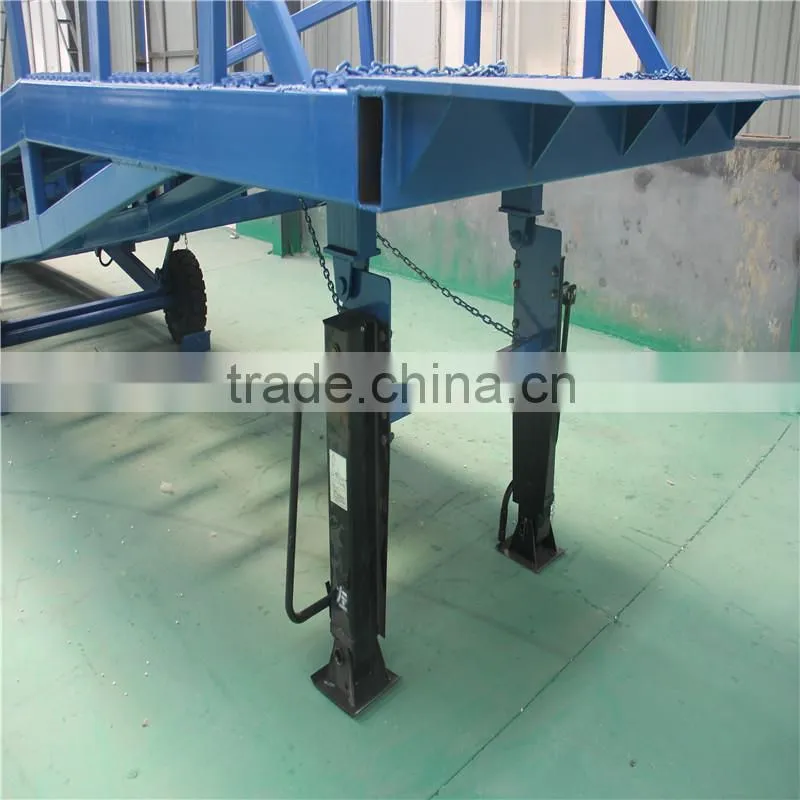

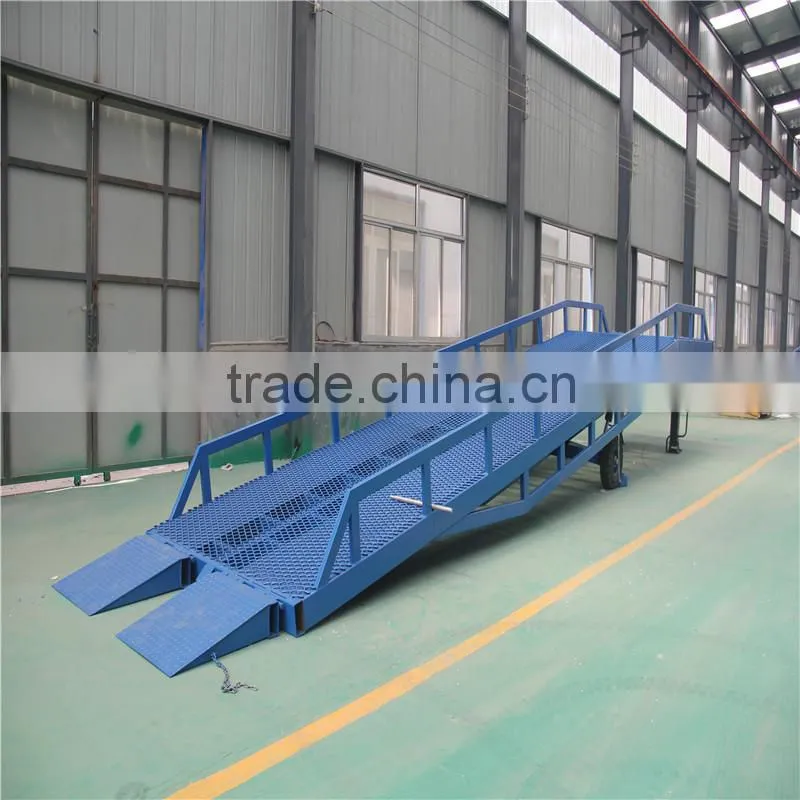

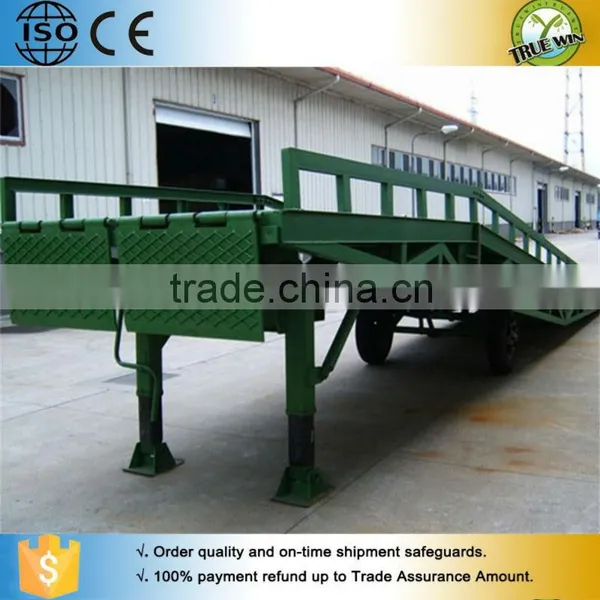

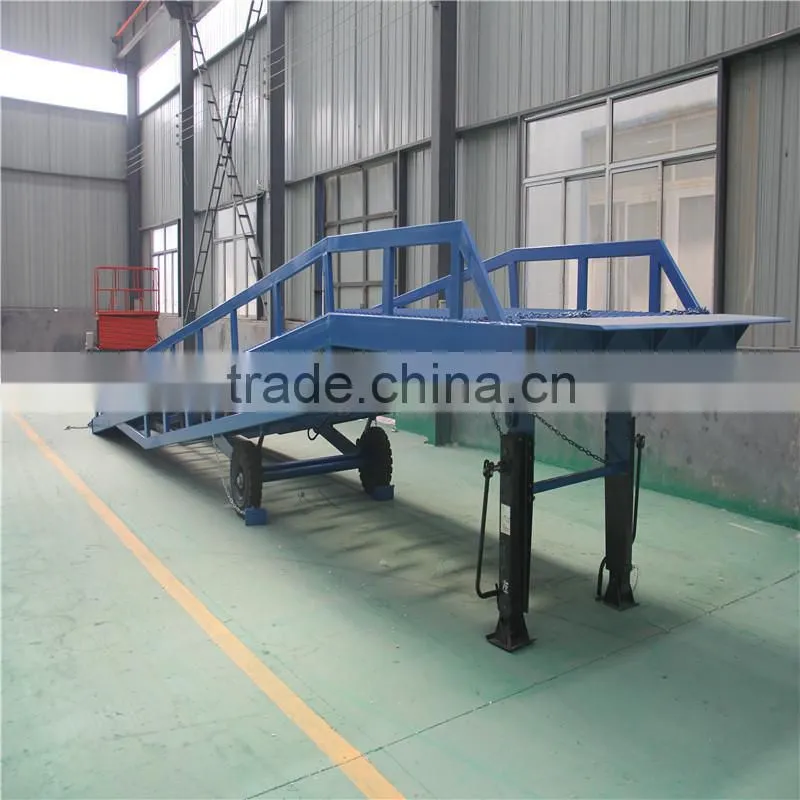

2. the design of mobile yard ramp
3. our factory
FAQ:
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Q:What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:What’s the advantage of your company?
A:We have exported our lifts and service to more than 100 countries. We have speclized team work for you, you will get our feedback within 24 hours./ Germany and Italian advancedmanufacturering technology.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
Contact us:
Any questions, welcome to contact us
Office Tel: +86 0531 85942227
QQ: 3332678598
