--Adjustable height:1.2m-1.7m
--Stable and convenient
--Electric hydraulic driving
--Protection board design
--Vertical travel:900mm
--Material:High-duty steel
Electric hydraulic driving High-duty steel ramps forklift hydraulic dock ramps

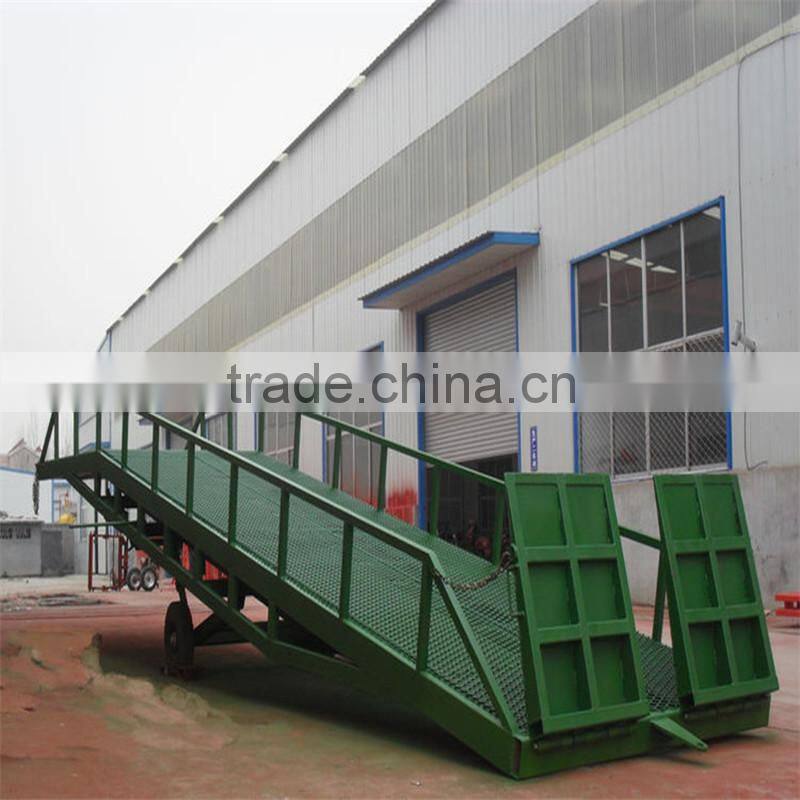

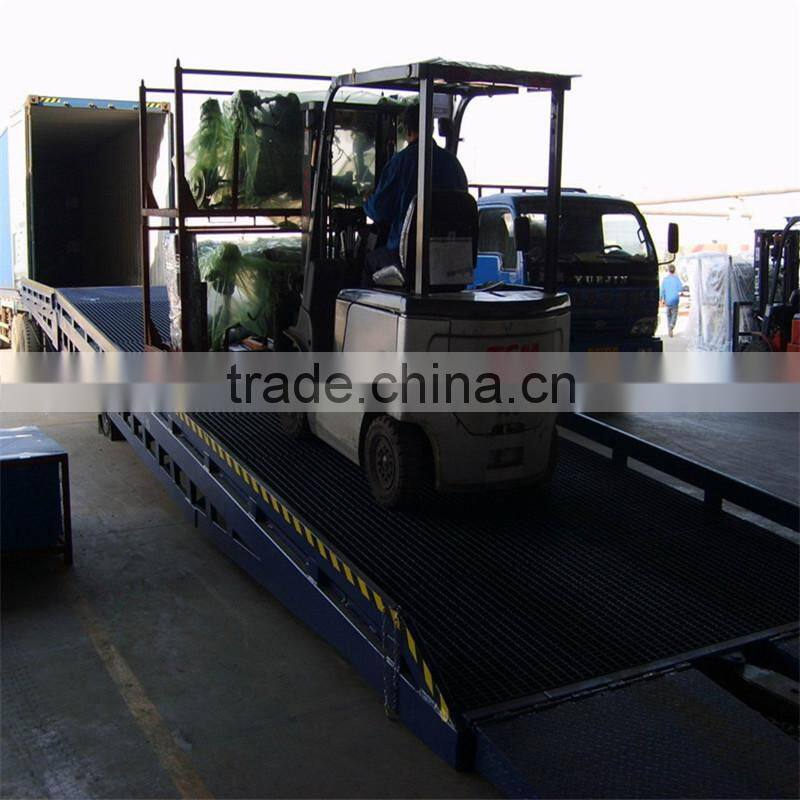

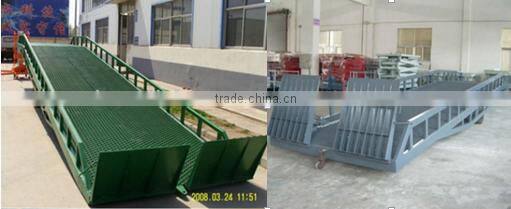

Hydraulic dock ramp is the special auxiliary equipment used for loading and unloading of goods. Its height can be adjusted with the different heights of lorries. Some transport vehicles like forks can directly move into the wagon box with goods in using it, and only need one person operating.
1.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
2.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
3.Manual hydraulic elevator system
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
4.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
1.The ramp using the hydraulic pump as lifting power, and no need electric power source, can easily adjust the height by hand-cranked
2.Adopting anti-slip checkered steel plate to guarantee good anti-slip performance of the platform
3.We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation, it will extend the tyres and the ramps service life.
4. Adopting imported sealing member to guarantee good sealing performance of the hydraulic system.
-- the ramp can be operated by single person easily, in this way saving people work and promoting work efficiency.
-- Without installation and easy operation
-- Easy and convenient maintenance
-- Improving working efficiency, reducing the manpower cost
-- Adopting high strength steel,structure is solid and durable
-- mobile yard ramp moves freely and operation is simple, making up for defect that a fixed platform can not be moved. So we can save working time.
Model |
Load capacity(t) |
Luffing range(m) |
Length(m) |
Width(m) |
Wheel tread (m) |
Max height(m) |
SJDQ6-0.9 |
6 |
0.9 |
10.5 |
2 |
1.5 |
1.7 |
SJDQ8-0.9 |
8 |
0.9 |
10.5 |
2 |
1.5 |
1.7 |
SJDQ10-0.9 |
10 |
0.9 |
10.5 |
2 |
1.5 |
1.7 |
SJDQ12-0.9 |
12 |
0.9 |
10.5 |
2 |
1.5 |
1.7 |
SJDQ15-0.9 |
15 |
0.9 |
10.5 |
2 |
1.5 |
1.7 |
1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2. Drive the car under the plate
3. Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hyraulic system and the tyres of ramp do not carry the weight.
4. Operating starts.
5. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck
6. Uplifting the afterbody of the ramp to move around hang on the truck
1.All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Several sets wearing parts will be free for you.
We are a professional manufacturer of kinds of Hydraulic Lift in China. Welcome to visit our website for more details
Shan Dong True Win Construction Material Co.,Ltd is a professional manufacturer of aerial working platforms,logistics equipments and handling equipment for logistics ,Our company main products are: Mobile scissor lift, Self-propelled scissor lift, Stationary scissor lift, Aluminum alloy lift , Crank arm type lift, Guide rail lift, and Hydraulic yard ramp,have 8 series and more than 60 varieties. They are widely used for many industries such as plant maintenance, industrial installation, equipment's repair and maintenance, property management, warehouse, airport, port, station, gas station, stadium, museum, exhibition hall. all of our products have passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China and also has passed ISO9001-2000 quality system certification , the quality and performance of our products have won acceptance,all its products are not only sold well at home, but also exported to 30 countries around the world,mainly in Europe , south-Africa ,middle-east,south-east Asia,USA and south-Africa.Our products can fully meet the needs of different customers ,If you are interested in our products, please feel free to contact us for more information.we will be your the best reliable friend with our complete product range, excellent product quality and best sales services.
FAQ:
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Q:What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:What’s the advantage of your company?
A:We have exported our lifts and service to more than 100 countries. We have speclized team work for you, you will get our feedback within 24 hours./ Germany and Italian advancedmanufacturering technology.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
