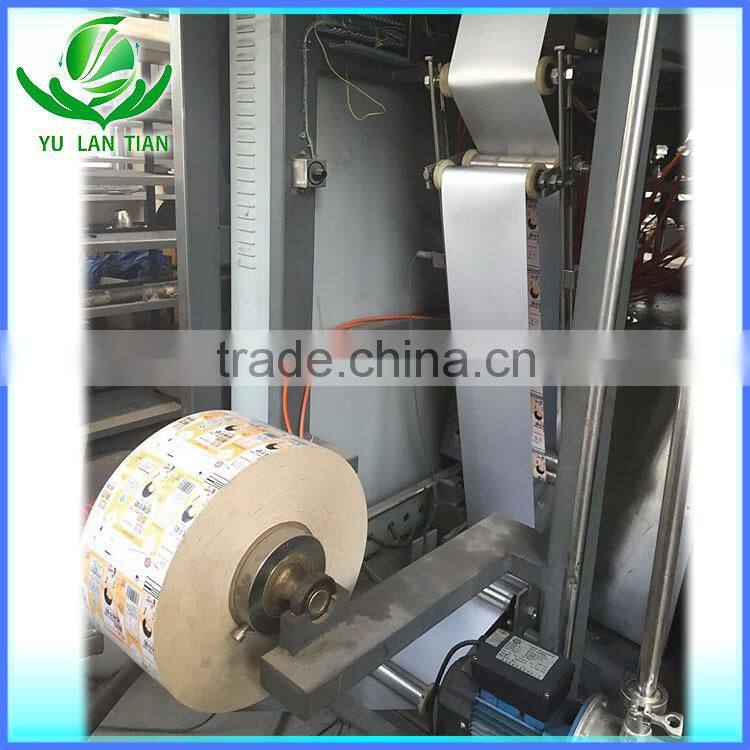

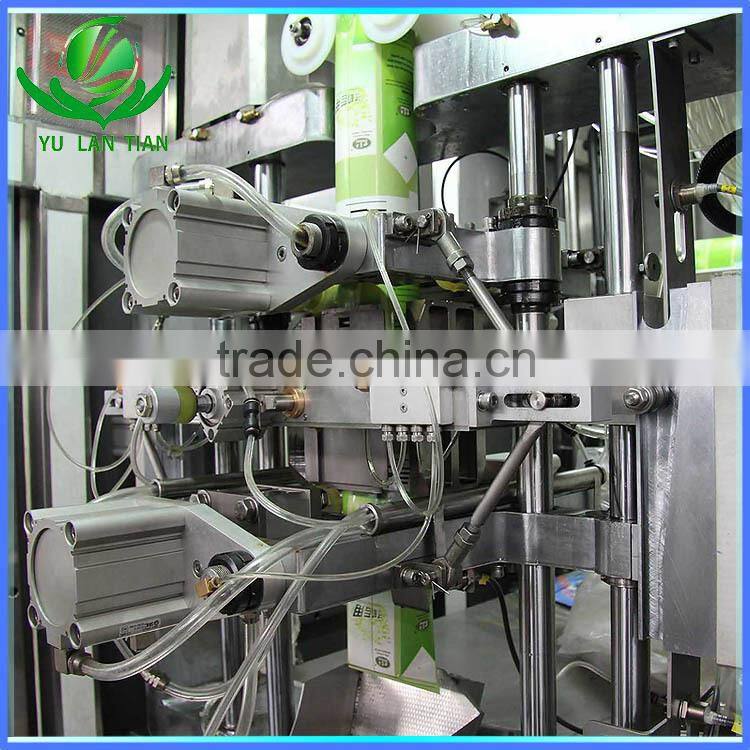

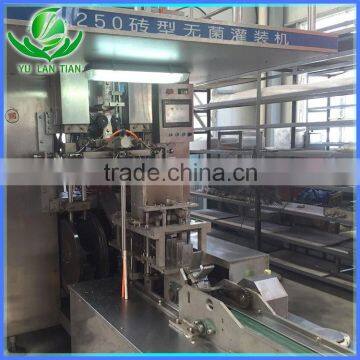

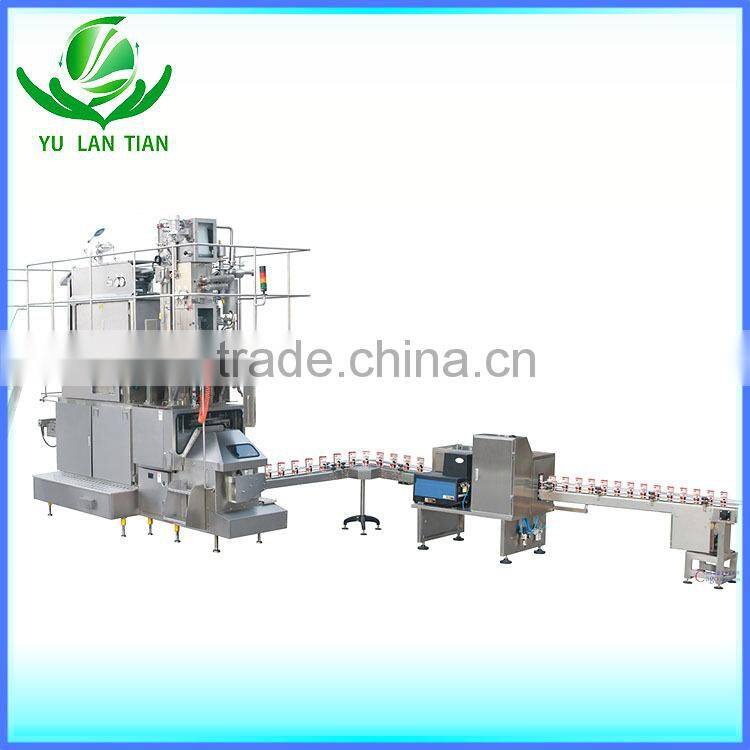

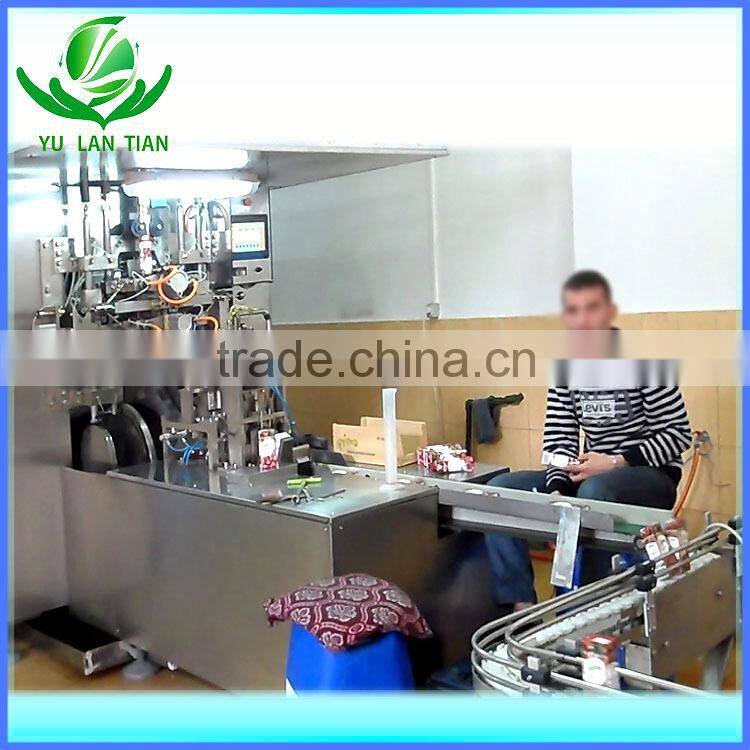

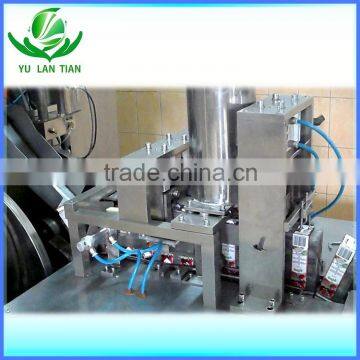

dairy yogurt milk box filling machine
| dairy yogurt milk box filling machine |
Scope of Application:
Suitable for filling liquid dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.
characteristics:
1, pre forming by pre forming method of rectangular, circular shaping method and device instead of Tetra Pak company, make the machine run more stable, more reliable performance, the appearance of the product more perfect.
2, a paper feeding adopts the form of roll, quantitative, sealing and cutting, plastic system, the mechanical hand adopts multi-layer mop type mechanism of mechanical drive instead of Tetra Pak's grasping mechanism, make the machine run more smoothly.
3, automatic completion of smooth roll, printing batch number, date of broadcast pre sealing paste bar, pre into whole process, filling cylinder, transverse sealing, shaping, cutting, corner gluing sent packing.
4, incorporating the latest technology, modern light mechanical and electrical integration design, precision manufacturing. The closed loop control technology to control tension, photoelectric detection, calculation of PLC control, touch type man-machine interface operation is adopted, so that the longitudinal and transverse sealing stronger and more reliable.
5, the main transmission is mechanical, auxiliary transmission of pressure type, scientific and rational use, make the machine run more freely, stability.
6, especially with non stop roll changing device, so that the machine with no need to stop the machine of the easy roll changing and swivel head.
| Features of dairy yogurt milk box filling machine |
1. OEM is offered.
2. Reasonable Price.
3. High quality.
4. Reliable design.
5. Best efficiency.
6. Customized is available.
7. Certifications of the EU or National Standard.
| Specifications of dairy yogurt milk box filling machine |
| Model | 125 | 200 | 250 | 1000 |
| Size | 5350mmX1810mmX3300mm | 5500mmX2000mmX3500mm | 5500mmX2000mmX3880mm | 7500mmX2000mmX4650mm |
| Speed | 3000pcs/h | 2800pcs/h | 3000pcs/h | 1600pcs/h |
| Voltage | 380v 50Hz | 380v 50Hz | 380v 50Hz | 380v 50Hz |
| Max power | 18kw | 16kw | 18kw | 18kw |
| Machine power | 4kw | 4kw | 4kw | 4kw |
| Pressure | 0.65-0.8Mpa | 0.65-0.8Mpa | 0.65-0.8Mpa | 0.65-0.8Mpa |
| Material | Al-PE-Pa complex package | Al-PE-Pa complex package | Al-PE-Pa complex package | Al-PE-Pa complex package |
| Weight | 4000kg | 5000kg | 5500kg | 6000kg |
| Air rate | 1.0m³/min | 1.0m³/min | 1.0m³/min | 1.0m³/min |
| Filling volume | 120-135(g) | 185-210(g) | 245-275(g) | 980-1020(g) |
| Shelf life | 8 months | 8 months | 8 months | 8 months |
| Reject ratio | <=0.5% | <=0.5% | <=0.5% | <=0.5% |
| Packaging of dairy yogurt milk box filling machine |
It is mainly packed by wooden cases or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
| Shipment of dairy yogurt milk box filling machine |
The product can be send to you by seaway or the airway or the other ways as your requirement. It usually takes about 3-8 days for customers to receive their items by the airway. But some times, it will take more time for custom to handle it, so you should wait 2-3 days more.
If choose the seaway, it will be cost one more month as you know .But the freight will be cheap.
2. Experienced staff answer all your questions in professional and fluent English.
3. Customized design is available.
4. Product is guaranteed up to at lest one year from purchase unless manmade damage.
5. We can send our engineer oversea for installation guide.
6. Coming and visiting our factory is welcome.
Nan Yang Yulantian Machinery And Equipment Ltd. Corp. is located in Nan yang City, Henan China. Have build the business relationship with more than 30 countries all over the world ,also have the good response from our clients.With already 16 years experience, we are the proffessional and capable Manufacturer in this field with a good reputation.
We mainly produce Pressure Water Tank, Hydrocyclone, Mechanical Sand Filter, Frequency Conversion Water Equipment and so on. Wellcome to our factory !
Q1: How to choose the right modle?
A1: If you do not know the right modle clearly, you can cnotact us.
Q2: How to contact your conpany?
A2: With TradeManager or Skype or Email or the other ways we have writed upon.
Q3: Can your engineer come to our place for installation guide?
A3: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.
Q4: Do you provide after sales service?
A4: Yes, we do. This product is guaranteed up to one year from purchase unless manmade damage.
Q5: Do you accept a special order?
A5: Yes, we do. We can manufacture all kinds of chemical equipments according to your technical drawings.
Q6: Can you give us your price list?
A6: Sorry, we don’t have any. Our products are all manufactured according to customers’ requirements. So price are all different.
Q7: Can you give us a quotation right now?
A7: Please give us detailed technical data. Then we will make a design andquotation for you as soon as possible.
