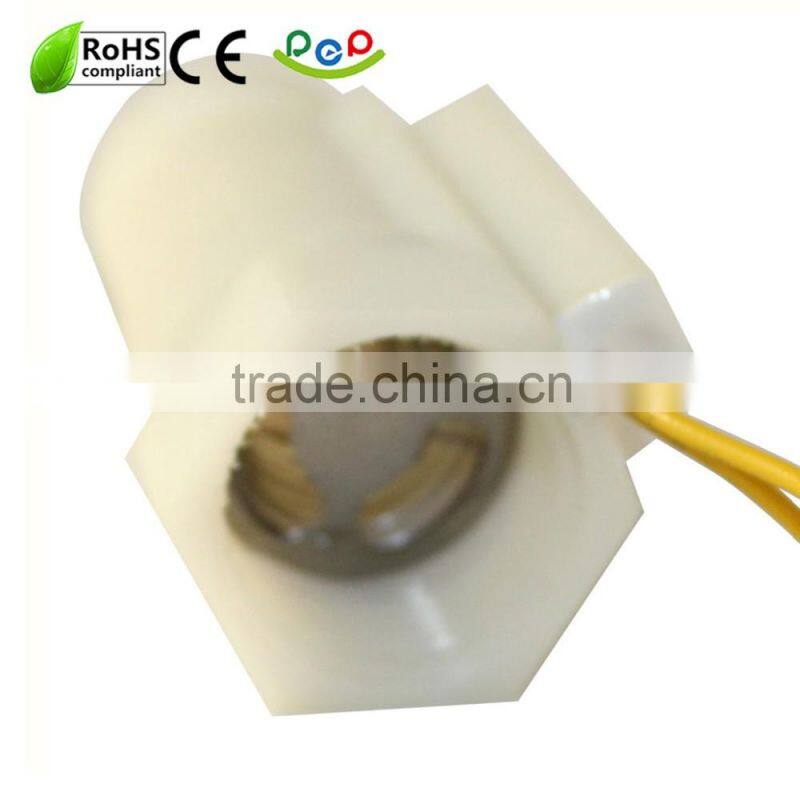

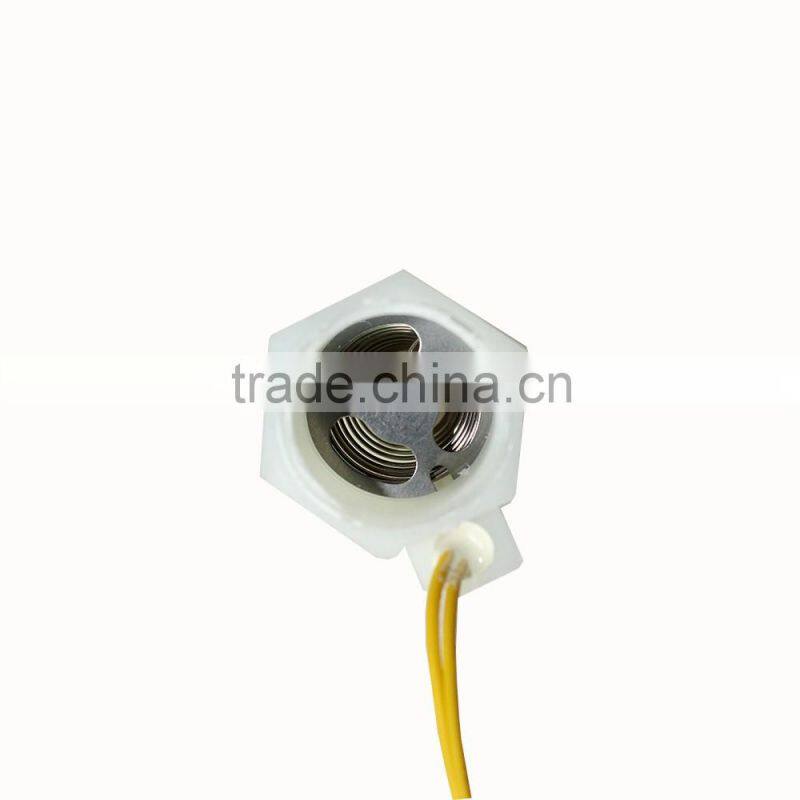

Help CenterMagnetic Type Pump Control Flow Switch
Related Products
-
Cheap Plastic Water Pressure Flow SwitchUS$ 3 - 4MOQ: 1 Piece -
Stainless Mass Air Flow SensorUS$ 20 - 26MOQ: 1 Piece
-
Plastic Mass Air Flow SensorUS$ 1.5 - 2.2MOQ: 20 Pieces
-
Factroy Price 0.5 ,1 Inch Magnetic Flow TransmitterUS$ 20 - 23MOQ: 2 Pieces
-
Manufacture of Stable Pressure TransducerUS$ 1.5 - 2.2MOQ: 1 Piece
Flow switch instructions
Figure 1 Figure 2

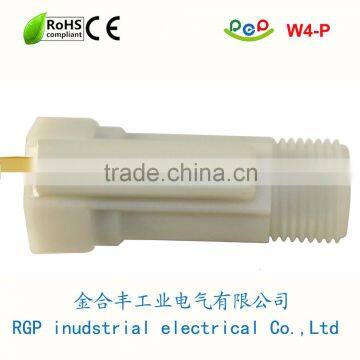

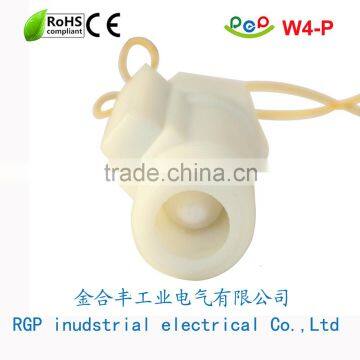

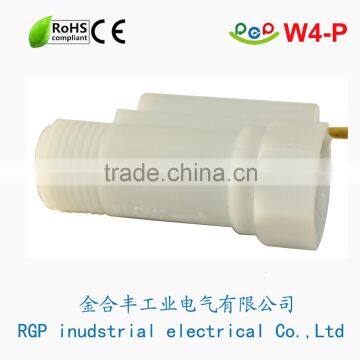

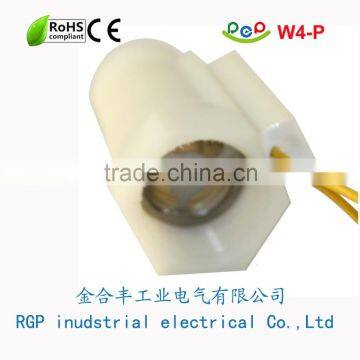

W4-P |
Small power | High power |
| Rated power | 10W | 50W |
| Working voltage | ≥3 V DC | 220VAC/DC |
| Working carry current | 0.5A | 1.0A |
| Breakdown current | 1A | 1.5A |
| Temperature range | -10 ℃ ~+85 ℃ | |
| Material | PP | |
| Sensing water voltage | ≥0.3gf/cm2 | |
| Type of interface | 1/2' (thread cusotmized) | |
| Installation Angle | horizontal,vertical,lean | |
The flow switches are installed on the water pipe through series connection or parallel connection,It is used hydraulic pressure (air pressure) to drive magnetic induction and convey switch signals.
The flow switch send on or off signal according to the flow volume, it is an important component of the fluid flow controls system.If the flow in the pipe is lager than start-up volume, the magnetic valve will be moved by the force of flow pressure, and then it will trigger the reed switch that same sealed in the vavle and send the signal . When the flow volume reduce lower than the start-up volume,magnetic valve core will be forced back to theoriginal place by the reset spring in the vavle.
The flow switches series products
Flow switches Application
Gas and liquid dual-use, it can be widely used in industrial automation, machinery and equipment, industrial compressed air, refrigeration HVAC fields. Flow switch magnet is not flowing waterways, normally used for sewage system pipe.
Adaptation
1. Away from magnetic objects or environment.
2.Output signal is switching, the control object connections must also switch controlling relationship.
3 .the control object signal power shall not exceed the load capacity.
4. The aqueous medium control device is a device available for other medium control. A variety of size,
Jinhefeng industrial electrical co., ltd is devoting to designs and manufacture the sensing switch for more than 10 years .we have striven and now provides some of the best sensor solutions for liquid level, in addition to pressure and temperature measurement, for the most demanding float switch applications. Whether you need a single point float switch or continuous liquid level sensor, JHF Company can direct you to the proper float switch and liquid level sensor solution. Our Company offers standard float switch sensors in stock for same day shipment, and can also custom configures multiple-point float level switches in only 3 days.
