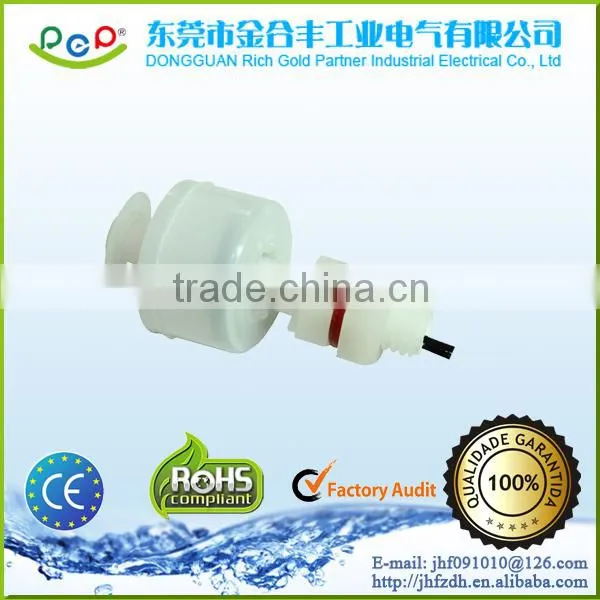

water dispenser level switch with 2meters cable length
Technical parameter
Rated Power |
10W |
50W |
Max Switch Voltage |
220V DC / 140AC |
300V AC / 350V DC |
Max Switch Current |
DC0.5A / AC0.5A |
DC0.7 / AC0.5A |
Max Carry Current |
1A |
2.5A |
Ambient Temperature |
-10 - 85℃ |
|
Housing material |
PP |
|
Float ball material |
PP |
|
Float SG |
0.7 |
|
Fitting Type |
M10 |
|
Lead wire |
22AWG |
|
Potting |
Pu / exposy |
|
Sealing ring |
|
|
PP characteristics : corrosion resistance, rust resistance Light weight, low density temperature resistance
anti-aging, sufficient thermal stability Food Grade operation, low price cost
PP are Widely used in different industrial area ,like the chemical plant processing chemical storage tank,
laboratory equipment,Normal household equipment food and beverage equipment and etc.
General information
- Switches should be installed rigidly so that float or floats are free to move as the liquid level changes.
- Switches should be mounted in a tank area free of severe turbulence turbulence or protected from such turbulence by appropriate and adequate slosh shields.
- Vertical switch stems should be vertical for best results, but satisfactory operation is possible in most liquids with the stem at up to a 30 degree angle from vertical.
- Side mount switch stems must be mounted with arrow vertically either up or down depending on switch operation .
- Care should be taken that switches are always operated within electrical ratings.
- Orientation for standard vertical switches can be changed from normally open to normally closed dry or vice versa by removing the float and reversing in the stem.
E application

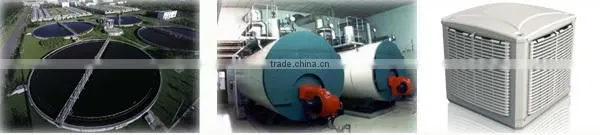

Sanitary sensor switch that suit for a variety of food and beverage equipment ,medical equipment and industrial equipment,such as household appliances, humidifiers, chillers, fog machine, constant temperature and humidity level detection machines, printing machines, medical equipment, beverage machinery, and pressure tank, the signal remote switch police, health, environmental, toxic, corrosive liquid with acid use.
water dispenser level switch with 2meters cable length
water dispenser level switch with 2meters cable length
Dongguan JInhefeng Industrial Electrical Co.,ltd was founded from i2003 till now, Our company has always served as the agent and distributor for Switzerland (Carol), France (Syde) and other European automaton product series. Since 2009, in order to expand the business project, guided by professional European technology, this company conducted independent product R & D, and began to produce and process automation equipment products in October of 2009.Our main products including: liquid level sensor/float sensor/flow switch/cable float/proximity switch that widle applicate in the different industrial equipment area. The factory is located in No.32 Experimental Road, Quantang Industrial Zone, Liaobu Town, Dongguan City.
Currently continue operating products include: liquid level sensing switch/proximity switch/solid state relay/temperature sensing switch/electromagnetic valve/heat radiating fan. Efforts are required for promoting the electrical and mechanical automation, continue to develop a series of new products, which widely used in industrial and civil fields, and actively provide customers with various technical supports.
Jinhefeng's Spirits: Faith moves mountains; jointly create fruit with a common goal.
