1/3" Sony Super HAD II CCD 540TVL CCTV camera

Specifications

Sony Color CCD or IT CCD Option
700TVL High Resolution (650/600/540/480/420TVL option)
9-22mm Varifocal 2M Pixels Lens

Feature:

• Camera CCD      Sony Color CCD or IT CCD Option
• Resolution        700TVL High Resolution (650/600/540/480/420TVL option)
• Infrared LED        4pcs Xφ42 Leds
• IR Distance        100-200meters
• Mini. Illumination    0 Lux (IR LED on)
• Lens            9-22mm Varifocal 2M Pixels Lens
• Optional Color     White/Black
• Voltage          DC12V or AV24V/DC12V optional



Specifications:

Model NO.	ES500-MR-6717N	ES500-MR-7517N	ES500-MR-7717N
VIDEO
Image Device	1/3" Sony Super HAD II CCD
TV System	PAL/NTSC
Effective Pixels	PAL:500 (H)*582(V);NTSC:510(H)*494(V)		PAL:976(H)*582(V);NTSC:976(H)*494(V)
Scanning System	2:1 Interlace
Synchronization	Internal
Horizontal Resolution	540TVL	600TVL	700TVL
Min. Illumination	0 Lux (LED on)
S/N Ratio	>48dB
Video Output	1Vp-p,75ohm, BNC
LENS
Lens Type	9-22mm Varifocal 2M Pixels Lens
OPERATIONAL
BLC	Auto
Gain Control	Auto
Gamma Correction	>0.45
E-Shutter	PAL:1/50 ~ 1/100,000sec; NTSC:1/60 ~ 1/100,000sec
Infrared LED	4pcs x φ42 Leds
IR Distance	100-200 Meters
ENVIRONMENTAL
Operation Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
ELECTRICAL
Input Voltage/ Current	DC12V,1000mA or AC24V / DC 12V optional
Adapter Requirement	DC12V1.5A
MECHANICAL
Color	White/Black
Dimensions	220x105x100mm

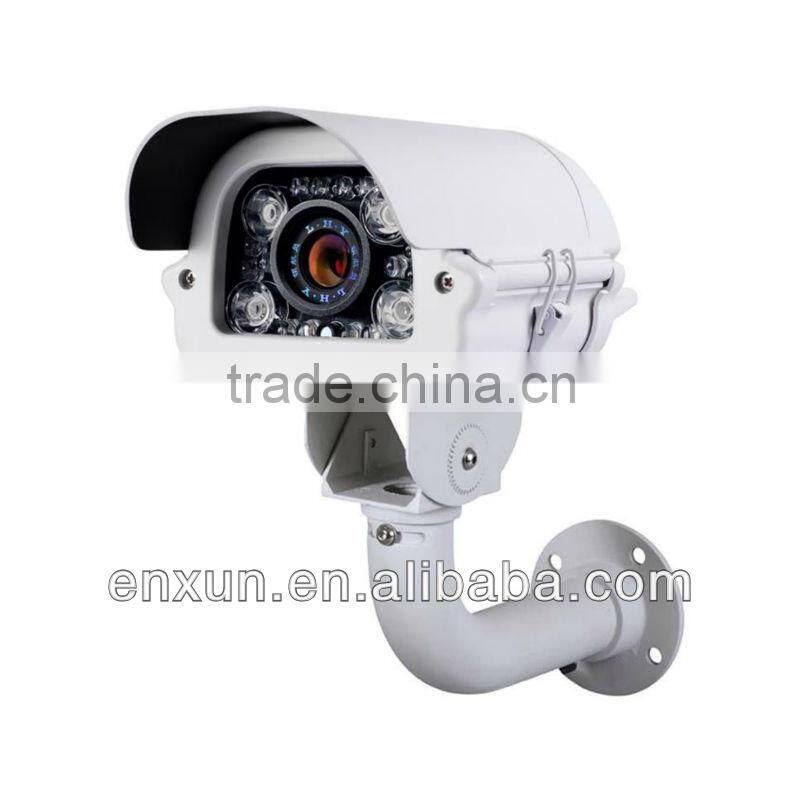

Products photo:

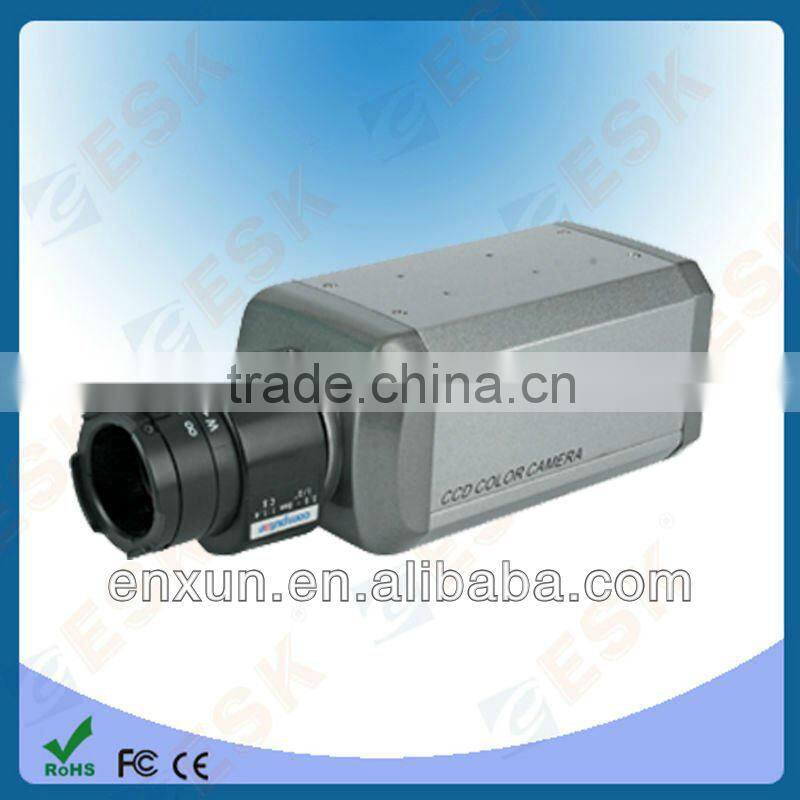

Other similar products:
