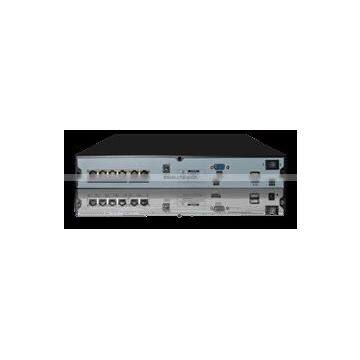

8CH 1080P Network Video Recorder IP Camera NVR
Features:
| Model | EN-2809POE |
| Video & audio input | |
| Network video input | 9CH |
| Video & audio output | |
| HDMI output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| CVBS output | 1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video & audio code and decode parameters | |
| Record resolution | D1/HD1/CIF/720P/960P/1080P |
| Playback resolution | 720P 100/120FPS 1080P 50/64FPS |
| Motion detection | setup this function on NVR, not rely on IP camera |
| Synchronously playback channels | 1/4CH |
| Record management | |
| Record & Snapshot mode | manual recording, regular recording, motion recording, alarm recording, events recording |
| Playback mode | regular playback,alarm playback,motion detection playback,events playback |
| Backup mode | regular backup, events backup, manual backup |
| Hard driver | |
| Mode | 2*SATA |
| HDD capacity | each port support max 4TB HDD |
| External port | |
| Voice intercom | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Internet port | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| USB port | 2*USB2.0 |
| Alarm input | NO |
| Alarm output | NO |
| Network Management | |
| Network protocol | NTP,SMTP,PPPoE,DDNS,FTP,ARSP,WIFI,3G |
| Other | |
| Power supply | DC12V(NVR) DC48V(POE) |
| Power consumtion(without HDD) | ≤26W |
| Work temperature | -10℃--+55℃ |
| Work humidity | 10%--90% |
| Case | 1U |
| Size(W*L*H(cm)) | 335*255*50mm |
| Net weight(without HDD) | 1.55kg |
| Gross weight(without HDD) | 2.42kg |
| Color box size(L*W*H(cm)) | 39*30*11cm |
| Packing(pcs/carton) | 5 |
| Carton size (L*W*H(cm)) | 57*40.7*32.6cm |
| Gross weight(kg) | 13kg |
